9. DRIVE AND DRIVEN PULLEYS/
KICK STARTER
9-3
SUPER8 50

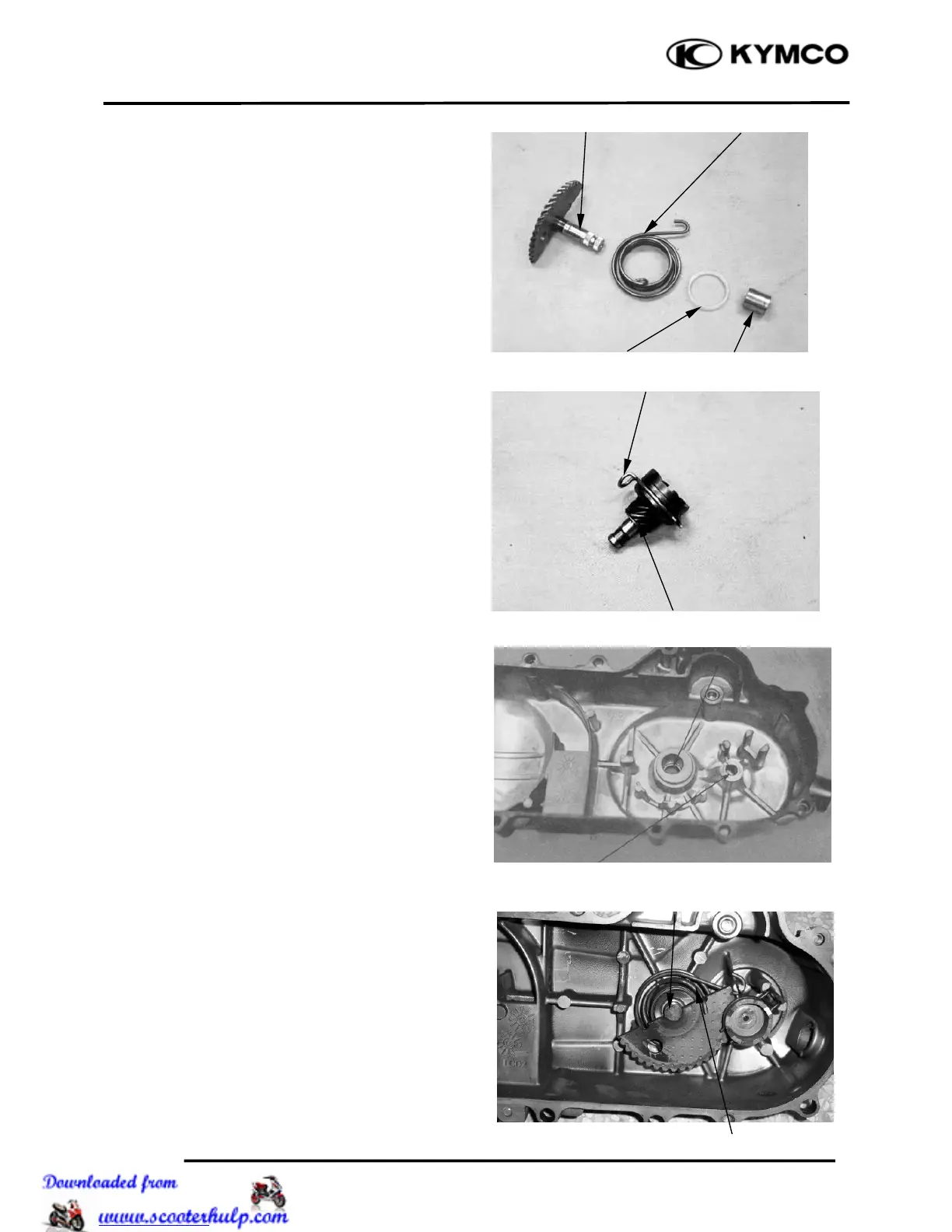

INSPECTION
Inspect the kick starter spindle and gear for
wear or damage.
Inspect the return spring for weakness or
damage.
Inspect the kick starter spindle bushings for
wear or damage.
Inspect the starter driven gear for wear or
damage.
Inspect the friction spring for wear or
damage.
Inspect the kick starter spindle and starter
driven gear forcing parts for wear or damage.
INSTALLATION
Install the kick starter spindle bushings and
return spring onto the left crankcase cover.
Starter Driven Gear Shaft Forcin
g
Par
t
Friction Spring
Starter Driven Gea
r
Spindle
Return Spring
Plastic Bushing
Spindle Bushing
Kick Starter Spindle Forcing Par
t
Kick Starter S
p
indle
Return S
p
rin
g
