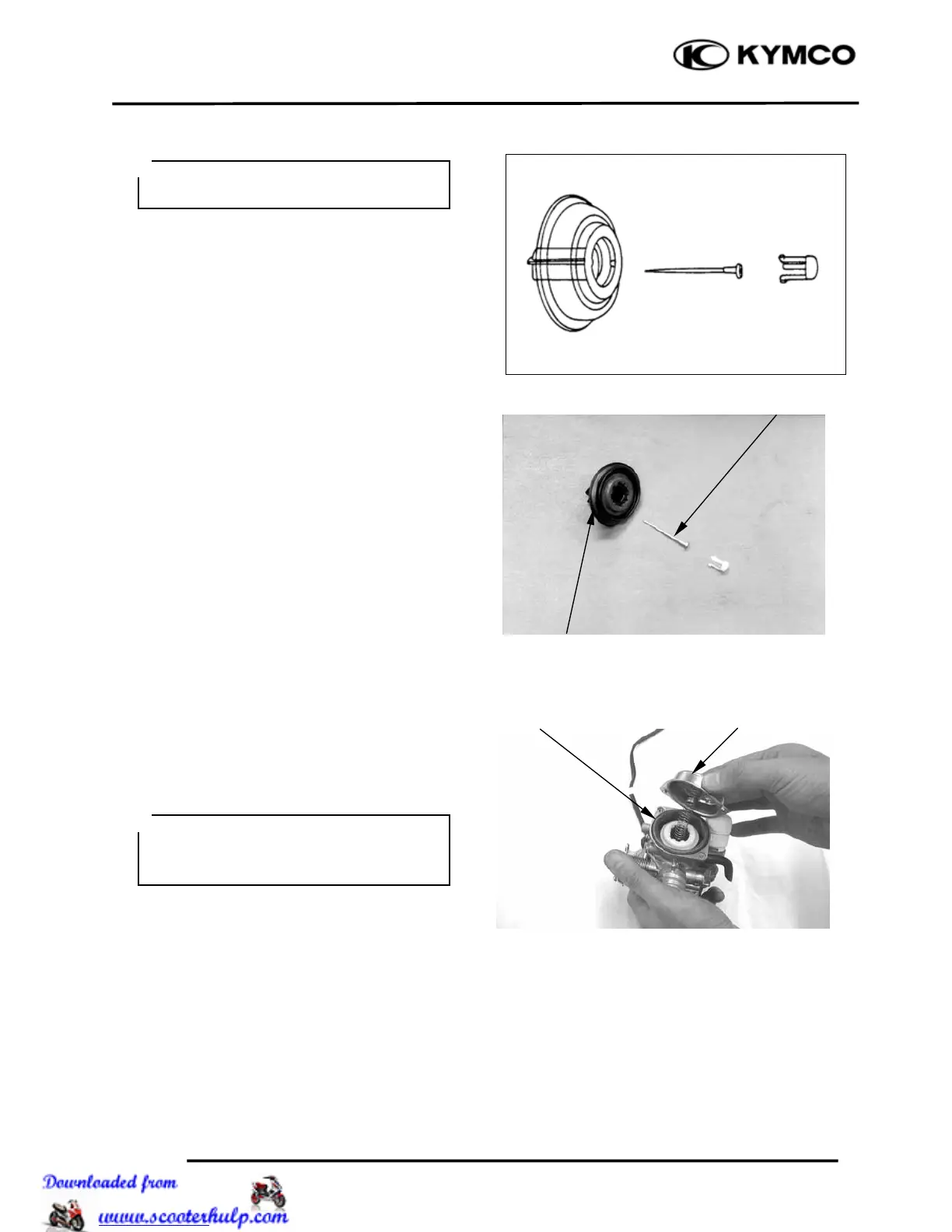

5. FUEL SYSTEM
5-7
SUPER8 50
Remove the needle holder and jet needle.
INSPECTION
Inspect the needle for stepped wear.
Inspect the vacuum piston for wear or
damage.
Inspect the diaphragm for deterioration and
tears.
ASSEMBLY
Install the vacuum piston/diaphragm in the
carburetor body.
Install the spring and then install the
vacuum chamber cover.
Tighten the two screws.
Vacuum Chamber Cove
r
Vacuum Diaphrag
m
Jet Needle
Vacuum Diaphrag
m
Be careful not to damage the vacuu
m
diaphragm.
＊
• Be careful not to damage the diaphragm.
• Hold the vacuum piston while
tightening the vacuum chamber cover.
＊
