MULTIFUNCTION METER
Your UXV500 is equipped with a multifunction meter on its
dashboard that includes speedometer, odometer, indicator
lamps and other operational information and alerts. The multi-
function meter becomes active when the ignition switch is in
the ON position.
Indicator Lights
Indicator lights will provide you information about the opera-
tional status of several of the vehicles features and controls.
FEATURES & CONTROLS
5 High Gear
6 Low Gear
7 High Temperature Warning
8 High Beam
1 Differential Lock
2 Parking Brake
3 Reverse Gear
4 Neutral

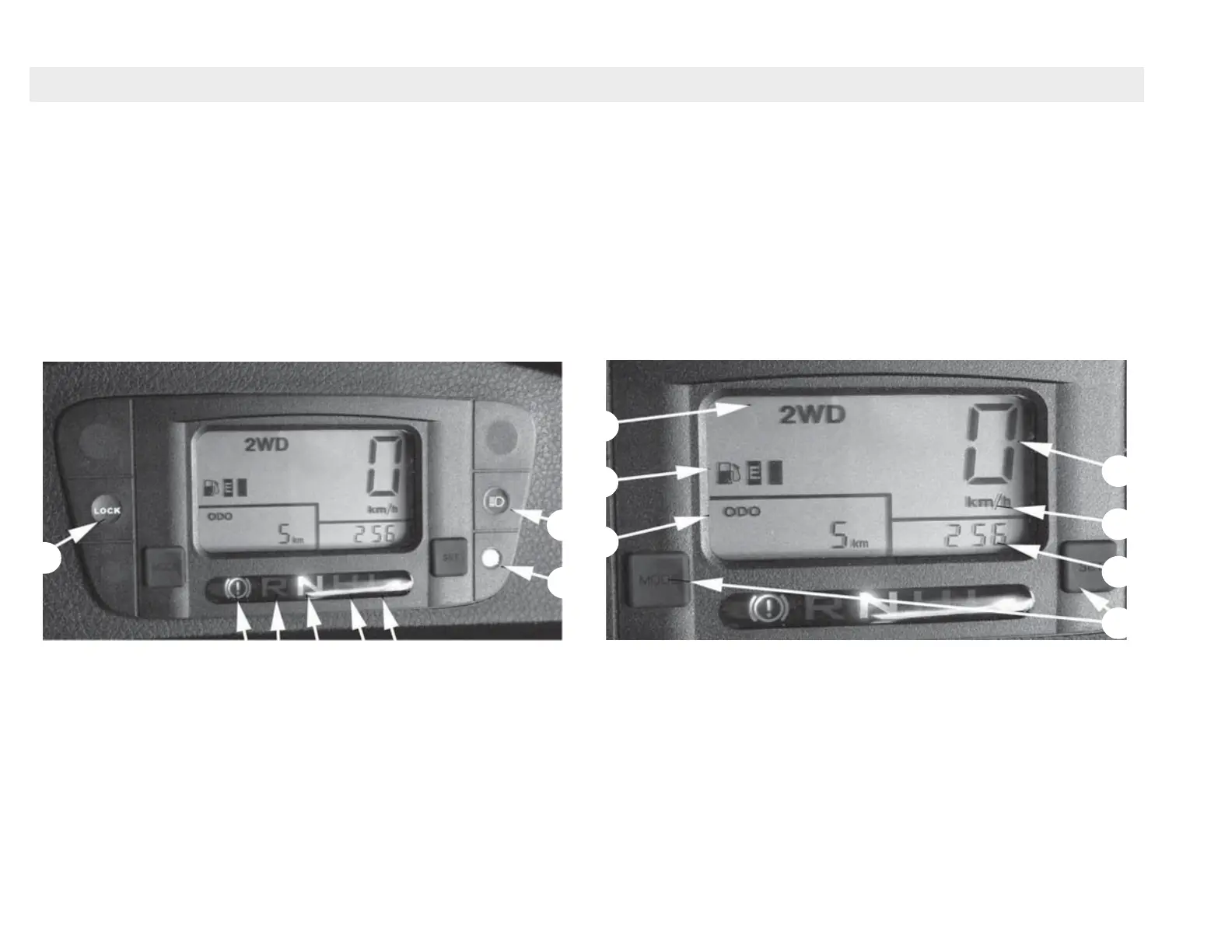

LCD Indicator Icons & Meter Buttons
The Liquid Crystal Display (LCD) portion of the multifunction
meter provides the driver with information such as vehicle
speed, total miles operated, trip mileage, fuel level, time and
drive mode.
There are two buttons that control other functions of the multi-
function meter: the MODE and SET buttons. These buttons
allow programming of certain multifunction meter features, such
as the clock.
99
99
9
ATAT
ATAT
AT
AKAK
AKAK
AK
ALAL
ALAL
AL
AMAM
AMAM
AM
ANAN
ANAN
AN
AOAO
AOAO
AO
11
11
1
22
22
2
33
33
3
44
44
4
55
55
5
66
66
6
77
77
7
88
88
8
9 2WD/4WD Indicator
AT Fuel Level Indicator
AK Odometer/Tripmeter
AL Speedometer
AM MPH or Km/H display
AN Clock
AO MODE & SET Buttons
