15. REAR WHEEL/REAR BRAKE/REAR
SHOCK ABSORBER
15-5
V
ITALITY 50

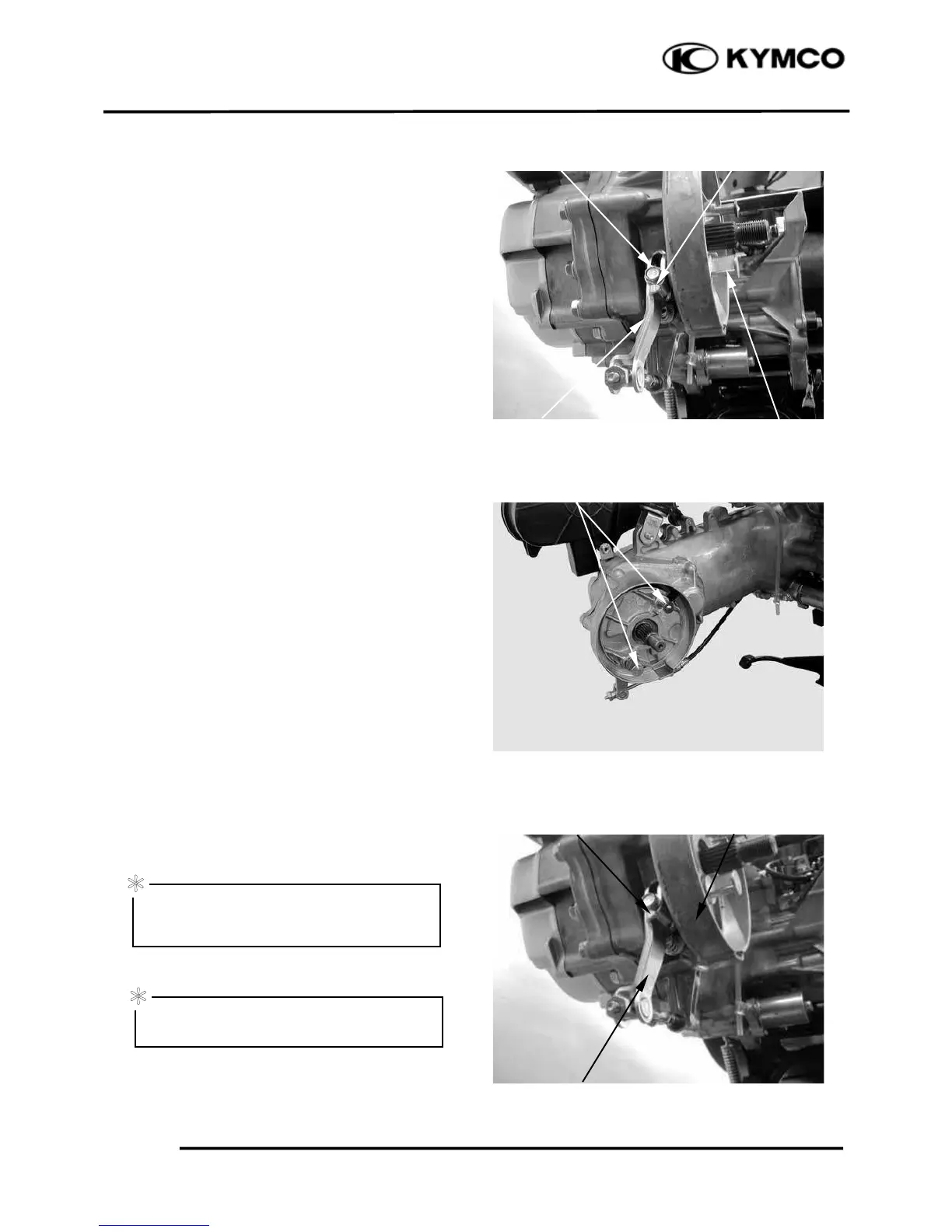

Remove the brake cam bolt to remove the
brake arm, wear indicator plate and felt
seal.
Remove the brake arm.
REAR BRAKE ASSEMBLY
Apply grease to the anchor pin and brake
shoe moving parts.
Apply grease to the brake cam and install it.
Apply engine oil to the felt seal and install
it to the brake cam.
Install the wear indicator plate.
Install the brake arm onto the brake cam.
Install and tighten the brake arm bolt.
Install the brake arm return spring.
Install the brake shoes.
Align the wide tooth of the wea
r
indicator plate with the wide groove on
the brake cam.
Ϡ
Brake Arm Bol
t
Wear Indicator Plate
Brake Ar
m
Brake Ca
m
Grease
Brake Ar
m
Punch Mark
Wear Indicator Plate
Align the punch mark on the brake arm
with the scribed line on the brake cam.
Ϡ
