KYMCO Vitality 50 User Manual

17. INSTRUMENT/SWITCHES/LIGHTS
17
-
2
VITALITY
50

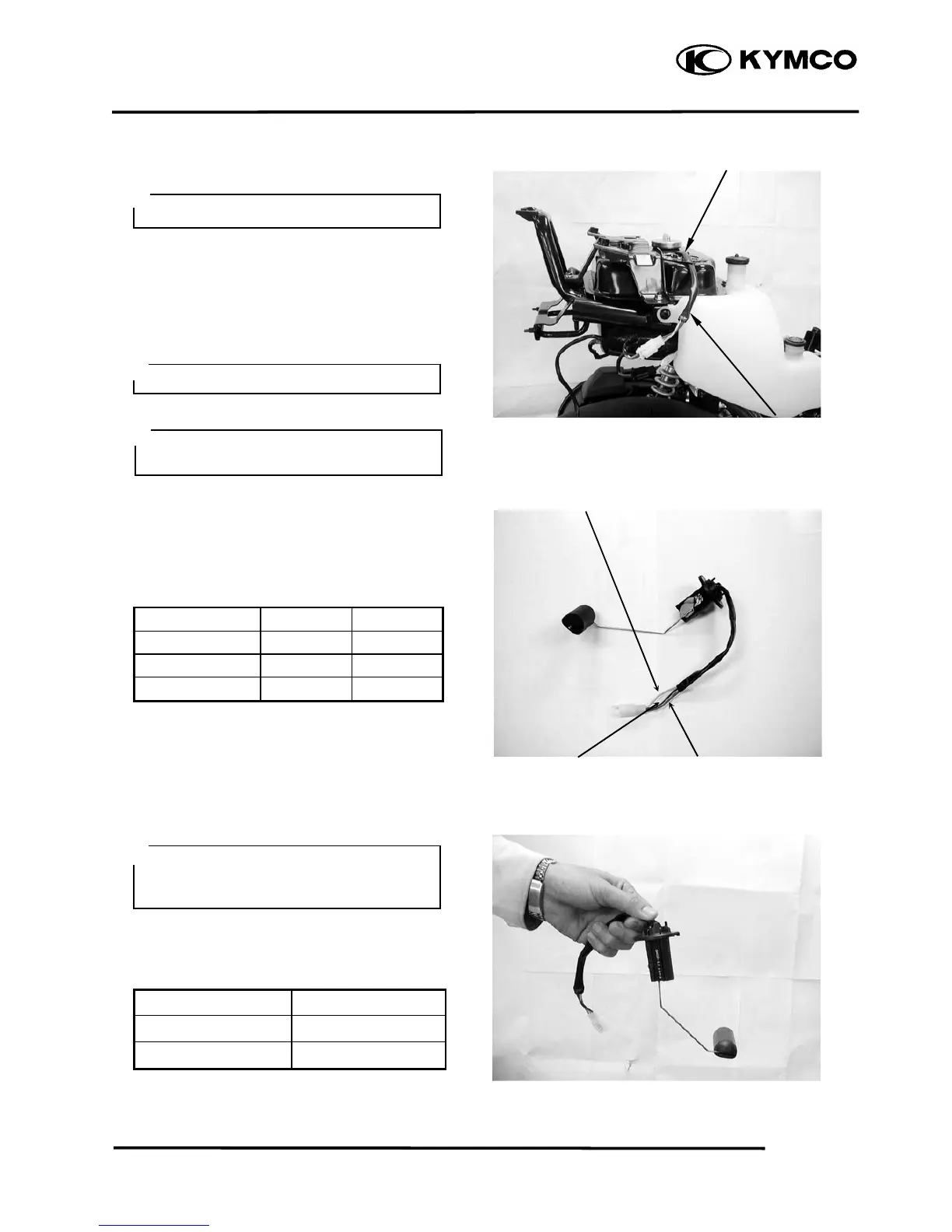

FUEL UNIT
REMOVAL
Remove the met-in box. (

13-5)
Disconnect the fuel unit wire connectors.
Remove the three bolts attaching from the
fuel unit retainer .
Remove the fuel unit.
INSPECTION
Remove the fuel unit.
Measure the resistance between the fuel
unit wire terminals with the float at upper
and lower positions.
Wire Terminals
Upper Lower
G～Y/W 36Ω 686Ω
G～L/W 566Ω 53Ω
Y/W～L/W 600Ω 600Ω
FUEL GAUGE INSPECTION
Connect the fuel unit wire connectors and
turn the ignition switch “ON”.
Check the fuel gauge needle for correct
indication by moving the fuel unit float up
and down.
Float Position Needle Position
Upper “F” (Full)
Lower “E” (Empty)
No Smoking!

Before performing the following test,
operate the turn signals to
determine that
the battery circuit is normal.

Fuel Unit
Wire
Fuel Unit
G
L/W
Y/W
Be careful not to bend or damage the
fuel unit float arm.

Do not damage the fuel unit wire.


KYMCO Vitality 50 Specifications

General

Displacement	49 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	CVT automatic
Front Suspension	Telescopic fork
Rear Suspension	Single shock
Front Brake	Disc
Rear Brake	Drum
Ignition	CDI
Front Tire	120/70-12
Rear Tire	130/70-12
Wheelbase	1, 280 mm
Fuel Capacity	5 liters
Starting System	Electric & Kick
Engine Type	2-stroke, single-cylinder
