2P7/2R0/3PN

1-5-88

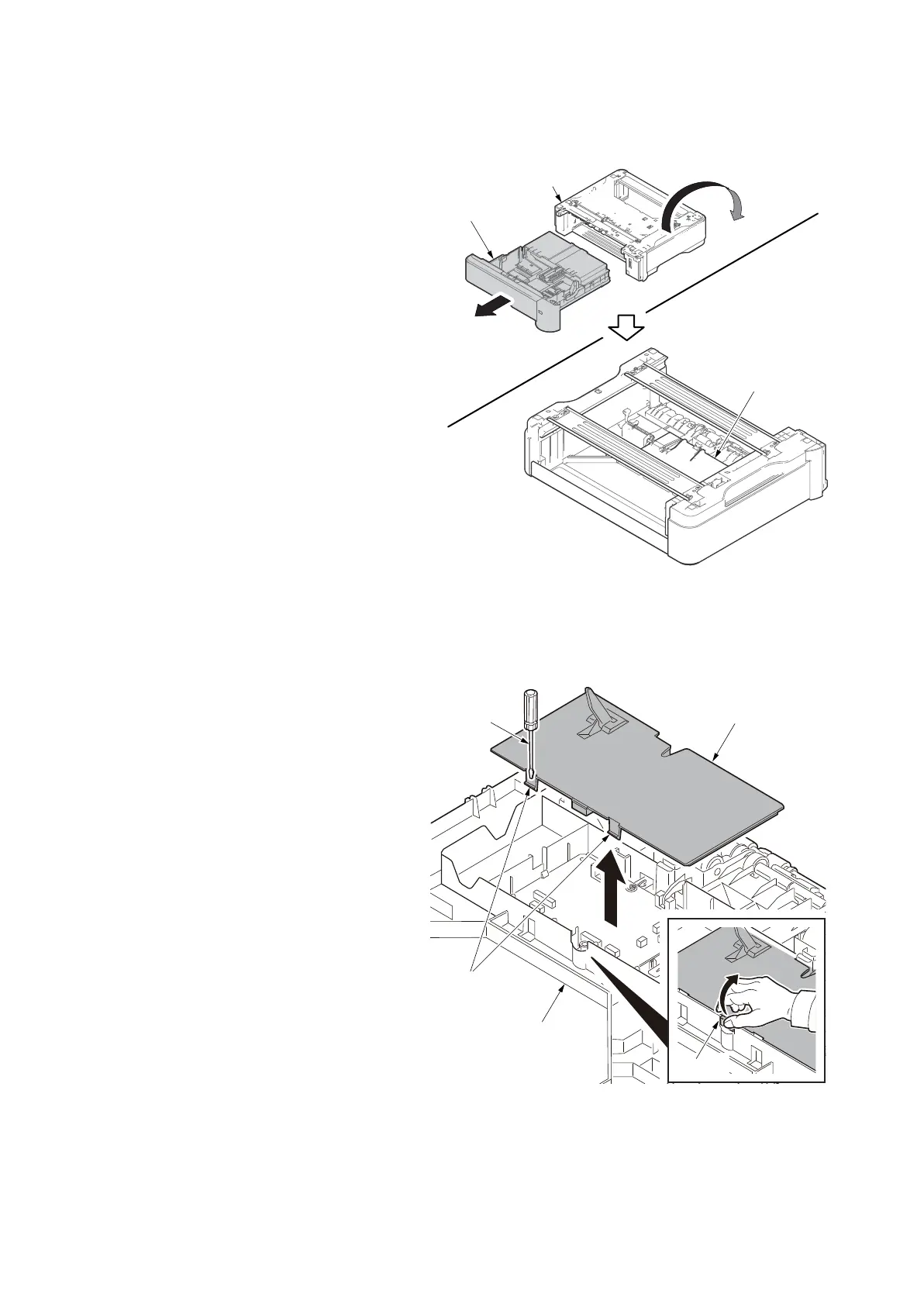

(3) Detaching and refitting the drive unit and PF main PWB

Procedure

1. Pull the cassette out.

2. Turn over the PF unit.

Figure 1-5-160

3. Release two hooks using the flat screw

driver.

4. Remove the PWB cover by pulling the

knob up.

Figure 1-5-161

Cassette

PWB cover

PF UNIT

PWB cover

Knob

Hooks

Upper cover

Flatscrew

driver

Service Manual1
