Kyocera ECOSYS FS-2100D Service Manual

2P7/2R0/3PN-2
2-1-11

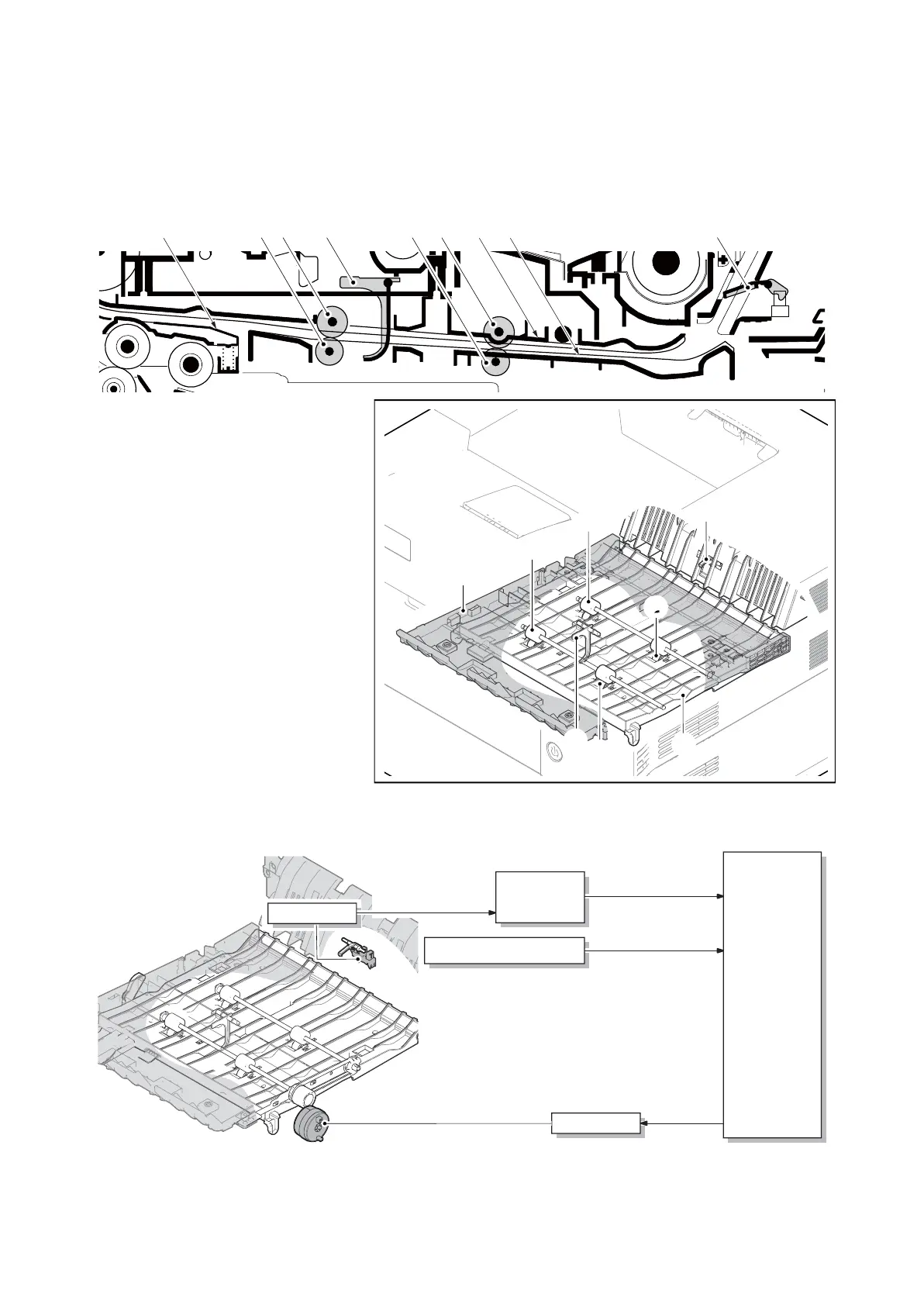

2-1-8 Duplex conveying section
The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift
section to the paper feed/conveying section when duplex printing.
Figure 2-1-21
Figure 2-1-22
1
1
2
2
6
5
4
3
127 5 6124 3
1. DU conveying roller
2. DU conveying pulley
3. Actuater
(Duplex sensor 1 (DUS1))
4. Actuater
(Duplex sensor 2 (DUS2))
5. DU base
6. DU lower guide
7. Upper feed guide
DUCLN
DUJAMSEN1N
DUCL
DUJAMSEN1N
YC9-3
R-LPWB
DUS1
DUJAMSEN2N
HVPWB
DUS2
YC5-10
YC2-20
EPWB
YC19-13
