Kyocera TASKalfa 5500i User Manual

Troubleshooting
12-21
12
Clearing Paper Jams
If a paper jam occurs, the touch panel will display Paper
Jam. and the machine will stop. Refer to these
procedures to remove the jammed paper.

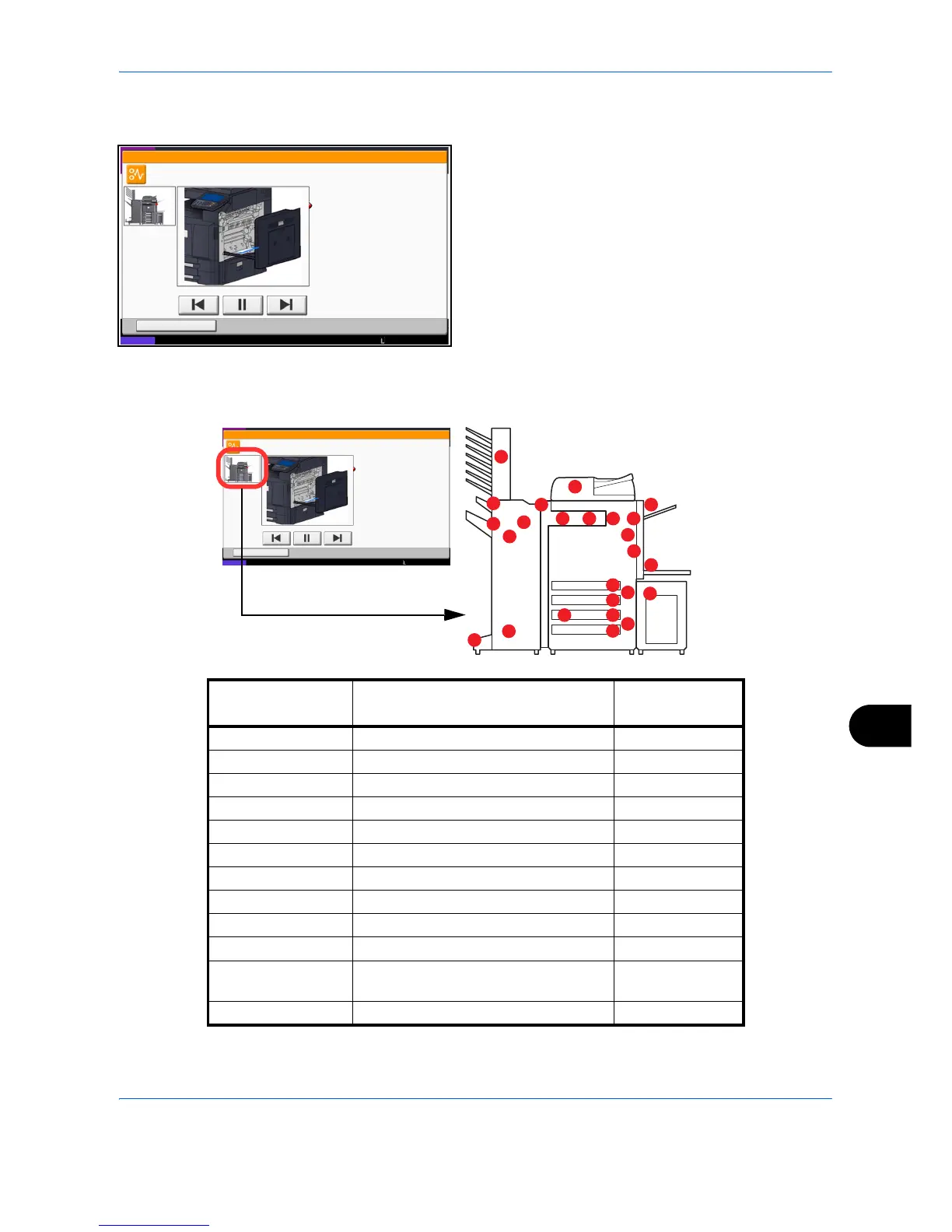

Jam Location Indicators
If a paper jam occurs, the location of the jam will be displayed as the following figure with a letter corresponding
to the affected component in the machine. Clearing instructions will also be displayed.
10/10/2010 10:10
Hold
JAM
Paper jam.
02/04
1. Remove the paper from
the paper ejector.
2. Open main unit right cover 1 and
remove the paper.
Remove the paper from
the multi purpose tray.
3. Open fuser cover (A1) and
remove the paper.
4. Close the cover.
Status
10/10/2010 10:10
Hold
JAM
Paper jam.
02/04
1. Remove the paper from
the paper ejector.
2. Open main unit right cover 1 and
remove the paper.
Remove the paper from
the multi purpose tray.
3. Open fuser cover (A1) and
remove the paper.
4. Close the cover.
Status
L
A
D
I
F
K
K
H
K
K
IJ G
K
K
K
K
B
C
E
E
E
G
C
C
Paper Jam
Location Indicator
Paper Jam Location Reference Page
A Cassette 1 12-22
B Cassette 2 12-23
C Cassette 3 or 4 (Option) 12-24
D Multi Purpose Tray 12-28
E Inside the right cover 1, 3 or 4 12-29
F Duplex unit 12-31
G Fixing unit 12-34
H Document processor (Option) 12-35
I Job Sparator (Option) 12-37
J Bridge Unit 12-39
K Document finisher (Option) 12-40
12-41
L Cassette 5 (Option) 12-48

Kyocera TASKalfa 5500i Specifications

General

Network ready	Yes
Fax compatibility	ITU-T G3
Dimensions (WxDxH)	668 x 767 x 747 mm
All-in-one functions	Copy, Fax, Print, Scan
Connectivity technology	Wired
Color all-in-one functions	Scan
DVD/CD printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	4.3 s
Print speed (black, normal quality, A3)	27 ppm
Print speed (black, normal quality, A4/US Letter)	55 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Number of print cartridges	1
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PCL XL, PostScript 3
Copier resize	25 - 400 %
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Scan to	E-mail, FTP, OCR, USB
Grayscale levels	256
Maximum scan area	A3 (297 x 420) mm
Scan speed (black)	160 ppm
Scan speed (color)	80 ppm
Image formats supported	JPG, TIF
Faxing	Mono faxing
Fax memory	120 MB
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Fax transmission speed	3 sec/page
Paper input type	Paper tray
Total input capacity	1150 sheets
Total output capacity	250 sheets
Maximum input capacity	7150 sheets
Total number of input trays	3
Multi-Purpose tray input capacity	150 sheets
Maximum print size	297 x 420 mm
Duplex media weight	60 - 256 g/m²
Paper tray media types	Plain paper
Paper tray media weight	60 - 220 g/m²
ISO A-series sizes (A0...A9)	A3, A4
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 300 g/m²
Display	LCD
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	2
Processor model	750CL
Processor family	PowerPC
Compatible memory cards	CF
Internal storage capacity	160 GB
Sound power level (standby)	58 dB
Sound pressure level (printing)	75 dB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	170 W
Power consumption (PowerSave)	16 W
Power consumption (average operating)	960 W
Sustainability certificates	ENERGY STAR
Certification	GS, TÜV, CE, RoHS
