Operator's Manual – Stacker Vendor
©
LAI GAMES
Page 42
INSTRUCTIONS TO FIT 90º T-HANDLE LOCK
TO NEW TYPE COIN DOORS
This document is to instruct in the fitting of a 90º T-Handle Lock
to the new type coin doors for Lighthouse and Stacker Vendor.
How to Identify the New type Coin Doors

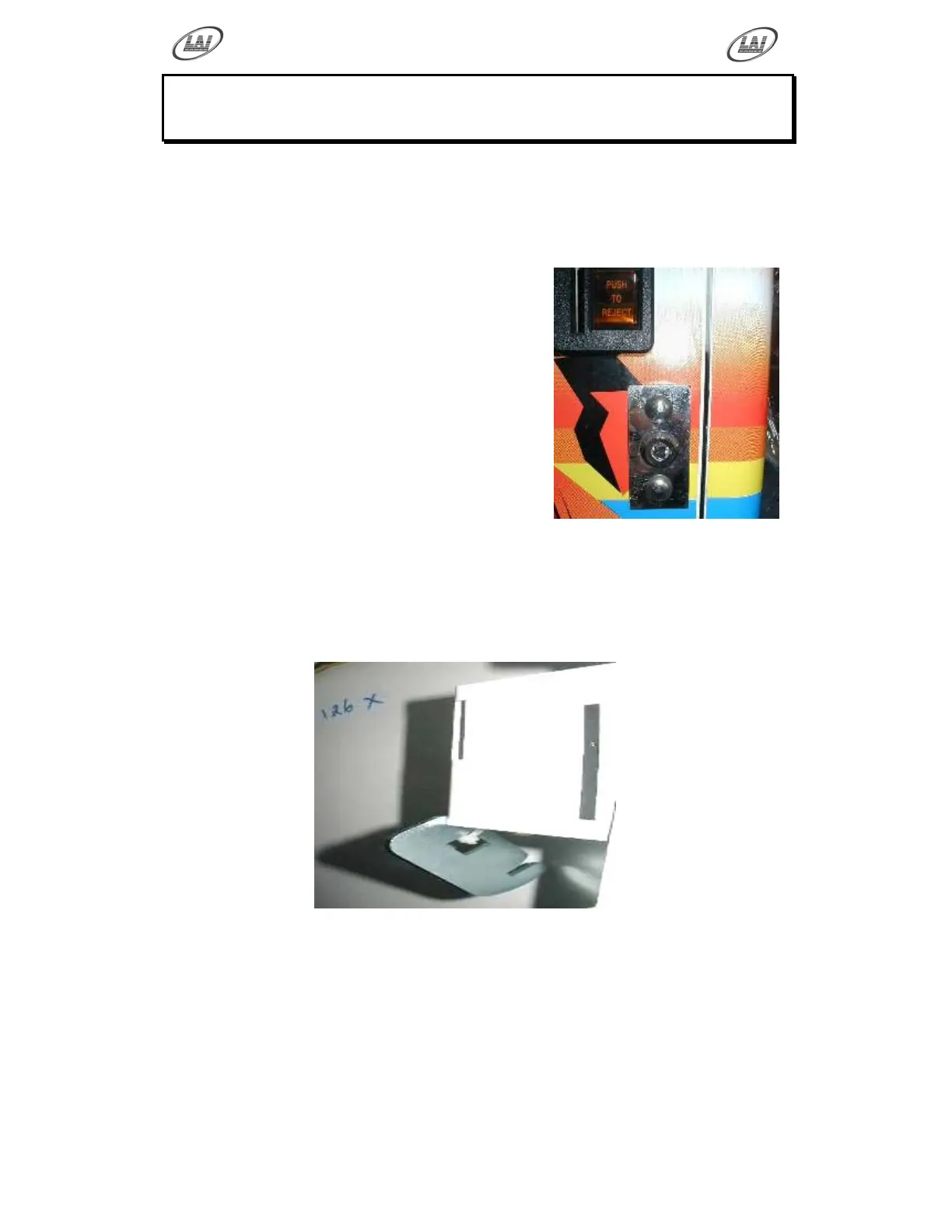

The new type coin doors can be
identified by additions both to the
door and to the door frame.
The Door will have an external
stainless steel plate with two coach
bolts as in the photo to the right.
This plate covers the T-Handle hole
and provides the two coach bolts for
mounting it.
The photo on the left shows the new lock points on the door frame.
Take note of the T-Handle Lock Cam hanging from the lock point
metal. If this is missing you will need to order a replacement from
your LAI GAMES distributor before fitting a T-Handle Lock.
You will only be able to fit T-Handle Locks to
machines with these new types of Coin Doors &
Frames.
Machines with older door types are unable to use T-
Handle Locks.
