LAUNCH X-431 PRO MINI User Manual
16
Software Upgrade
To update vehicle diagnostic software.
Maintenance Help
Includes How-to Videos, operation skills and user
manual etc.
Personal Cente
Allows you to configure system settings and manage
your personal information.
4.3 Connections
4.3.1 Preparation
Normal testing conditions
y
Turn on the vehicle power supply.
y
Vehicle battery voltage range should be 9-14 Volts.
y
Throttle should be in a closed position.
Select the VCI module
If X-431 PRO MINI is testing vehicles equipped with universal OBD II 16 PIN
diagnostic socket, please use the included VCI module. (For vehicles with
non-OBD II 16 PIN diagnostic socket, a non-16 PIN connector is required.)

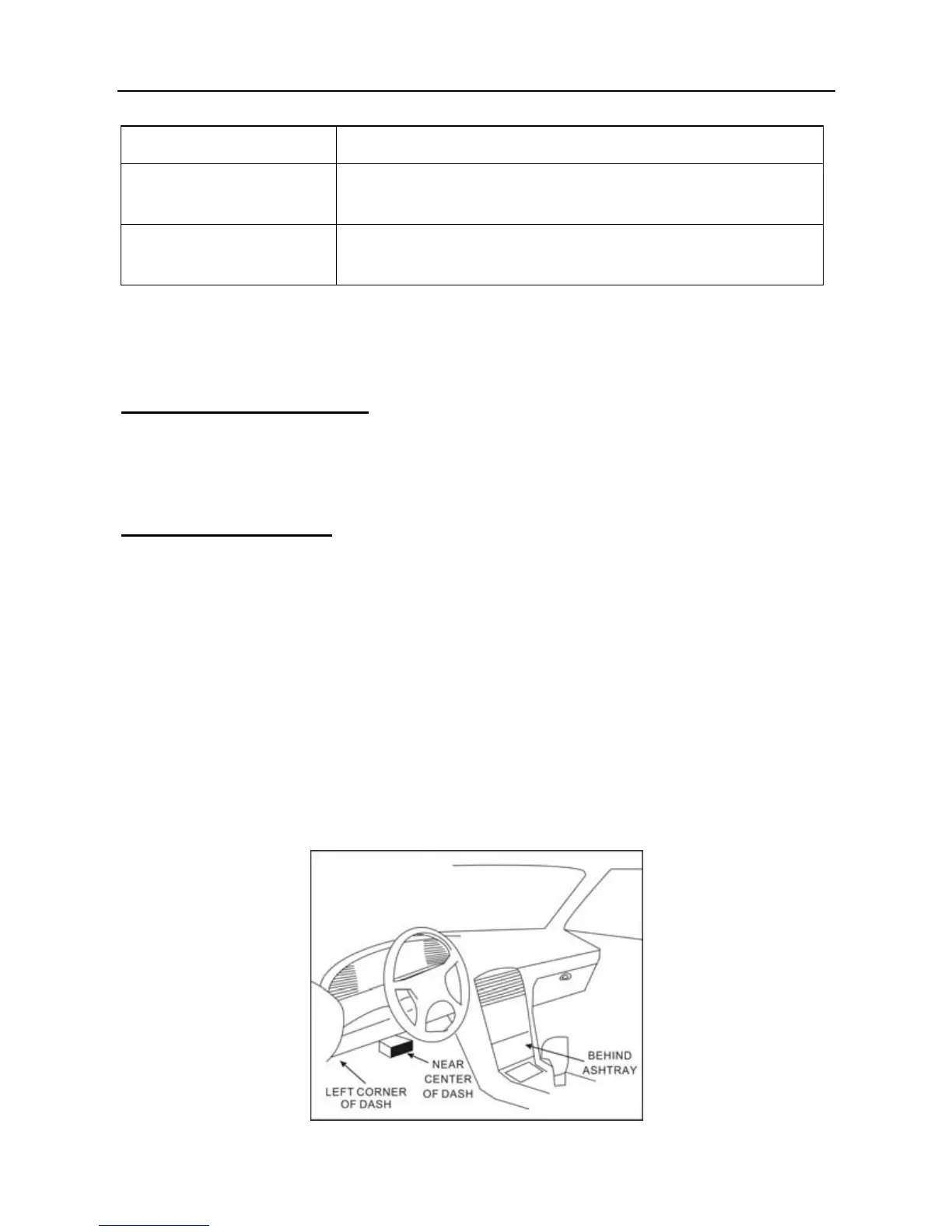

4.3.2 DLC location
The DLC (Data Link Connector) is typically a standard 16-pin connector where
diagnostic tools interface with a vehicle’s on-board control modules. The DLC is
usually located 12 inches from the center of the instrument panel, under or
around the driver’s side for most vehicles. If DLC is not located under dashboard,
a label should be there telling location. For some Asian and European vehicles,
the DLC is located behind the ashtray and the ashtray must be removed to
access the connector. If the DLC cannot be found, refer to the vehicle’s service
manual.
