LEM SWING16 User Manual

4

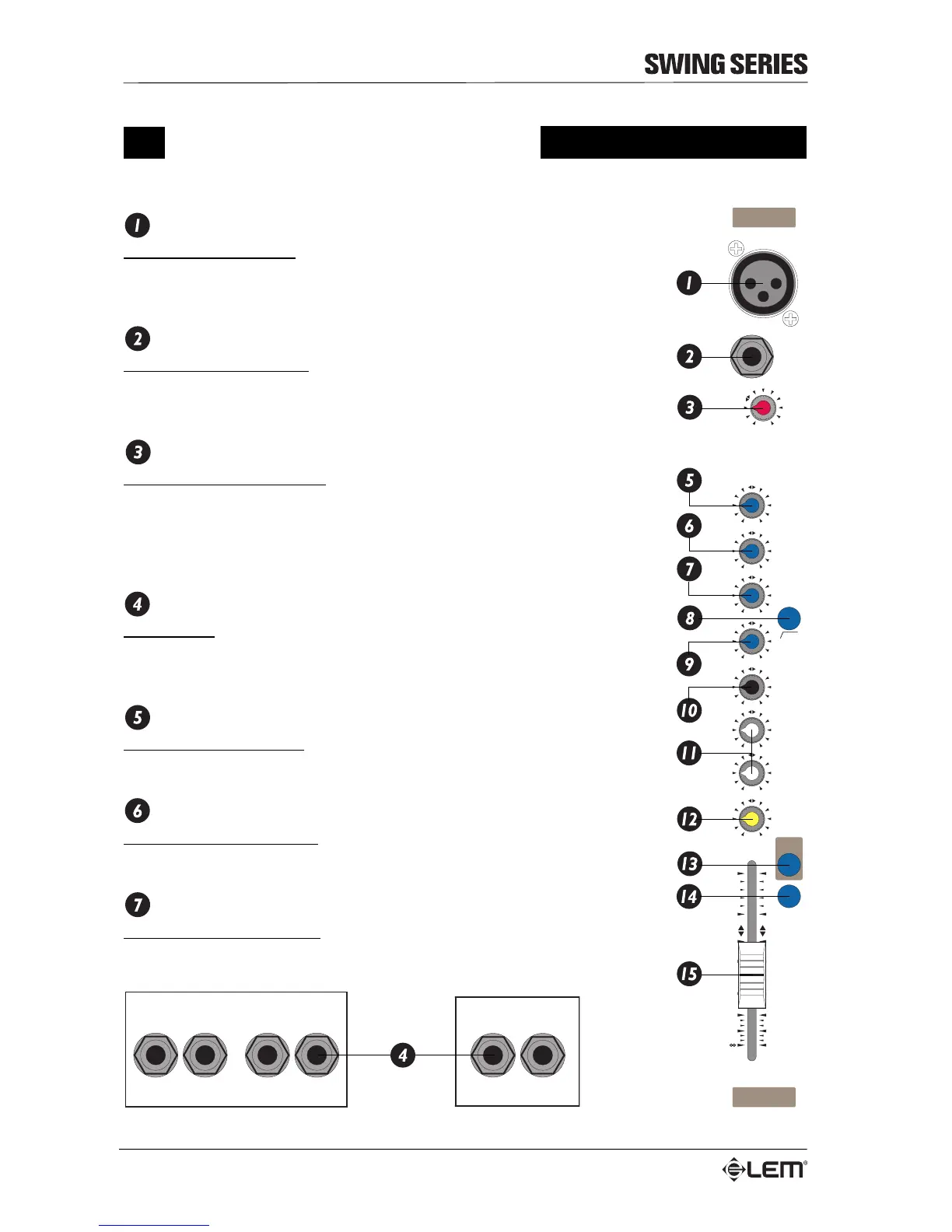

MONO input channel
MIC INPUT
Balanced XLR connector: receives the microphone input signal on the channel.
This input is for use with microphones, but can also accept a wide range of
balanced or unbalanced low impedance signals.
LINE INPUT
Balanced JACK connector: receives the line input signal on the channel. This
input can receive balanced or unbalanced high-impedance signals from
equipment with a high-level output (all instruments excluding microphones).
CHANNEL INSERT
STEREO JACK connectors: allow to use an external device (equalizer,
compressor, etc.) to process the signal of the channels 1-2 of the SWING 12
and the channels 1-4 of the SWING 16. The INSERT connectors are placed on
the rear panel of the mixer and they have the signal SEND on the JACK TIP
and the signal RETURN on the JACK RING (see CONNECTOR CABLES).
GAIN
Gain control: regulates the amplification of external signals (microphones,
instruments, etc.) fed into the channel. The range for the MIC input is -10/-60
dB, while the range for the LINE input is +10/-40 dB.
HIGH
HIGH frequency control: gives a 15dB boost or cut at 12 kHz with a
“SHELVING” curve.
HI-MID
HI-MID frequency control: gives 12dB boost or cut at 3 kHz with a
“PEAKING” curve.
LO-MID
LO-MID frequency control: gives 12dB boost or cut at 800 Hz with a
“PEAKING” curve.
MONO input channel
3 kHz
HI-MID
800 Hz
LO-MID
LO-CUT
80 Hz
LOW
PAN
MUTE
MIX B
SOLO
10
10
20
30
40
5
5
0
PRE-FADER
MONITOR
PRE-POST
AUX 1
POST-FADER
AUX 2
12 kHz
HIGH
GAIN
+15-15
+12-12
+12-12
+15-15
100
100
100
RL
-10dB
MIC
LINE
+10dB
-60dB
0dB
(LINE)
-40dB
LINE
MIC
MIC
LINE
1
1
75 Hz
CHANNEL INSERT
(TIP=SEND / RING=RETURN)
243 1
CHANNEL INSERT
(TIP=SEND / RING=RETURN)
21
