Connector cables

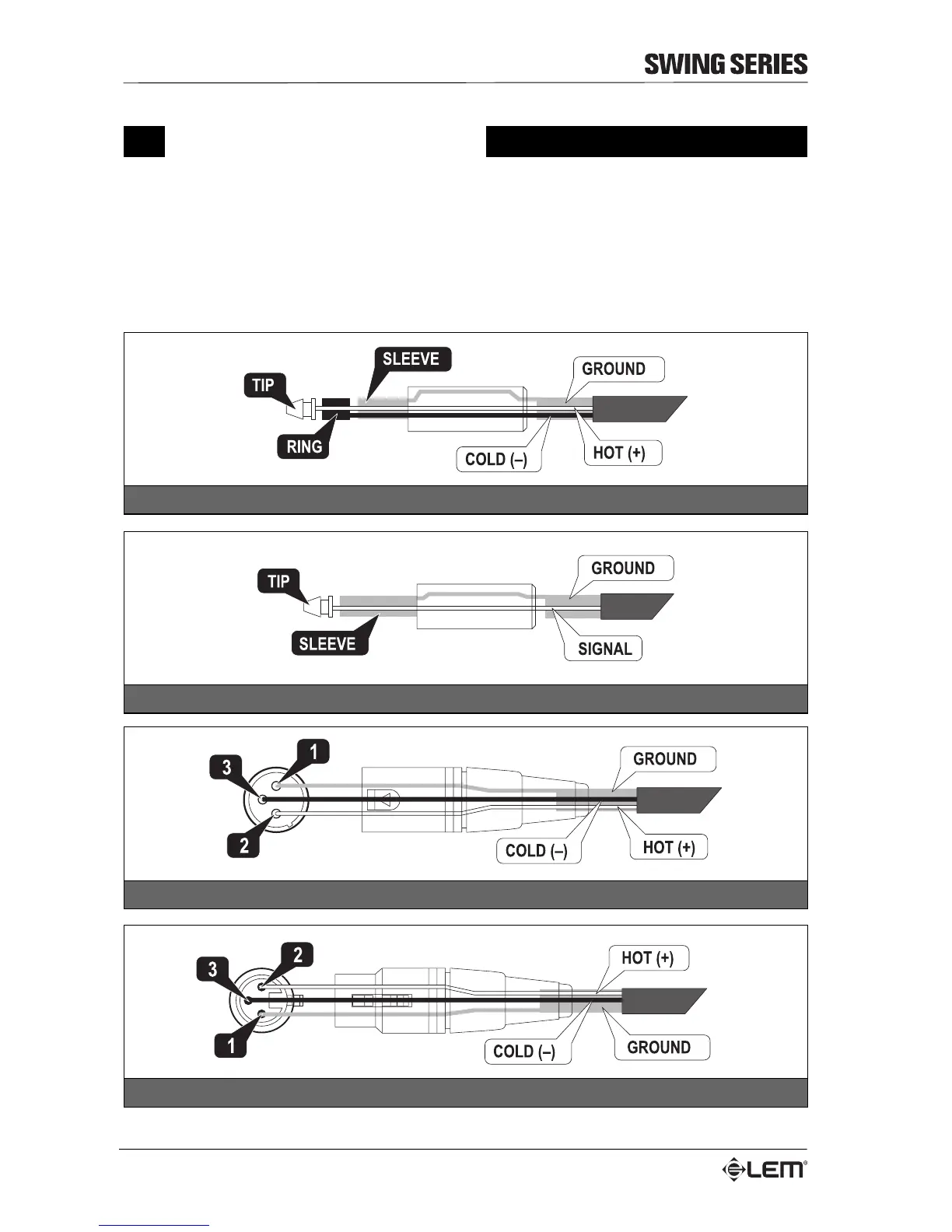

The following are wiring diagrams for the connectors used with teh SWING mixers. Take care of the connector

cables, always holding them by the connectors and avoiding pulling the wire and avoid knots and twists when

coiling them: this gives the advantage of increasing their life and reliability, which is always to your advantage.

Periodically check that your cables are in good condition and are correctly wired and that all their contacts are

perfect: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using

unsuitable or faulty cables.

UNBALANCED JACK connector

BALANCED JACK connector

BALANCED XLR-M connector

BALANCED XLR-F connector
