LEM SWING16 User Manual

10

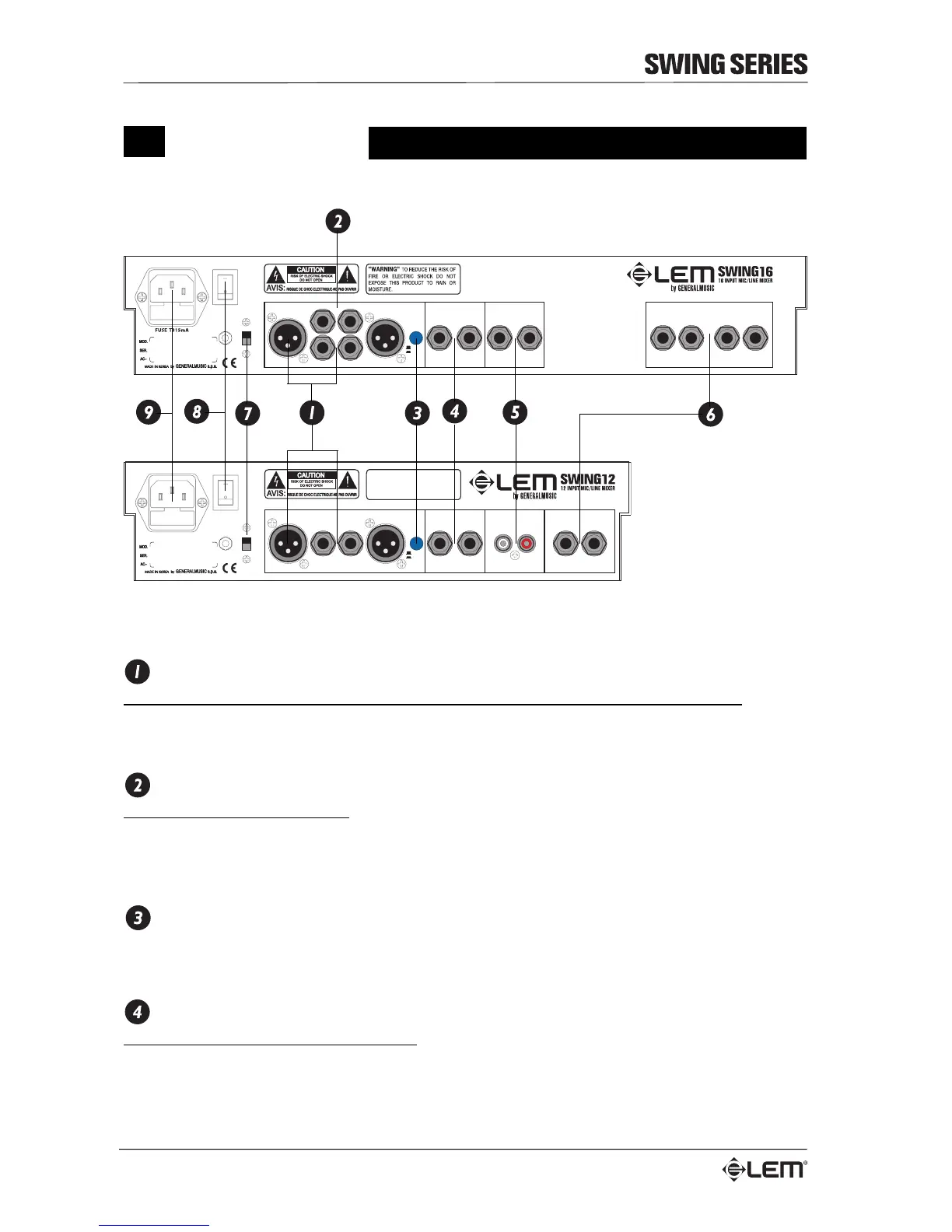

Rear panel
MIX L&R OUTPUTS
Two balanced XLR-M connectors (+4 / -26 dB) + two unbalanced JACK connectors (+4 dB): available
in two formats, these are the connectors of the mixer main outputs and send out the main program from
the MIX L&R.
MAIN INSERT LEFT & RIGHT
Two STEREO JACK connectors: allow external devices (equalizer, dynamics processors, etc.) to be
used to process the main program. The INSERT connectors require a special ‘Y’ cable to be used to
send the original signal to the external device and, once processed, to take it back to the mixer outputs
(see CONNECTOR CABLES).
MAIN OUT LEVEL
Allows to switch the MIX L&R output level (only XLR-M balanced connectors) between +4 dB (line level)
and -26 dB (mic level).
CONTROL ROOM OUTPUT
Two unbalanced JACK connectors (+4dB): send out the signal of the channel selected with the SOLO
or (when no SOLO button is pressed) the signal selected with the CR/PHONES SOURCE buttons. This
output can be used for monitoring or as an auxiliary bus.
Rear panel
MAIN OUTPUT
LEFT
MAIN OUTPUT
RIGHT
CONTROL ROOM
OUTPUT
MIX B
OUTPUT
CHANNEL INSERT
(TIP=SEND / RING=RETURN)
LEFT
LEFT LEFT
243 1
BALANCED UNBALANCED
INSERT
BALANCED
MAIN
OUT
LEVEL
RIGHT
RIGHT RIGHT
POWER
PHANTOM
ON
ON
OFF
+4dBm
MIC
MAIN OUTPUTS CONTROL ROOM
OUTPUT
MIX B
OUTPUT
CHANNEL INSERT
(TIP=SEND / RING=RETURN)
LEFT
LEFT
LEFT LEFT
21
BALANCED UNBALANCED BALANCED
RIGHT
MAIN
OUT
LEVEL
RIGHT
RIGHT RIGHT
POWER
PHANTOM
ON
ON
OFF
“WARNING“ TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK DO NOT
EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE.
+4dBm
MIC
