LEM SWING16 User Manual

6

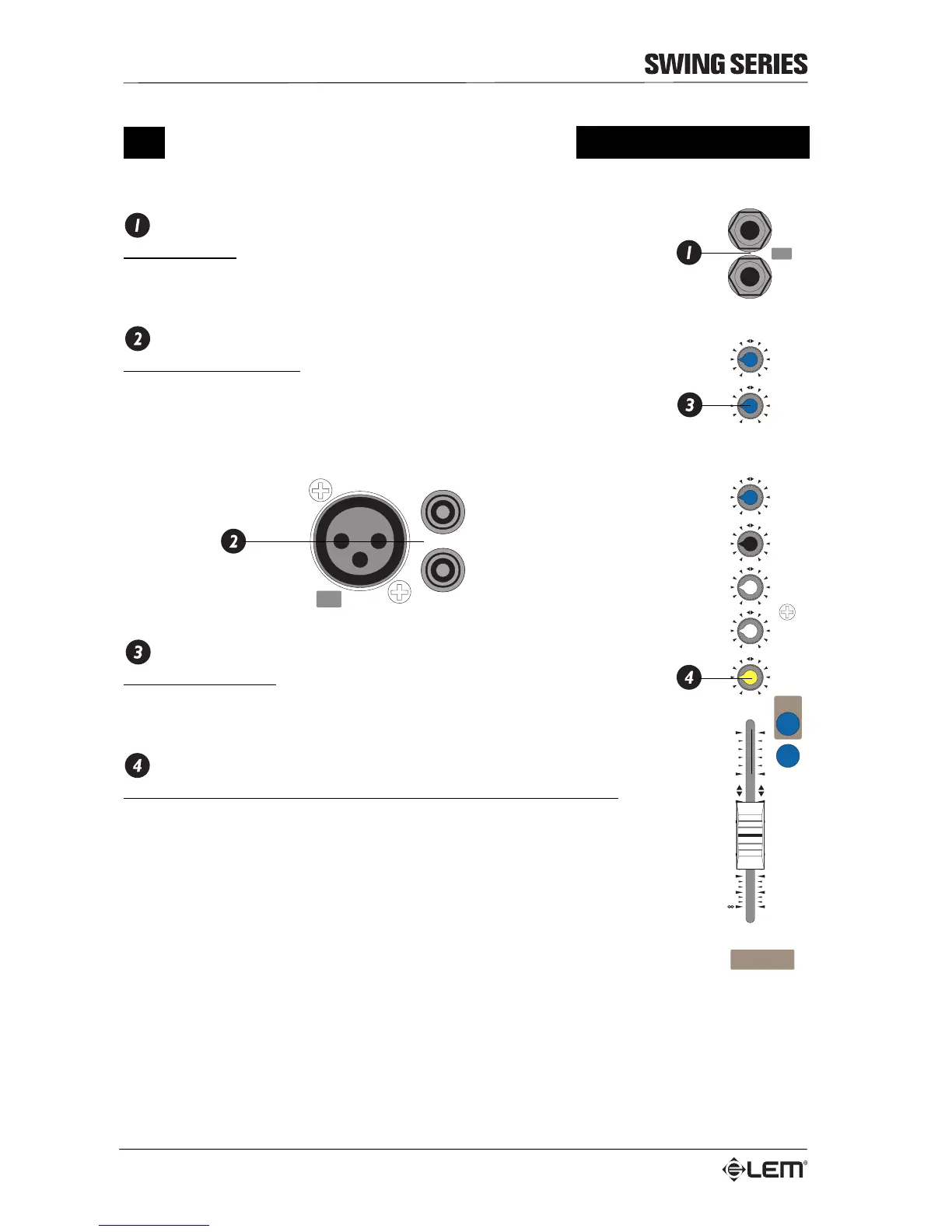

STEREO input channel
STEREO input channel
STEREO INPUT
JACK connector: receives the STEREO LINE input signal on the channel (0dB).
Inserting a single JACK connector on the LEFT socket this channel can be used
as a MONO channel.
MIC / STEREO LINE INPUT (SWING 12)
XLR-F + RCA connectors: the channel 5/6 on the SWING 12 can accept both
a STEREO LINE signal thru two RCA connectors (0 dB sensitivity) and a MONO
MIC signal thru a XLR-F connector (-50 dB sensitivity). The two signal can also
se used at the same time.
MID
MID frequency control: gives 12dB boost or cut at 2.5 kHz with a “PEAKING”
curve.
Differently from the MONO channels, the STEREO channels have a 3-band EQ.
BAL
Centre-dented control of the balance of the signal on the main outputs.
The BAL control has a balancing effect on the levels of the two LEFT & RIGHT
parts of the STEREO signal and works as follows:
• turning to the LEFT lowers the RIGHT signal level on MIX RIGHT;
• turning to the RIGHT lowers the LEFT signal on MIX LEFT.
NOTE: the remaining features of the STEREO channel are the same as in the
MONO channel.
2.5 kHz
MID
80 Hz
LOW
BAL
M
UTE
M
IX B
SO
L
O
10
10
20
30
40
5
5
0
PRE-FADER
MONITOR
PRE-POST
AUX 1
POST-FADER
AUX 2
12 kHz
HIGH
RIGHT
LEFT
(MONO)
+12-12
+15-15
100
100
100
RL
STEREO
LINE
9/10
9/10
+15-15
MIC (MONO)
RIGHT
LEFT
5/6
