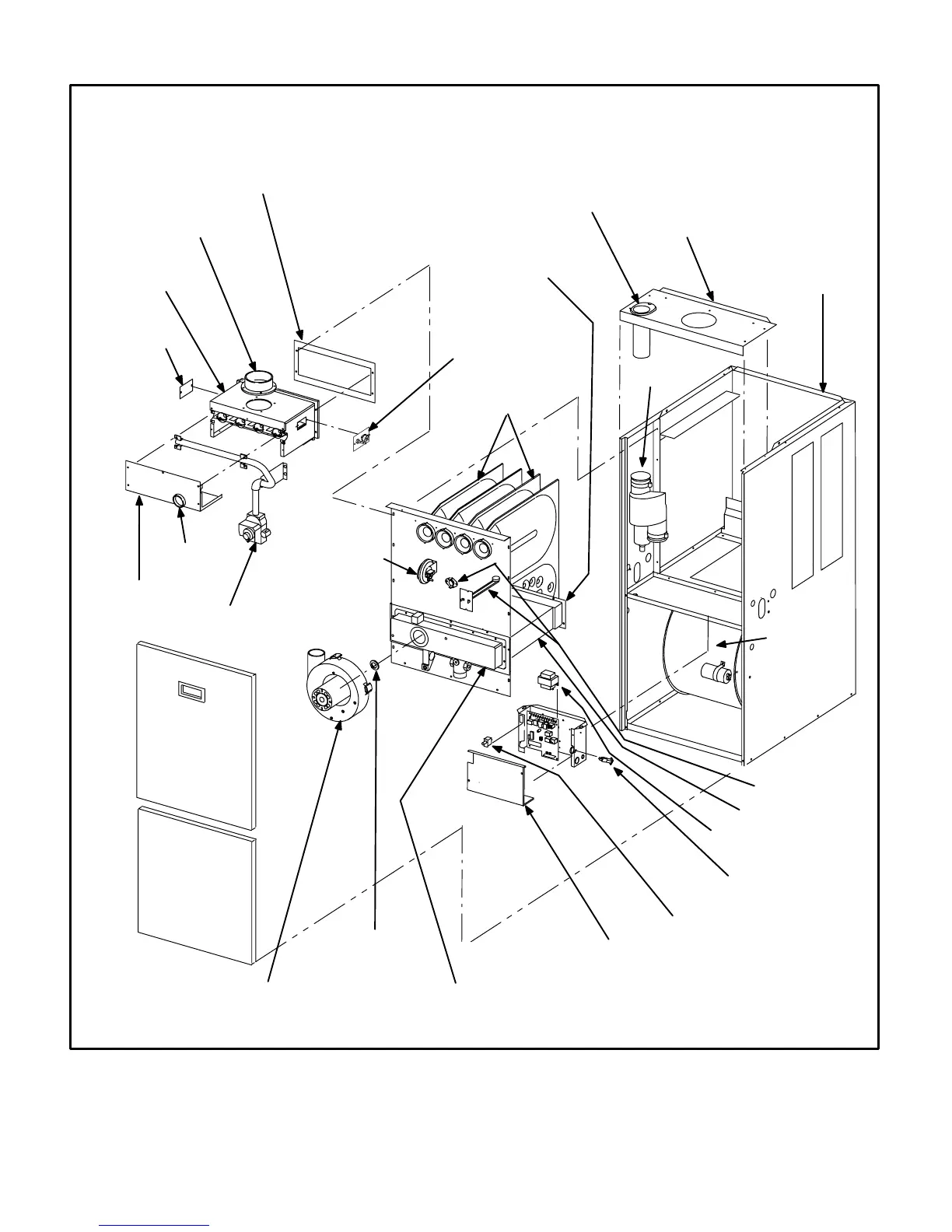

G26−3 THROUGH −6 COMPONENTS
TOP CAP
CABINET
GLASS FIBER GASKET
FRESH AIR
INTAKE FITTING
BURNER BOX
ASSEMBLY
PATCH
PLATE
PATCH PLATE WITH
BARBED FITTING
AND FLAME
ROLL−OUT SWITCH
GAS VALVE AND
MANIFOLD
BURNER
BOX
COVER
FLAME SIGHT
GLASS
DuralokPlus
TM
HEAT EXCHANGER
ASSEMBLY
CONDENSER COIL
CONTROL TRANSFORMER
CONTROL BOX COVER
DOOR INTERLOCK
SWITCH
CONTROL VOLTAGE
CIRCUIT BREAKER
WARM
HEADER
(COLLECTOR)
BOX
COLD HEADER
(COLLECTOR)
BOX
COMBUSTION AIR
BLOWER
COMBUSTION AIR
ORIFICE
BLOWER
ACCESS
DOOR
BURNER
ACCESS
PANEL
FLUE
TRANSITION
COMBUSTION AIR
PROVE (PRESSURE)
SWITCH
SUPPLY
AIR
BLOWER
PRIMARY LIMIT
(ALTERNATE STYLES)
FLUE COLLAR
FIGURE 1

Lennox G26 Series Specifications

General

Heating Stages	Single-stage
Blower Motor	PSC (Permanent Split Capacitor)
Gas Valve	Single-stage
Vent Type	Natural Draft
Fuel Type	Natural Gas or Propane
Blower Motor Type	PSC
Warranty	5-Year Limited Warranty on covered components
Heating Capacity	44, 000 to 132, 000 BTU/h
Filter Type	Standard
