Page 70

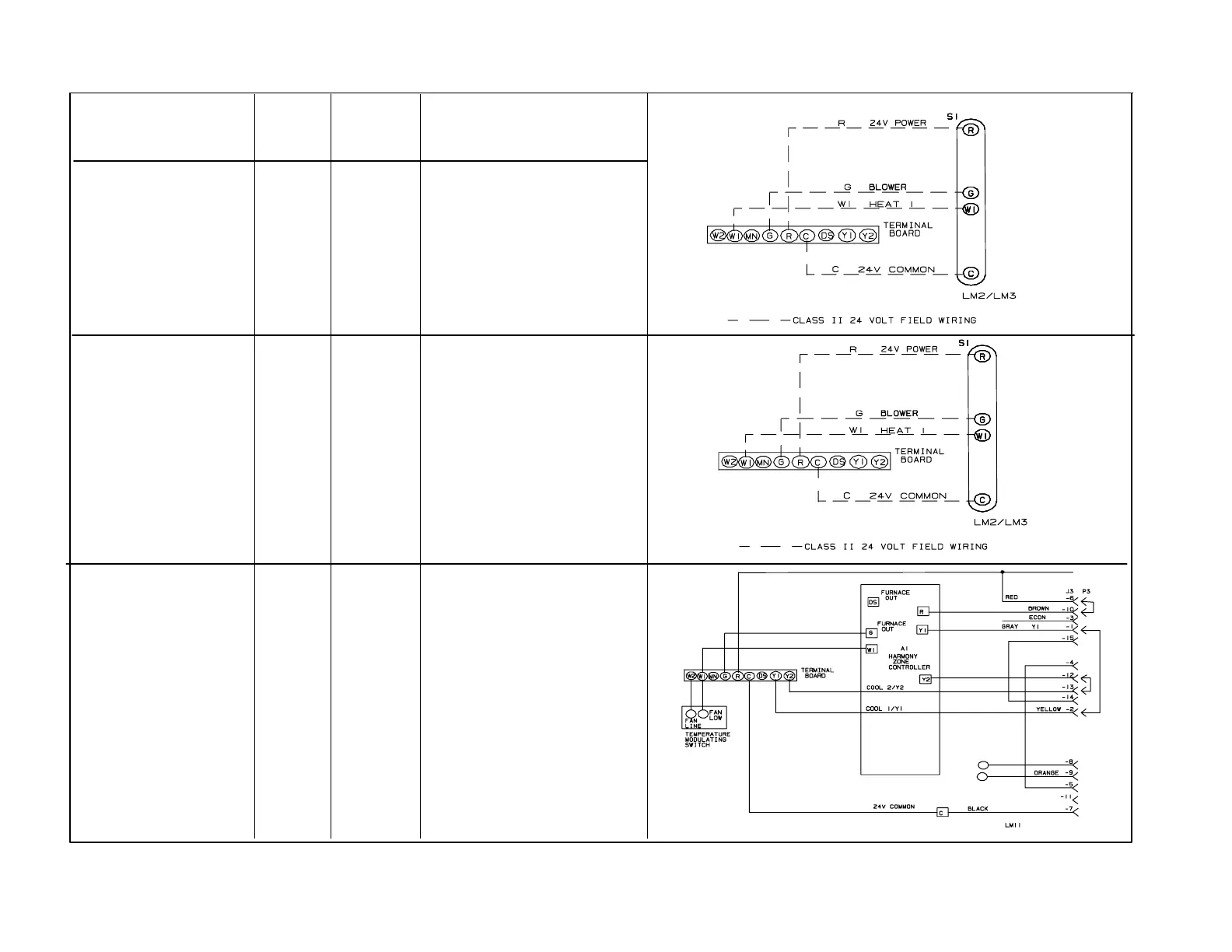

G32V−1 / −3 OPERATION SEQUENCE AND JUMPERS SUMMARY WITH VSP2 (HEATING)
MATCH UP COMMENTS OR SEQUENCE
Single-Stage Heating
with Single−Stage
Thermostat
Blower operates on the high
speed heat tap during the
heating mode.
Two-Stage Heating
With Single−Stage
Thermostat
No
Jumpers
Blower operates on the low
speed heat/cool tap during the
first stage of heating. Blower
operates on the high speed
heat tap during second stage
heating.
Harmony Heating No
Jumpers
Blower operates on PWM
signal generated by Har-
mony. Harmony overrides
blower speed taps. Blower
speed varies according to
zone demand.
TABLE 35
FOR COOLING JUMPERS
SEE COOLING SECTION
BELOW
T−Strip
Jumper
Mode of
Operation
No
Jumpers
One−Stage
W2 Timed
Two−Stage
Remove pin #3 of the J73
plug on the VSP control.
See figure 12. Insulate end
to prevent it from shorting.
Low and high fire controlled by
temperature modulating switch.
(continued on following page)
