Page 4
G43UF Gas Furnace
The G43UF Category IV gas furnace is shipped ready for
installation in the upflow position. The furnace is shipped
with the bottom panel in place. The bottom panel must be
removed if the unit is to be installed in upflow applications
with bottom return air.
The G43UF can be installed as either a Direct Vent or a
Non−Direct Vent gas central furnace.
The furnace is equipped for installation in natural gas ap-
plications. A conversion kit (ordered separately) is re-
quired for use in propane/LP gas applications.
NOTE − In Direct Vent installations, combustion air is taken
from outdoors and flue gases are discharged outdoors. In
Non−Direct Vent installations, combustion air is taken from
indoors and flue gases are discharged outdoors. See figure
2 for applications involving roof termination.

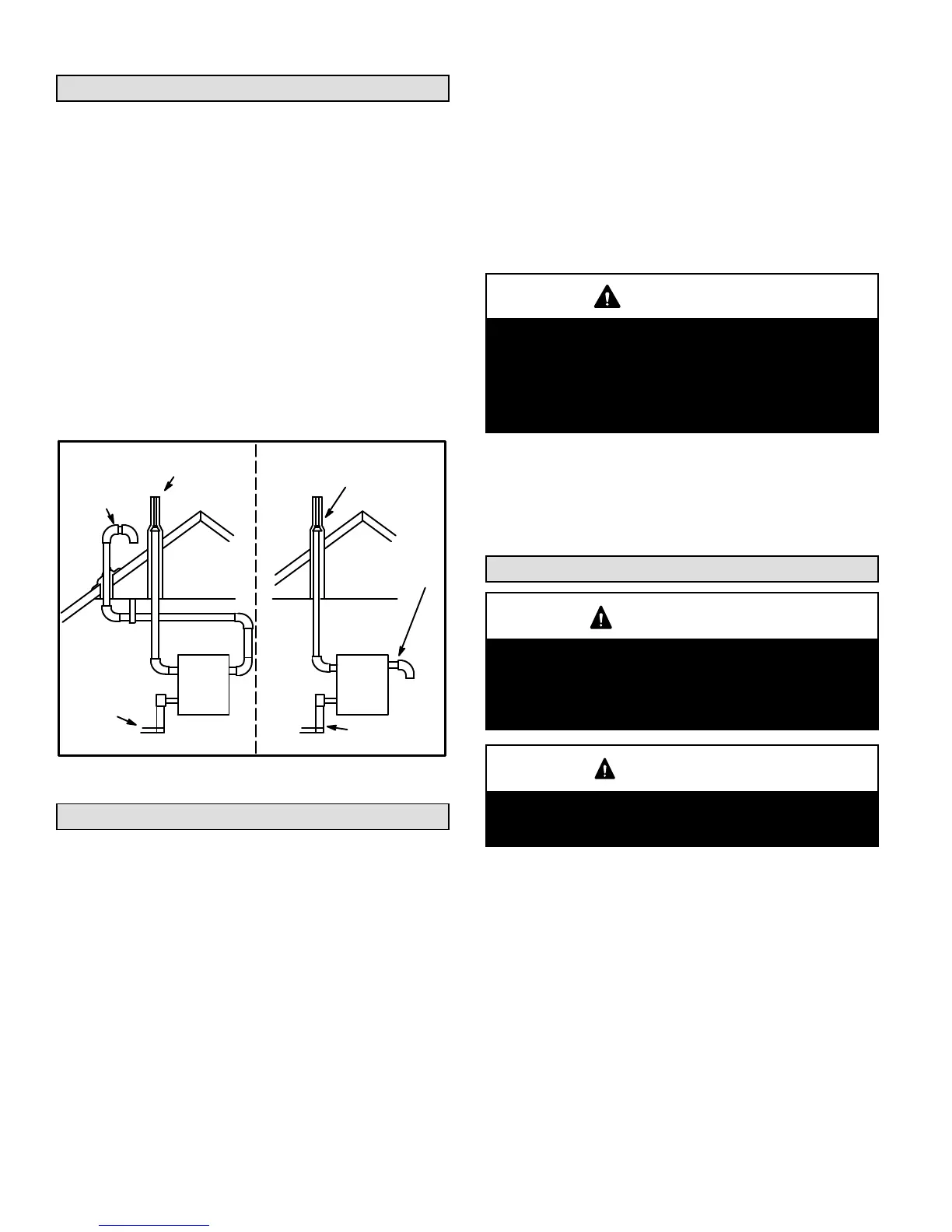

FIGURE 2
DIRECT VENT INSTALLATION NON−DIRECT VENT
INSTALLATION
EXHAUST
OUTLET
COMBUSTION
AIR INTAKE
OUTSIDE OF
HOUSE
CONDENSATE
DRAIN
EXHAUST
OUTLET
G43UF
COMBUSTION
AIR INTAKE INSIDE
OF HOUSE
G43UF
CONDENSATE
DRAIN
Shipping and Packing List
Package 1 of 1 contains
1 − Assembled G43UF unit
1 − Bag assembly containing the following:
3 − Screws
3 − Wire nuts
1 − Snap bushing
1 − Snap plug
1 − Wire tie
1 − Condensate trap
1 − Condensate trap cap
2 − 2" diameter vent / intake plugs
1 − 3" diameter cabinet plug (intake)
1 − 2" diameter debris screen
NOTE − G43UF−48C−110, G43UF−110H and G43UF−60C−110
units also include a 2" diameter PVC street elbow, which is
shipped on the blower deck in the heating compartment.
G43UF−60D−135 units are shipped with a 3" to 2" PVC reduc-
ing elbow.
Canadian Installations Only − Replace the provided 2"
street elbow shipped with the G43UF−110, G43UF−110H and
G43UF−60C−110 units with 2" street elbow Y0162. Replace
the provided 3" X 2" reducing elbow shipped with the
G43UF−60D−135 units with 3" X 2" reducing elbow 40W22.
Y0162 and 40W22 meet B149 vent requirements.
DANGER
Danger of explosion.
There are circumstances in which odorant used with
LP/propane gas can lose its scent. In case of a leak,
LP/propane gas will settle close to the floor and may
be difficult to smell. An LP/propane leak detector
should be installed in all LP applications.
Check equipment for shipping damage. If you find any
damage, immediately contact the last carrier.
The following items may also be ordered separately:
1 − Thermostat
1 − Propane/LP changeover kit
Safety Information
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, person-
al injury or loss of life. Installation and service must
be performed by a licensed professional installer (or
equivalent), service agency or the gas supplier.
CAUTION
As with any mechanical equipment, personal injury
can result from contact with sharp sheet metal
edges. Be careful when you handle this equipment.
Use only the type of gas approved for use with this furnace.
Refer to unit nameplate.
G43UF units are CSA International certified to ANSI
Z21.47 and CSA 2.3 standards.
In the USA, installation of gas furnaces must conform with lo-
cal building codes. In the absence of local codes, units must
be installed according to the current National Fuel Gas Code
(ANSI-Z223.1/NFPA 54). The National Fuel Gas Code is
available from the following address:
American National Standards Institute, Inc.
11 West 42nd Street
New York, NY 10036
In Canada, installation must conform with current National
Standard of Canada CSA-B149 Natural Gas and Propane
Installation Codes, local plumbing or waste water codes
and other applicable local codes.
