9. Indoor and Outdoor Unit Disassembly

9.1. MWCB and MWHB Unit Disassembly

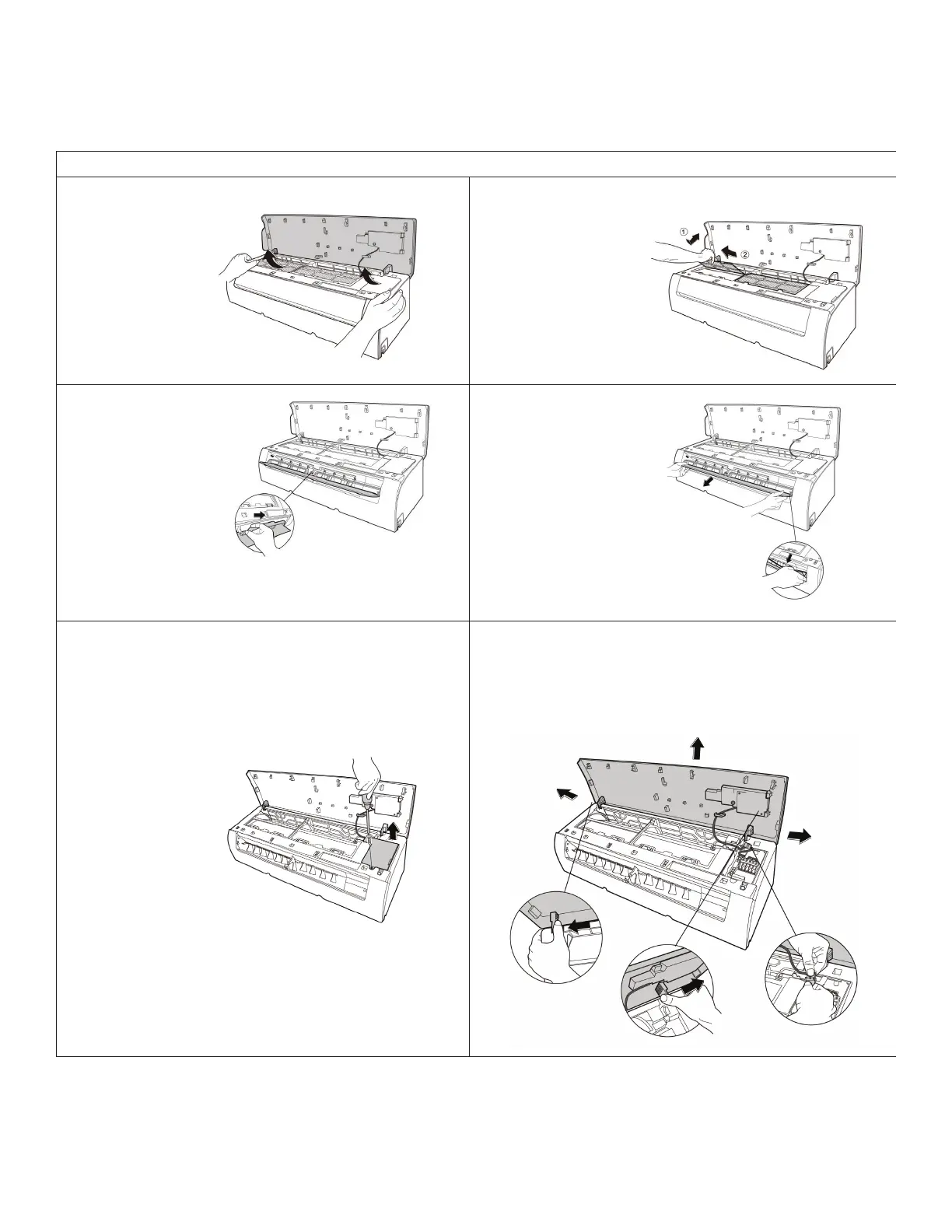

9.1.1. Front Panel Removal

Front Panel Removal

1. Hold the front panel

by the tabs located

on both sides and

lift the panel up.

2. Push up the bottom

of an air lter (step

1), and then pull it out

downwards (step 2).

3. Open the horizontal

louver and push the

hook towards left to

open it.

4. Bend the horizontal

louver lightly by both

hands to loosen the

hooks, then remove

the horizontal louver.

5. Pry the electrical

cover by a screw

driver, and rotate it

towards left, then

remove it.

6. Disconnect the connector for display board.

7. Slide the front panel side to side to release each axis .
