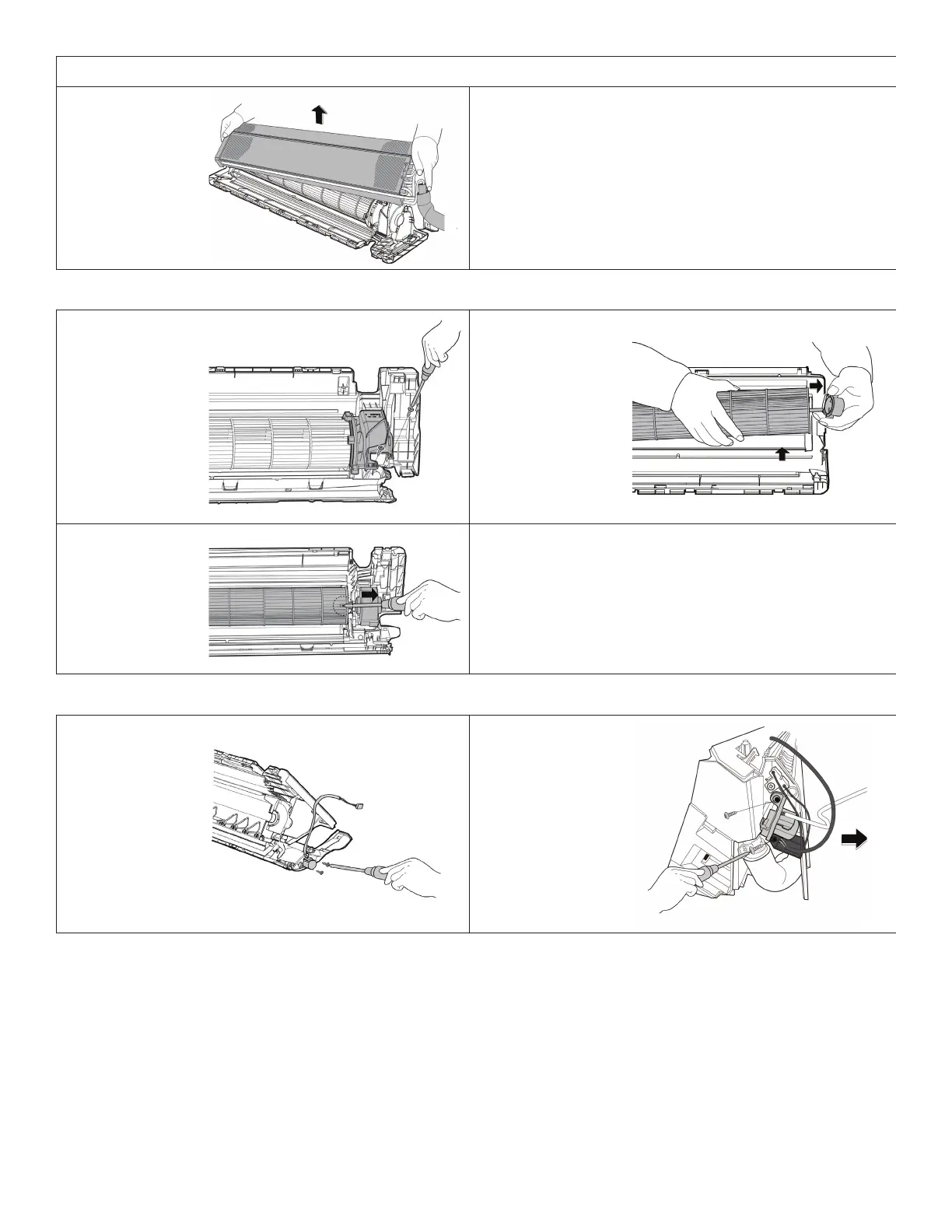

Evaporator Coil Removal

5. Pull out the evapo-

rator

9.1.4. Fan Removal

NOTE: The front pan-

el, control box

and evaporator

coil must be re-

moved prior to

this procedure

1. Remove the two

screws and fan

motor xing board.

2. Remove the bearing

sleeve.

3. Remove the xing

screw.

4. Pull out the fan mo-

tor and fan assem-

bly from the side.

9.1.5. Step Motor Removal

NOTE: The front pan-

el, control box,

evaporator coil

and fan must

be removed

prior to this

procedure

1. Remove the

two screws,

then remove the

horizontal swing

motor.

2. Remove one screw

and then remove the

vertical swing motor.

3. Remove one screw,

then remove the ion-

izer generator.
