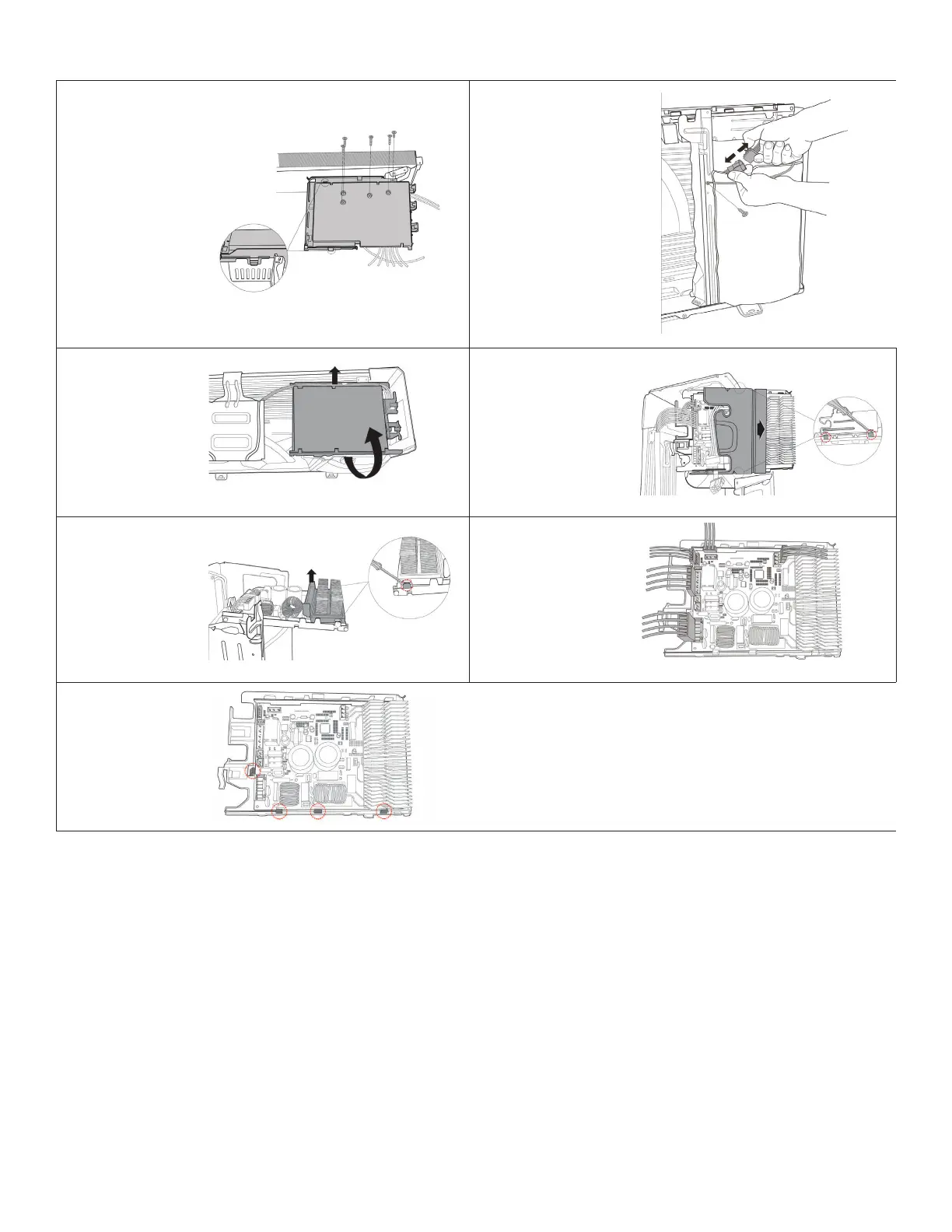

9.3.2. MCB009S4S-1P, MCB012S4S-1P, MCB018S4S-1P, MHB009S4S-1P, MHB012S4S-1P, and MHB018S4S-1P

1. Remove the

ve screws and

disconnect the

hooks to open the

electronic control

box cover.

2. Disconnect the

compressor connec-

tor and remove the

grounding screw.

3. Pull out the wires

from electrical

supporting plate

and turn over the

electronic control

assembly.

4. Remove the four

hooks to remove the

control box sub-

assembly.

5. Remove the two

hooks to remove the

xing board.

6. Disconnect the con-

nectors from the elec-

tronic control board.

7. Then remove the

four hooks secur-

ing the electronic

control board(

Lennox MWCB Series Service Manual

Other manuals for Lennox MWCB Series
