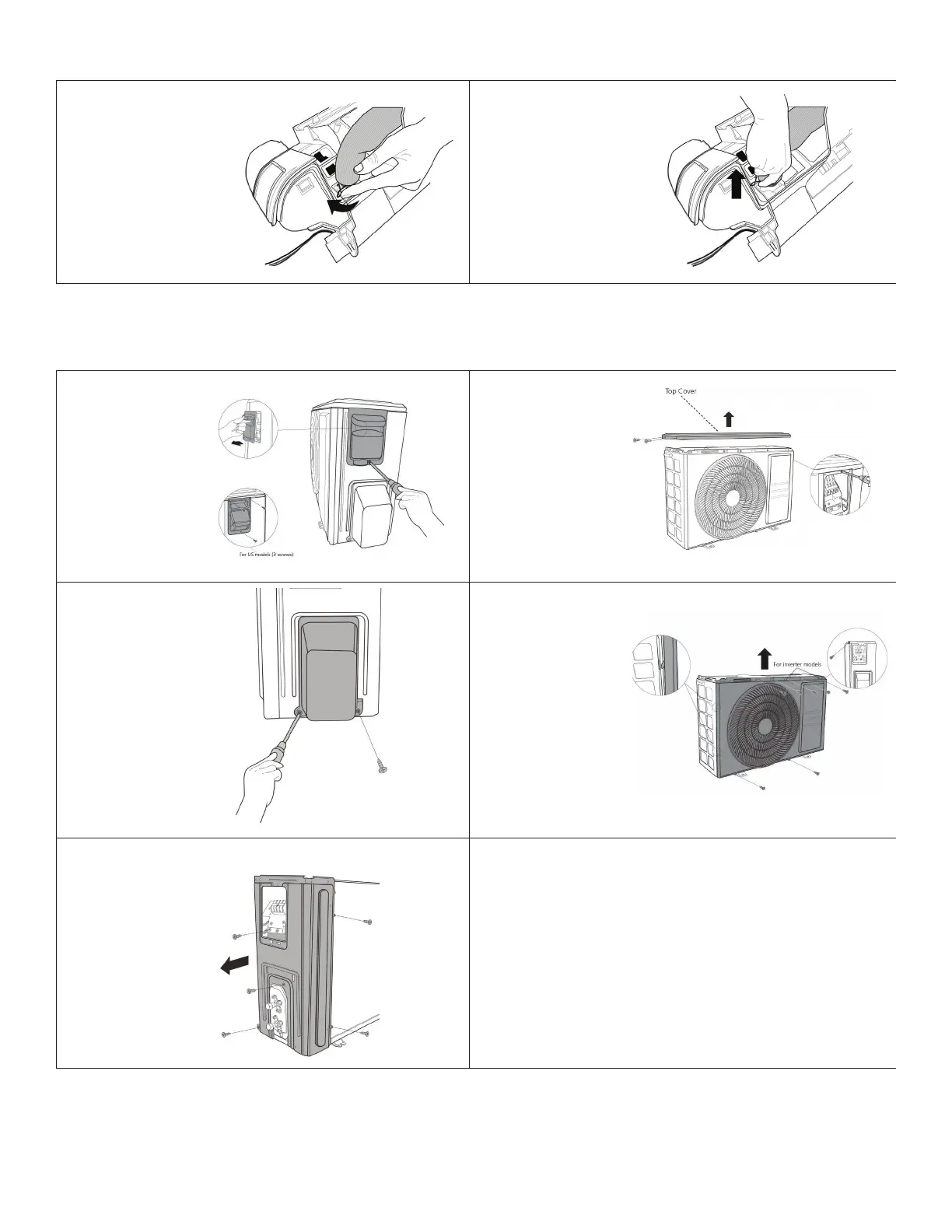

9.1.6. Drain Hose Removal
1. Rotate the xed wire
clockwise indicated
in right image
2. Pull up the drain hose
to remove it.
9.2. Outdoor Unit Disassembly
9.2.1. MCB012S4S-1L, MCB009S4S-1P and MCB012S4S-1P
1. Disconnect power to
the system.
2. Remove the one
screw securing
the big handle and
then remove the big
handle.
3. Remove the three
screws securing the
top cover and remove
the top cover.
NOTE: One of the
screws is located
underneath the
big handler.
4. Remove the two
screws securing the
upper cover plate
and then remove
plate.
5. Remove the eight
screws securing
the front cover and
remove the cover.
6. Remove the ve
screws securing the
right panel and then
remove panel.
