12
XC20
Removing and Installing Panels
LOUVERED PANEL REMOVAL
Remove the louvered panels as follows:
1. Remove two screws, allowing the panel to swing open slight
ly.
2. Hold the panel firmly throughout this procedure. Rotate bot
tom corner of panel away from hinged corner post until lower
three tabs clear the slots as illustrated in Detail B.
3. Move panel down until lip of upper tab clears the top slot in
corner post as illustrated in Detail A.
LOUVERED PANEL INSTALLATION
Position the panel almost parallel with the unit as illustrated in
Detail D with the screw side as close to the unit as possible.
Then, in a continuous motion:
1. Slightly rotate and guide the lip of the top tab inward as
illustrated in Detail A and C; then upward into the top slot
of the hinge corner post.
2. Rotate the panel until it is completely vertical to fully en
gage all of the tabs.
3. Holding the panel's hinged side firmly in place, close the
right-hand side of the panel, aligning the screw holes.
4. When panel is correctly positioned and aligned, insert the
screws and tighten.
Detail A
Detail B
ROTATE IN THIS DIRECTION;
THEN DOWN TO REMOVE
PANEL
SCREW
HOLES
LIP
IMPORTANT
! DO NOT ALLOW PANELS TO HANG ON UNIT BY TOP TAB. TAB IS FOR
ALIGNMENT AND NOT DESIGNED TO SUPPORT WEIGHT OF PANEL.
PANEL SHOWN SLIGHTLY ROTATED TO ALLOW TOP TAB TO EXIT (OR
ENTER) TOP SLOT FOR REMOVING (OR INSTALLING) PANEL.
MAINTAIN MINIMUM PANEL ANGLE (AS CLOSE TO PARALLEL
WITH THE UNIT AS POSSIBLE) WHILE INSTALLING PANEL.
PREFERRED ANGLE
FOR INSTALLATION
ANGLE MAY BE TOO
EXTREME
HOLD DOOR FIRMLY TO THE HINGED
SIDE TO MAINTAIN FULLY-ENGAGED TABS
Detail C

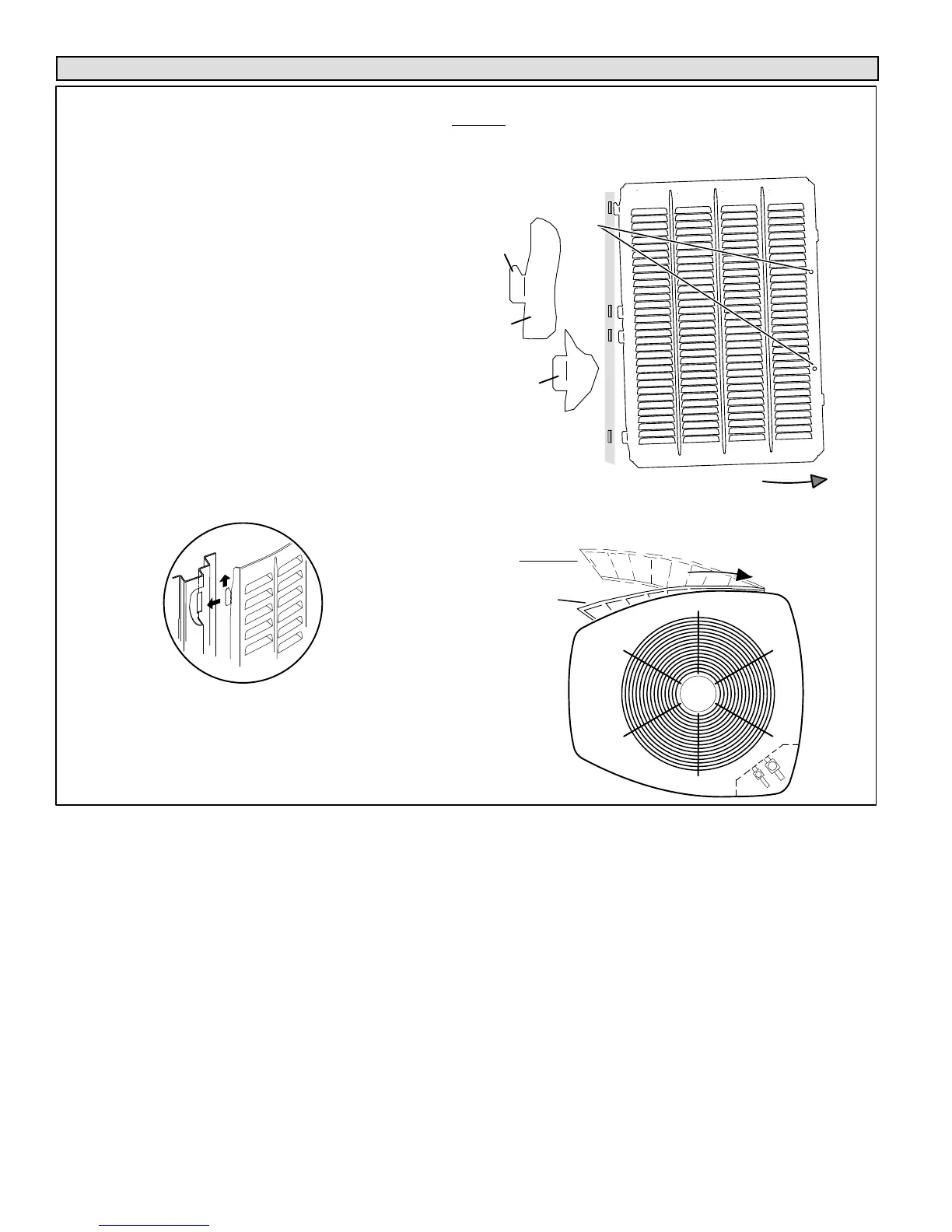

Figure 6. Removing and Installing Panels
