Maintenance
Outdoor Unit
Maintenance and service must be performed by a qualified
installer or service agency. At the beginning of each cooling
season, the system should be checked as follows:
1. Clean and inspect outdoor coil (may be flushed with a
water hose). Ensure power is off before cleaning.
2. Outdoor unit fan motor is factory-lubricated and
sealed. No further lubrication is needed.
3. Visually inspect all connecting lines, joints and coils for
evidence of oil leaks.
4. Check all wiring for loose connections.
5. Check for correct voltage at unit (unit operating).
6. Check amp draw on outdoor fan motor.
7. Inspect drain holes in coil compartment base and clean
if necessary.
NOTE - If insufficient heating or cooling occurs, the unit
should be gauged and refrigerant charge should be
checked.
Outdoor Coil
It may be necessary to flush the outdoor coil more fre
quently if it is exposed to substances which are corrosive or
which block airflow across the coil (e.g., pet urine, cotton
wood seeds, fertilizers, fluids that may contain high levels
of corrosive chemicals such as salts)
D Outdoor Coil — The outdoor coil may be flushed with
a water hose.
D Outdoor Coil (Coastal Area) — Moist air in ocean loca
tions can carry salt, which is corrosive to most metal.
Units that are located near the ocean require frequent
inspections and maintenance. These inspections will
determine the necessary need to wash the unit includ
ing the outdoor coil. Consult your installing contractor
for proper intervals/procedures for your geographic
area or service contract.
Indoor Unit
1. Clean or change filters.
2. Lennox blower motors are factory-lubricated and per
manently sealed. No more lubrication is needed.
3. Adjust blower speed for cooling. Measure the pressure
drop over the coil to determine the correct blower CFM.
Refer to the unit information service manual for pressure
drop tables and procedure.
4. Check all wiring for loose connections.
5. Check for correct voltage at unit. (blower operating)
6. Check amp draw on blower motor.
Indoor Coil
1. Clean coil if necessary.
2. Check connecting lines, joints and coil for evidence of
oil leaks.
3. Check condensate line and clean if necessary.
Locations with Possibility of Heavy Snow or
Freezing Rain Accumulation
Heavy snow and/or freezing rain can interfere with the per
formance of the outdoor fan assembly. Lennox
recommends use of the optional snow guard (X8782) in
these areas.

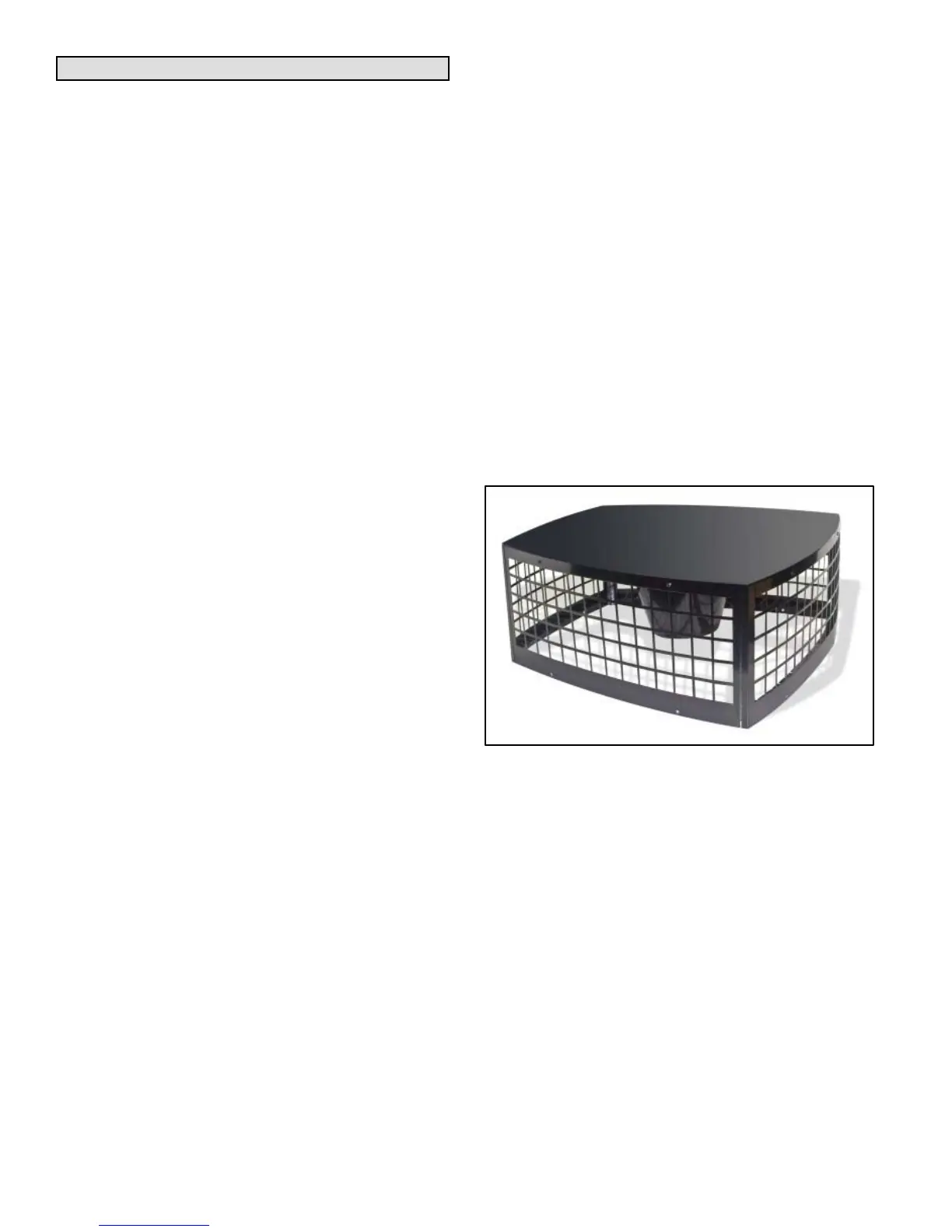

Figure 21. Snow Guard Top Cover — X8782
