4
XC25

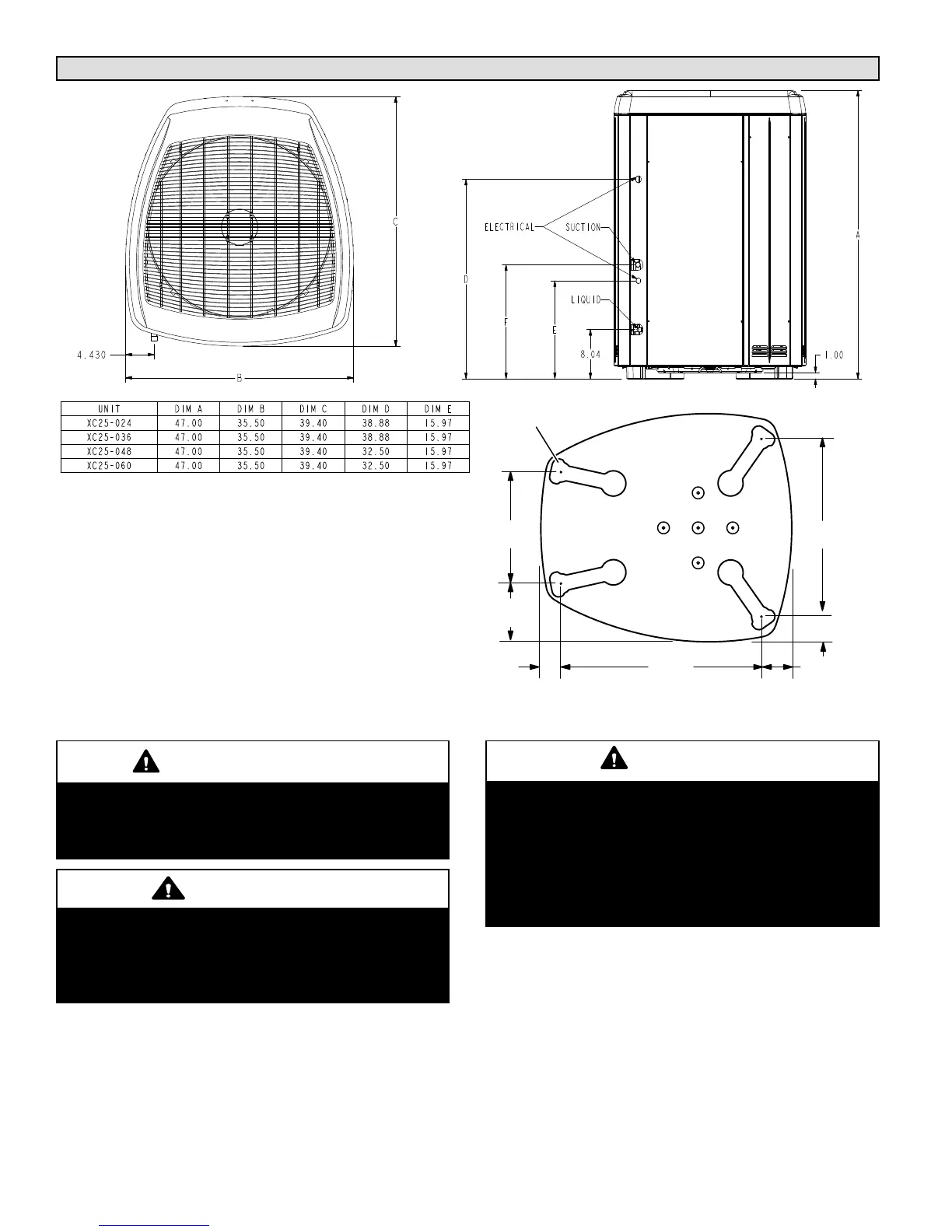

Unit Dimensions -- Inches (mm)
4-5/8
(117)
BASE WITH ELONGATED LEGS
16-7/8
(429)
8-3/4
(222)
26-7/8
(683)
3-3/4 (95)
30-3/4
(781)
3-1/8
(79)
UNIT SUPPORT
FEET
IMPORTANT
This unit must be matched with an indoor coil as
specified in Lennox Product Specification bulletin.
Coils previously charged with HCFC-22 must be
flushed.
CAUTION
Physical contact with metal edges and corners while
applying excessive force or rapid motion can result in
personal injury. Be aware of, and use caution when
working nearby these areas during installation or while
servicing this equipment.
WARNING
Electric Shock Hazard. Can cause injury or death. Unit
must be grounded in accordance with national and local
codes.
Line voltage is present at all components when unit is not
in operation on units with single‐pole contactors.
Disconnect all remote electric power supplies before
opening access panel. Unit may have multiple power
supplies.
