Lennox XC25-024-230-01 User Manual

42
XC25
Unit Wiring Diagrams
The following wiring diagrams were used during various stages of unit production. Service technician will need to visually
inspect the unit being serviced to determine which wiring diagram is applicable. Quick verification can usually be made by
comparing the wiring diagram located on the unit access panel to the following diagrams.

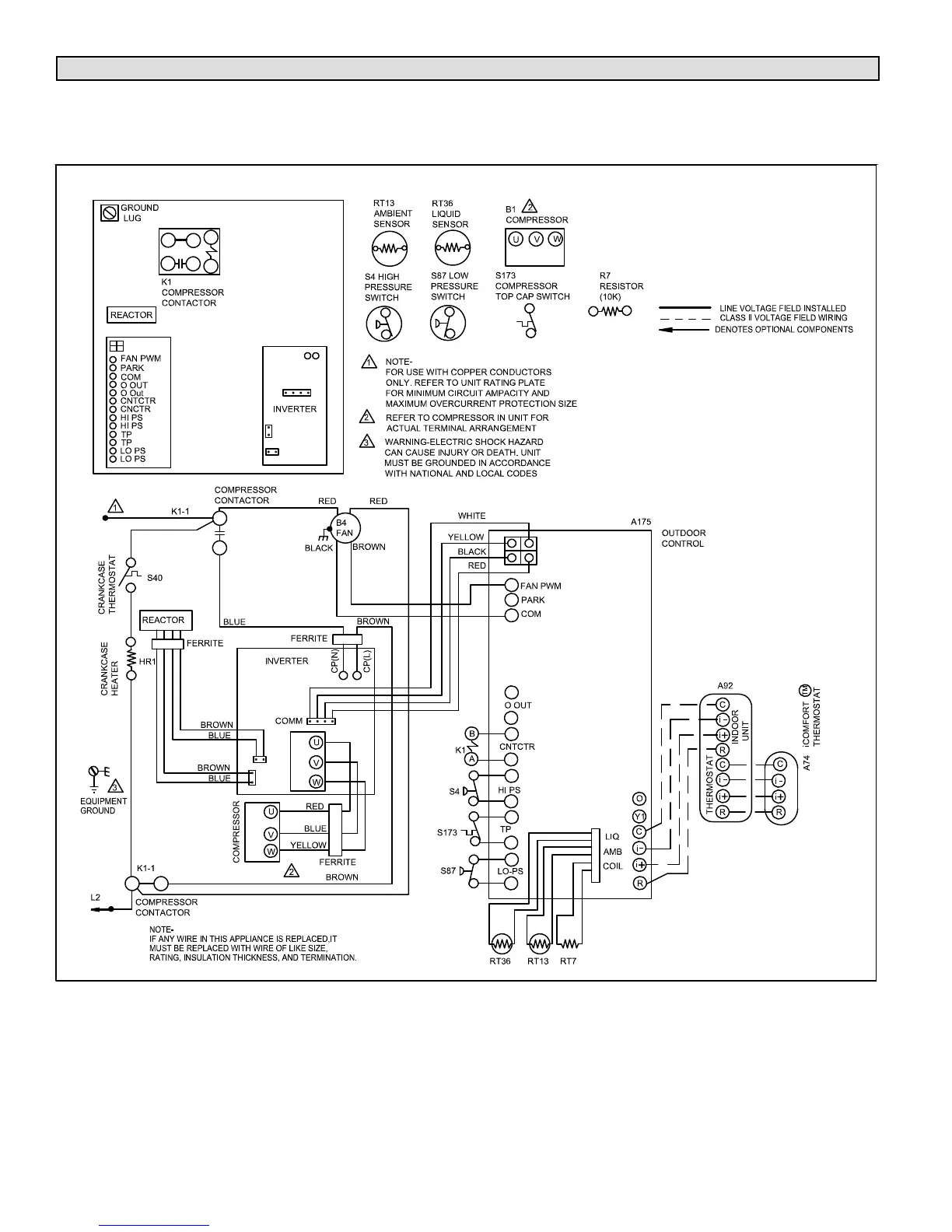

Figure 23. Typical Unit Wiring (XC25-024 and -036)
