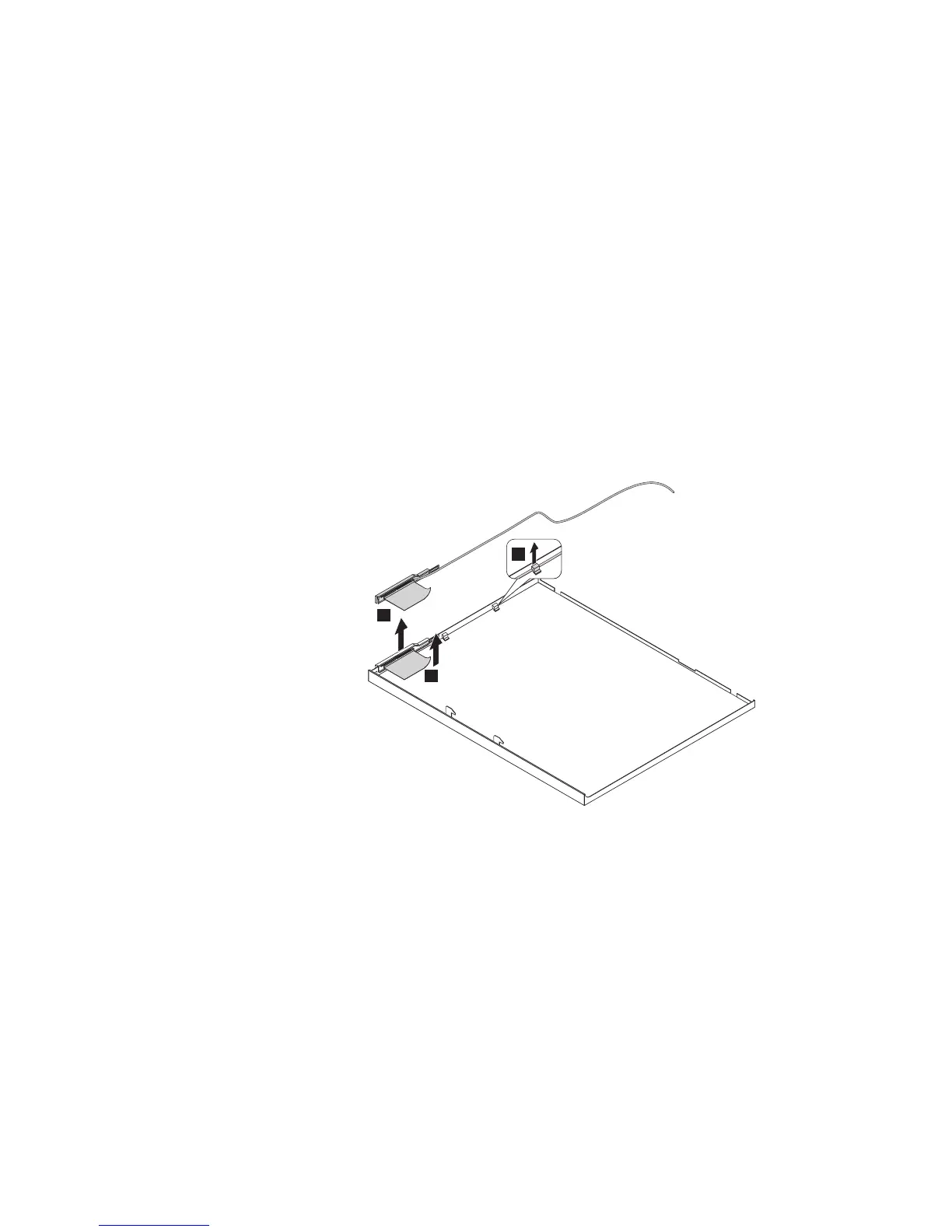

2100 Wireless WAN antenna cable (TMD)
Note: The following procedure is for TMD LCD only.
For access, remove following FRUs, in order:
v “1010 Battery pack” on page 60
v “1050 Keyboard” on page 65
v “1060 Upper case” on page 69
v “1100 Wireless WAN PCI Express Mini card” on page 75
v “1120 Wireless LAN PCI Express Mini card” on page 78
v “1170 DC-in and RJ-11 connectors” on page 85
v “1180 LCD assembly” on page 86
v “2010 LCD bezel” on page 97
v “2020 Inverter card” on page 100
v “2030 Bluetooth daughter card” on page 101
v “2040 LCD” on page 102
v “2050 Wireless WAN retractable antenna” on page 105
v “2080 Hinges” on page 109
v “2090 Wireless LAN antenna cables (TMD)” on page 113
1
2
3
(continued)
Removing and replacing a FRU
ThinkPad X60, X60s, X61, and X61s 115
