Lenovo B575 User Manual

32
Appendix A. CRU instructions
Removing the optical drive - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
To remove the optical drive, do the following:
1 Turn off the computer; then disconnect the AC adapter and all cables from the computer.
2 Close the computer display, and then turn the computer over.
3 Remove the battery pack.
4 Remove the Hard disk drive (HDD)/Memory/Mini PCI Express Card slot compartment
cover.

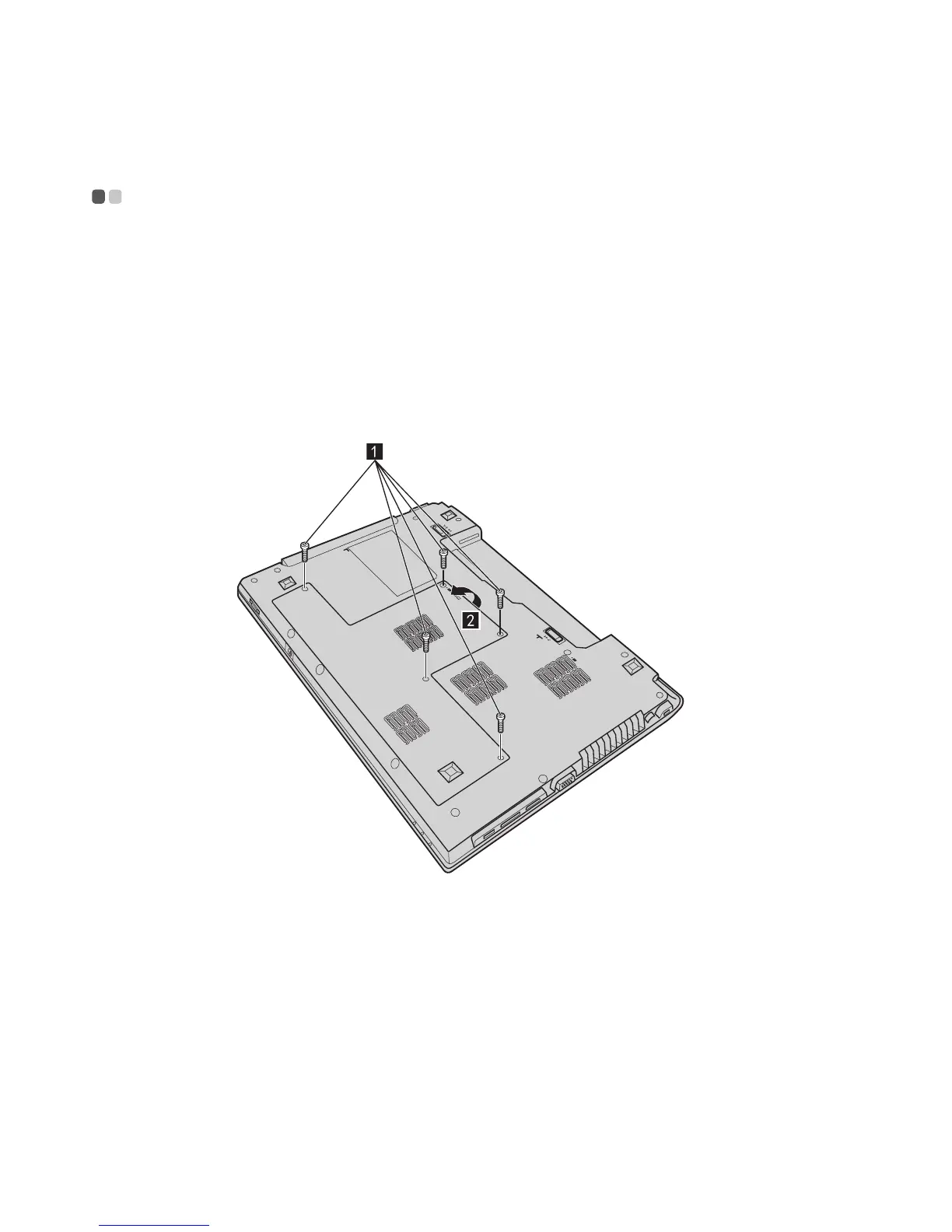

a. Loosen the screws that secure the compartment cover .
b. Remove the compartment cover .
5 Remove the screw shown in the illustration .
a
b
c

Lenovo B575 Specifications

General

Processor cache	1 MB
Processor cores	2
Processor model	E2-2000
Processor family	AMD E
Processor frequency	1.75 GHz
Processor cache type	L2
Processor manufacturer	AMD
Motherboard chipset	-
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Storage media	HDD
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Total storage capacity	500 GB
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD
Number of HDDs installed	1
Number of SSDs installed	0
HD type	Not supported
Display surface	Gloss
Display diagonal	15.6 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon HD 7340
On-board graphics card family	AMD Radeon HD 7000
Front camera resolution (numeric)	0.3 MP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	4
Keyboard layout	QWERTY
Operating system installed	FreeDOS
Form factor	Clamshell
Product type	Laptop
Product color	Black
Battery life (max)	3 h
Number of battery cells	6

Weight and Dimensions

Depth	252 mm
Width	378 mm
Height	33.1 mm
Weight	2350 g
