Lenovo ideapad FLEX 4 User Manual

42
ideapad FLEX 4-1470/ideapad FLEX 4-1435/ideapad FLEX 4-1480/ideapad
FLEX 4-1570/ideapad FLEX 4-1580 Hardware Maintenance Manual
1050 Speakers
Foraccess,removetheseFRUsinorder:
• “1010Basecover”onpage33
• “1020Batterypack”onpage36

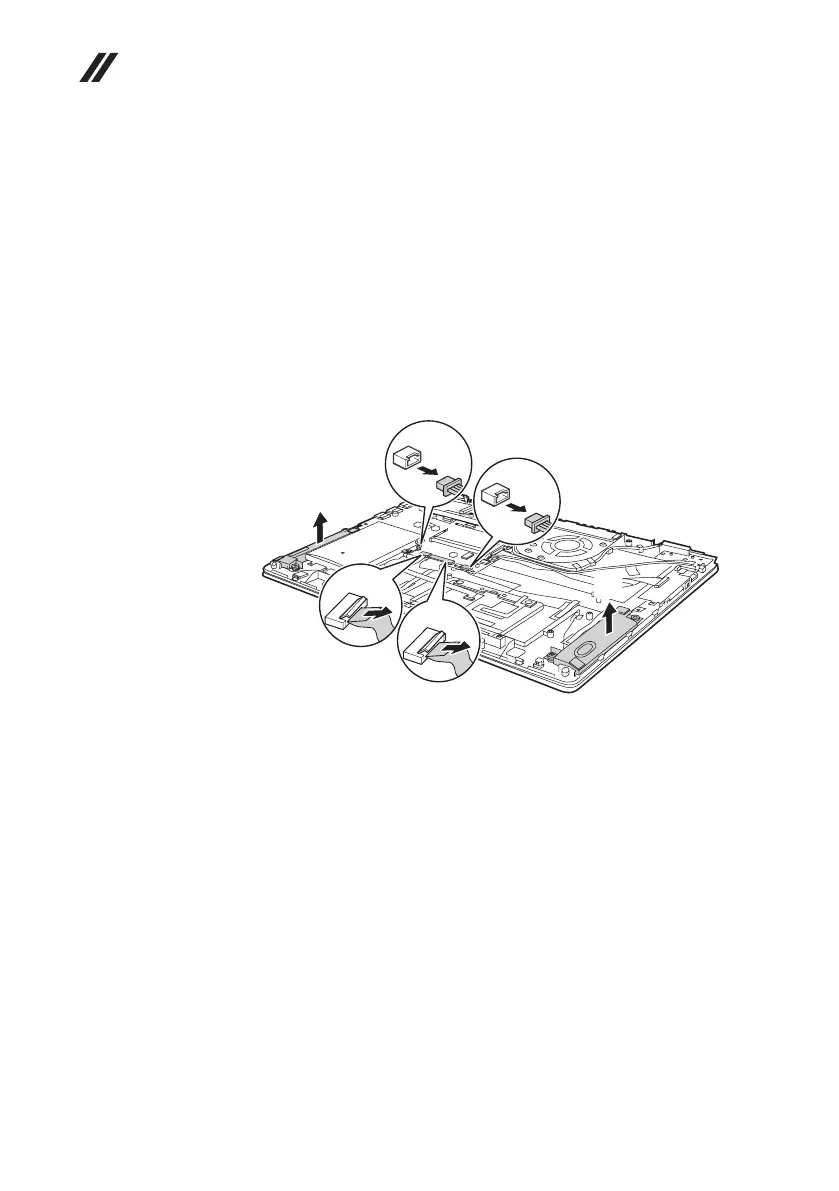

Figure 5. Removal steps of speakers
Detachthespeakersconnectorinthedirectionshownbyarrow
1
.Unplugthe
back-upbatteryconnectorinthedirectionshownbyarrow
2
,detachthetouch
padandkeyboardconnectorinthedirectionshownbyarrow
3
,Thenremove
thespeakers
4
.
d
d
b
a
c
c

Lenovo ideapad FLEX 4 Specifications

General

Graphics	Intel HD Graphics 520
Display	14" FHD (1920 x 1080) IPS Multi-touch
RAM	16GB DDR4
Storage	512GB SSD or 1TB HDD
Operating System	Windows 10 Home
Ports	2 x USB 3.0, 1 x USB 2.0, HDMI, Audio Combo Jack
Wireless	Wi-Fi 802.11ac, Bluetooth 4.0
