Lenovo ideapad FLEX 4-1470/ideapad FLEX 4-1435/ideapad FLEX 4-1480/ideapad
FLEX 4-1570/ideapad FLEX 4-1580
1080 IO board, DC-in cable
Foraccess,removetheseFRUsinorder:
• “1010Basecover”onpage33
• “1020Batterypack”onpage36
• “1070FanassemblyandHeatSinkassembly”onpage45

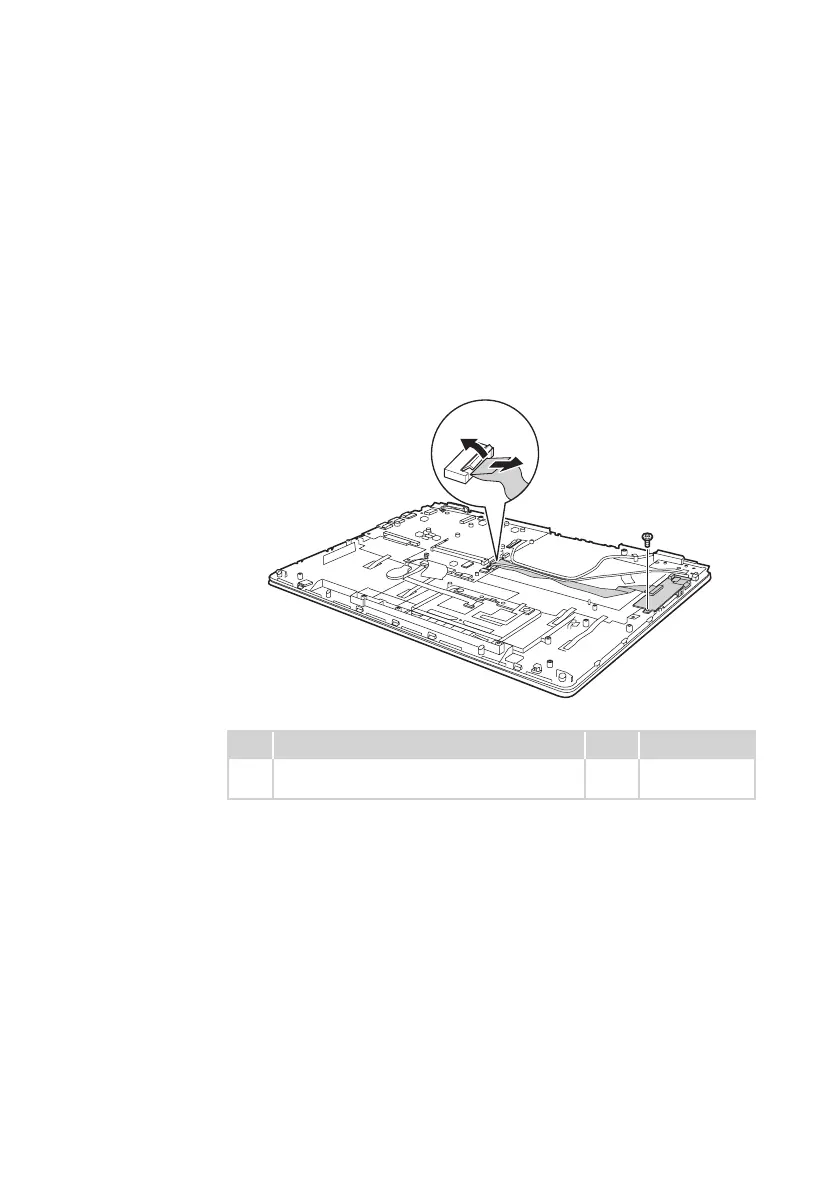

Figure 8. Removal steps of IO board, DC-in cable
Detachthe IOboard connectorinthedirectionsshown byarrows
1
and
2
.
Removethescrew
3
.
b
a
c
Step Screw (quantity) Color Torque
3
M2×3.5mm,Phillips-head,nylok-coated(1)
ioboard---logup
Silver 1.85+/-0.15kgf-cm
When installing:Makesurethattheconnectorisattachedrmly.

Lenovo ideapad FLEX 4 Specifications

General

Graphics	Intel HD Graphics 520
Display	14" FHD (1920 x 1080) IPS Multi-touch
RAM	16GB DDR4
Storage	512GB SSD or 1TB HDD
Operating System	Windows 10 Home
Ports	2 x USB 3.0, 1 x USB 2.0, HDMI, Audio Combo Jack
Wireless	Wi-Fi 802.11ac, Bluetooth 4.0
