Lenovo ThinkCentre M80q Hardware Maintenance Manual

5. Reinstall the removed parts. Then, reconnect the power adapter and all disconnected cables to the
computer.
Microprocessor
Prerequisite
Before you start, read Chapter 1 “Important safety information” on page 1 and print the following
instructions.
The heat sink and microprocessor might be very hot. Before you open the computer cover, turn off the
computer and wait several minutes until the computer is cool.
Replacement procedure
1. Remove the computer cover. See “Computer cover” on page 55.
2. Remove the internal speaker. See “Internal speaker” on page 57.
3. Remove the system fan. See “System fan” on page 58.
4. Remove the heat sink. See “Heat sink” on page 71.
5. Remove the storage drive. See “Storage drive” on page 61.
6. Replace the microprocessor.
Notes:

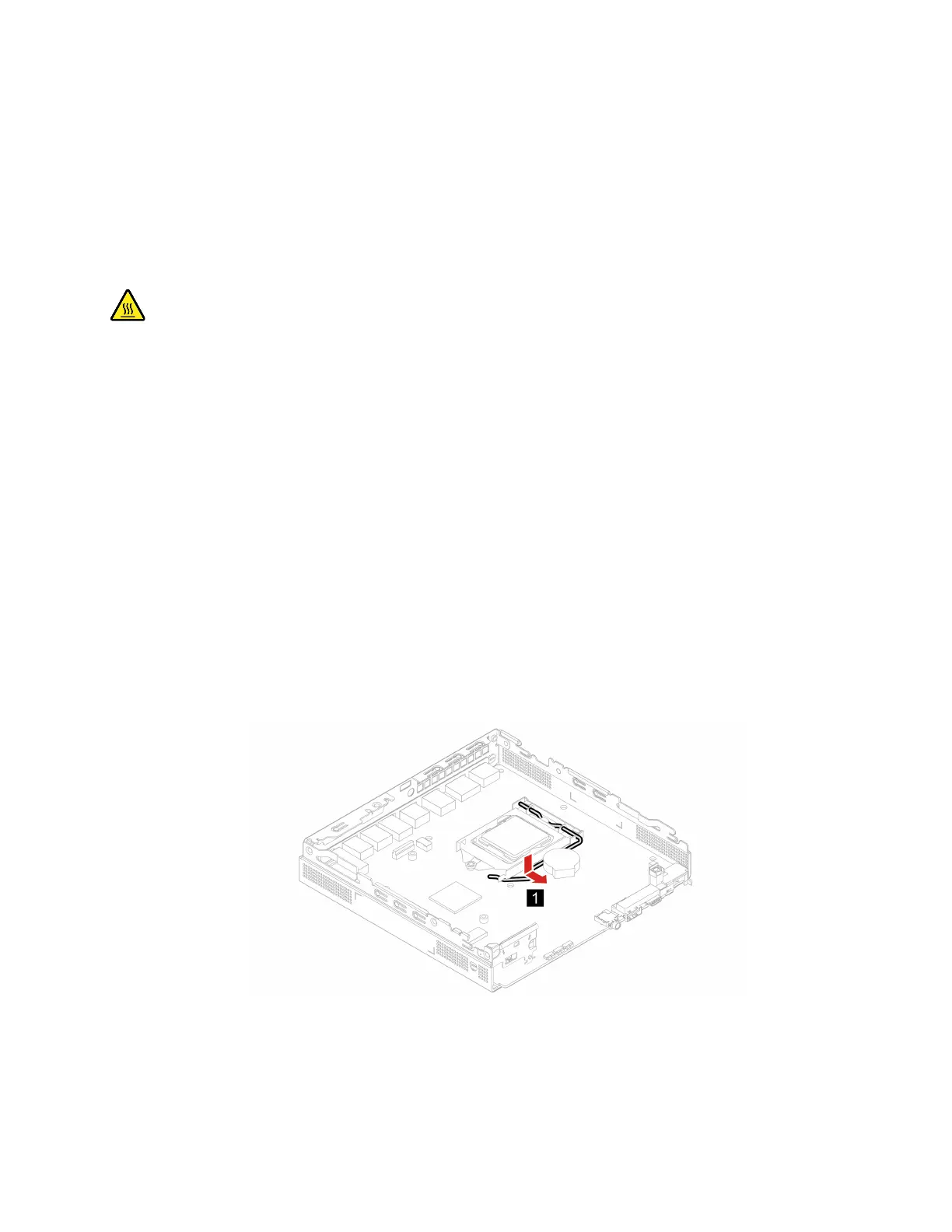

• Your microprocessor and socket might look different from the one illustrated.
• Touch only the edges of the microprocessor. Do not touch the gold contacts on the bottom.
• Do not drop anything onto the microprocessor socket while it is exposed. The socket pins must be
kept as clean as possible.
Chapter 5. Hardware removal and installation 75

Lenovo ThinkCentre M80q Specifications

General

Audio chip	Realtek ALC233VB
Audio system	High Definition Audio
Product type	Mini PC
Number of speakers	1
Motherboard chipset	Intel Q470
Password protection type	HDD, Power on, Supervisor
Volume	1 L
Product color	Black
Placement supported	Vertical
Cable lock slot type	Kensington
Processor cache	16 MB
Processor cores	8
Processor family	Intel® Core™ i7
Processor threads	16
Processor frequency	2 GHz
Processor cache type	Smart Cache
Configurable TDP-down	25 W
Processor manufacturer	Intel
Processor boost frequency	4.5 GHz
Configurable TDP-down frequency	1.3 GHz
Memory slots	2x SO-DIMM
Internal memory	16 GB
Memory channels	Dual-channel
Memory clock speed	2933 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	1 x 16 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	NVMe, PCI Express 3.0
Storage media	SSD
SSD form factor	M.2
Optical drive type	No
Total storage capacity	512 GB
Operating system language	DEU, DUT, ENG, FRE, ITA
Operating system architecture	64-bit
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics 630
On-board graphics card family	Intel® UHD Graphics
Power supply	135 W
Antenna type	2x2
LAN controller	Intel® I219-LM
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.1
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Certification	EPEAT Silver, ENERGY STAR 8.0, ErP Lot 3, TCO Certified 8.0, RoHS, MIL-STD-810H
Sustainability certificates	ENERGY STAR, TCO, EPEAT Silver, RoHS
