Lenovo ThinkCentre M90a Hardware Maintenance Manual

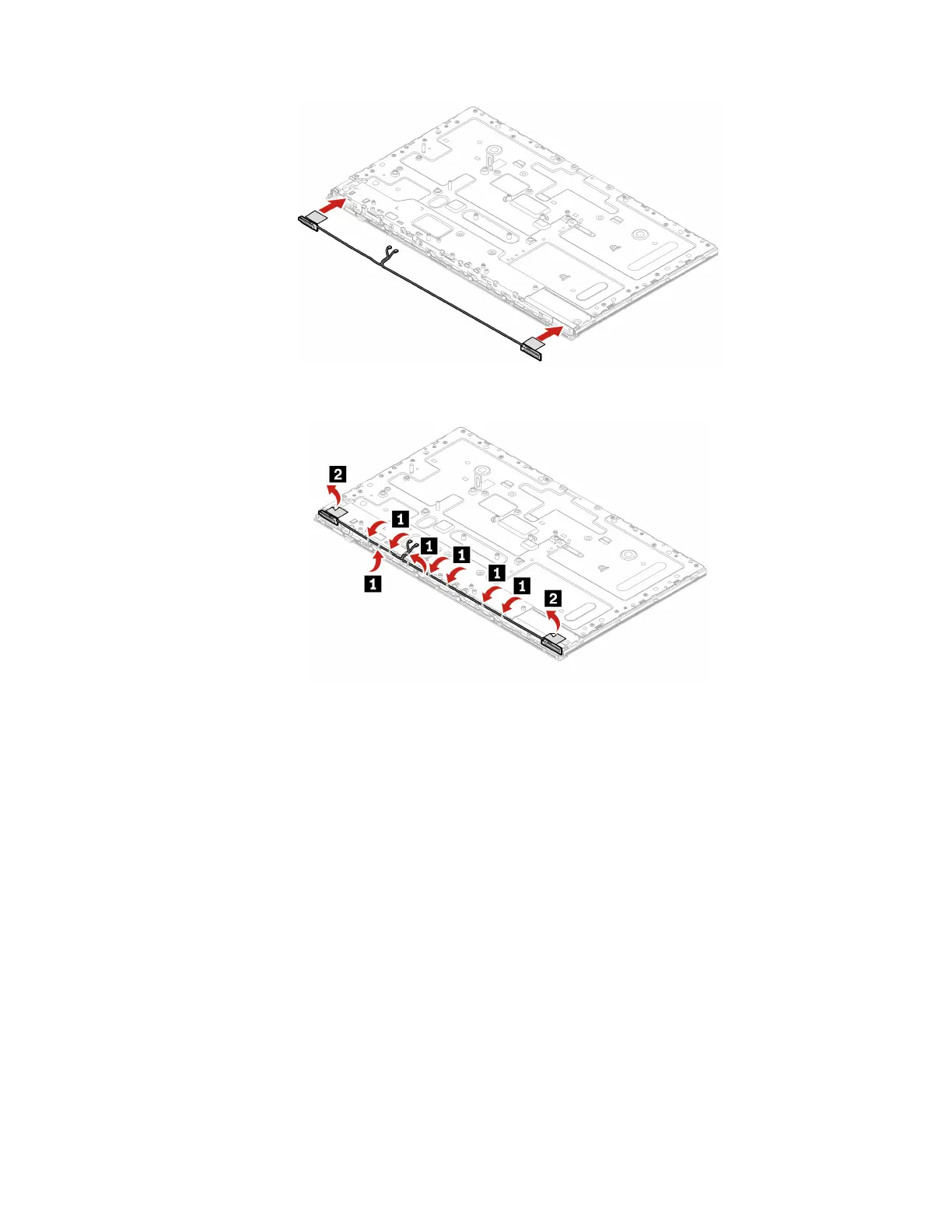

Figure 163. Installing the Wi-Fi antennas
Figure 164. Routing the Wi-Fi antennas and cables
27. Reinstall the removed parts.
28. Place the computer in an upright position.
29. If a locking device is available, use it to lock the computer.
30. Reconnect the external cables and power cords to the corresponding connectors on the computer.
LCD bracket and LCD panel
Prerequisite
Before you start, read Chapter 1 “Important safety information” on page 1 and print the following
instructions.
Replacement procedure
1. Remove the computer stand. See “Computer stand” on page 61.
2. Remove the rear cover. See “Rear cover” on page 65.
3. Remove the optical drive. See “Optical drive” on page 66.
4. Remove the optical drive holder. See “Optical drive holder” on page 69.
Chapter 6. Hardware removal and installation 139

Lenovo ThinkCentre M90a Specifications

General

Storage	Up to 2TB HDD or 1TB SSD
Processor	Up to 10th Gen Intel Core i9
Memory	Up to 64GB DDR4
Graphics	Integrated Intel UHD Graphics 630
Display	23.8-inch FHD (1920x1080) IPS
Operating System	Windows 10 Pro
Ports	HDMI, DisplayPort, Ethernet, audio jack
Audio	Integrated stereo speakers, dual array microphone
Wireless	Wi-Fi 6, Bluetooth 5.1
