Lenovo ThinkPad T470 User Manual

• Depending on the model, your computer might look slightly different from the illustrations in this topic.
• There might be a risk of short circuits if you remove the base cover assembly in the following situations:
– When your computer has the removable battery installed
– When your computer is connected to ac power
Besides, the computer will not start after you reinstall the base cover assembly. To start the computer,
disconnect the ac power adapter and then reconnect it to the computer.
To replace the base cover assembly, do the following:
1. Disable the built-in battery. See “Disabling the built-in battery” on page 109.
2. Ensure that the computer is turned off and disconnected from ac power and all cables.
3. Close the computer display and turn the computer over.
4. Remove the removable battery. See “Replacing the removable battery” on page 110.

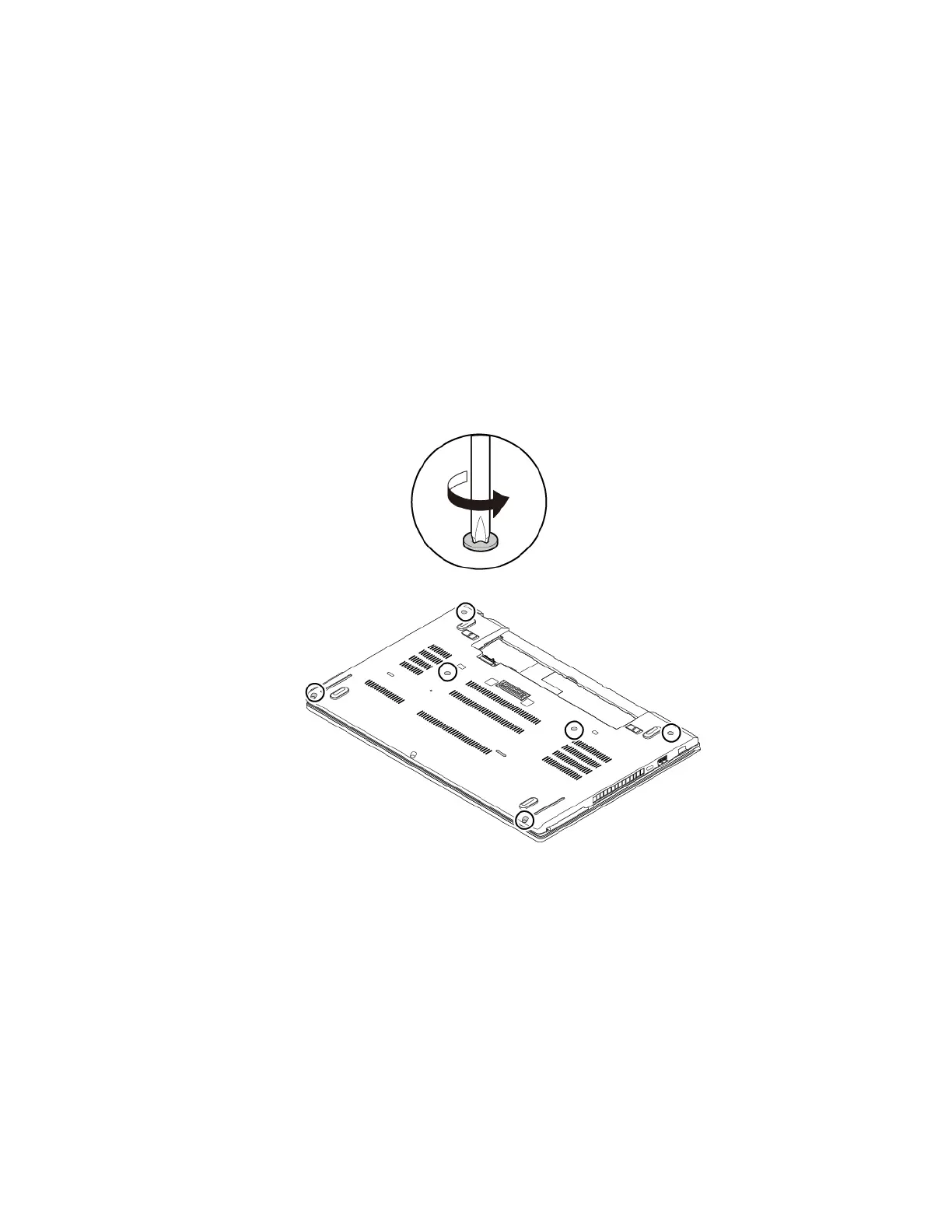

5. Loosen the screws that secure the base cover assembly as shown.
Chapter 9. Replacing devices 113

Lenovo ThinkPad T470 Specifications

General

RAM	Up to 32GB DDR4
Operating System	Windows 10 Pro
Bluetooth	Bluetooth 4.1
Processor	Up to 7th Generation Intel Core i7
Storage	Up to 1 TB HDD or Up to 512 GB SSD
Display	14" FHD (1920 x 1080) IPS
Graphics	Intel HD Graphics 620
Battery Life	Up to 18 hours
Ports	2 x USB 3.0, 1 x USB-C, HDMI, Ethernet, SD card reader
Wireless	Intel® Dual Band Wireless-AC 8265
Weight	Starting at 1.58 kg (3.48 lbs)
