Removing the bezel
Important: Before you install optional hardware, make sure that the server is
working correctly. Start the server, and make sure that the operating system starts,
if an operating system is installed, or that a 19990305 error code is displayed,
indicating that an operating system was not found but the server is otherwise
working correctly. If the server is not working correctly, see the Hardware
Maintenance Manual for diagnostic information.
To remove the bezel, complete the following steps:
Note:
The illustrations in this document might differ slightly from your hardware.
1. Read the safety information that begins on page v and “Installation guidelines”
on page 20.
2. Unlock the side cover.
Note: You must unlock the side cover to remove the bezel.

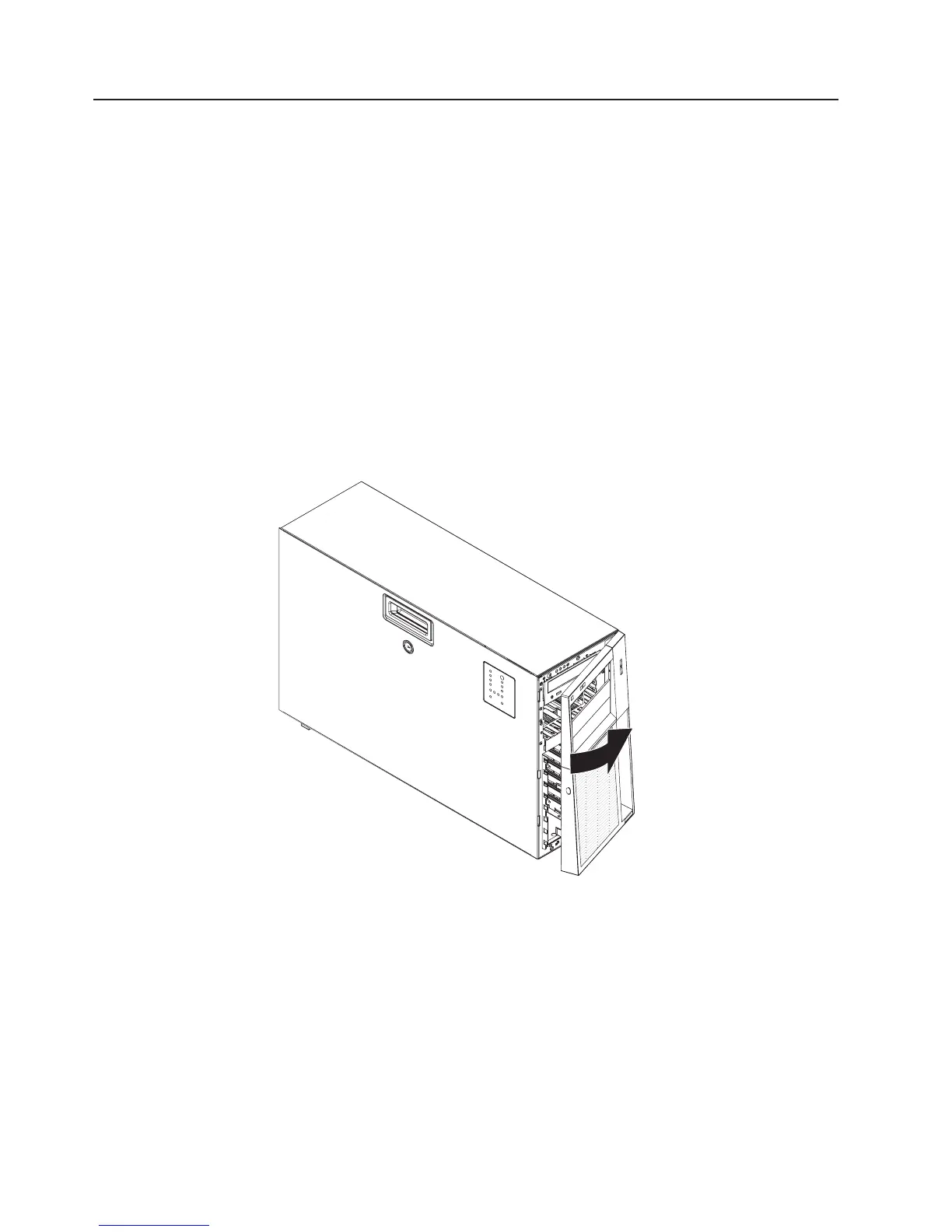

3. Position your finger on the depressed area on the left side of the bezel and
rotate the bezel away from the server.
4.
24 ThinkServer TD100 and TD100x Types 4203, 4204, 4205, 4206, 6398, 6399, 6419, and 6429: User Guide
