e. Press down firmly on the heat sink until it is seated securely.
f. Rotate the heat-sink lever to the closed position and hook it underneath the
lock tab.
10.
Reinstall the microprocessor air baffle.
11. Rotate the rear system fan air baffle back into the server.
12. Rotate the power-supply cage assembly back into the server. Press the
power-supply cage release tab and rotate the power-supply cage assembly
into the chassis.
13. If you have a hot-swap model, reinstall the hot-swap power supplies.
If you have other options to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 55.
Installing a hot-swap power supply
The following notes describe the type of power supply that the server supports and
other information that you must consider when installing a power supply. Information
in this section applies only to server models that have hot-swap power supplies. If
you have a non-hot-swap model, it comes with only one 670-watt power supply,
which must be replaced only by a service technician.
v The server comes with one power supply.
v The redundant mode requires two 835-watt hot-swap power supplies in the
server. You must install an additional redundant power and cooling option kit (the
option kit comes with an 835-watt hot-swap power supply and three hot-swap
fans) to upgrade to redundant mode.
When
you remove or install a hot-swap power supply, observe the following
precautions.

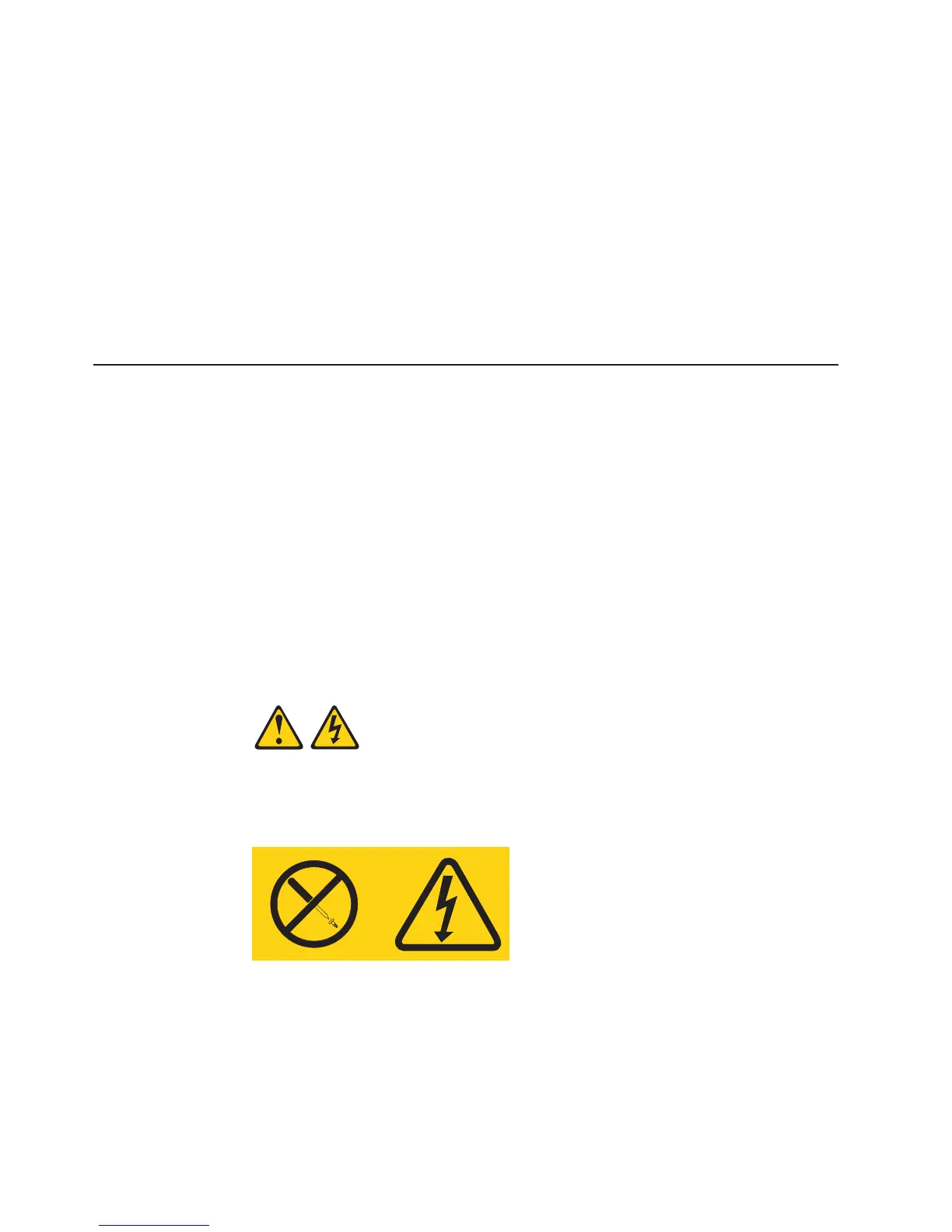

Statement 8:
CAUTION:
Never remove the cover on a power supply or any part that has the following
label attached.
Hazardous voltage, current, and energy levels are present inside any
component that has this label attached. There are no serviceable parts inside
these components. If you suspect a problem with one of these parts, contact
a service technician.
46 ThinkServer TD100 and TD100x Types 4203, 4204, 4205, 4206, 6398, 6399, 6419, and 6429: User Guide
