Mechanical installation
Mounting with thermal separation (push−through technique)
Dimensions
4
52
EDBCSXA064 EN 3.2
4.3.1 Dimensions
Note!
Mounting with ECSZS000X0B shield mounting kit:
ƒ Mounting clearance below the module > 195 mm
Z
c1
c1
h
h
a1
e
e1
a
g
g
g
d
b
g
a
d
b
b1
b1
³ 65 mm
³ 65 mm
a1
Z
0
1
ECSXA007

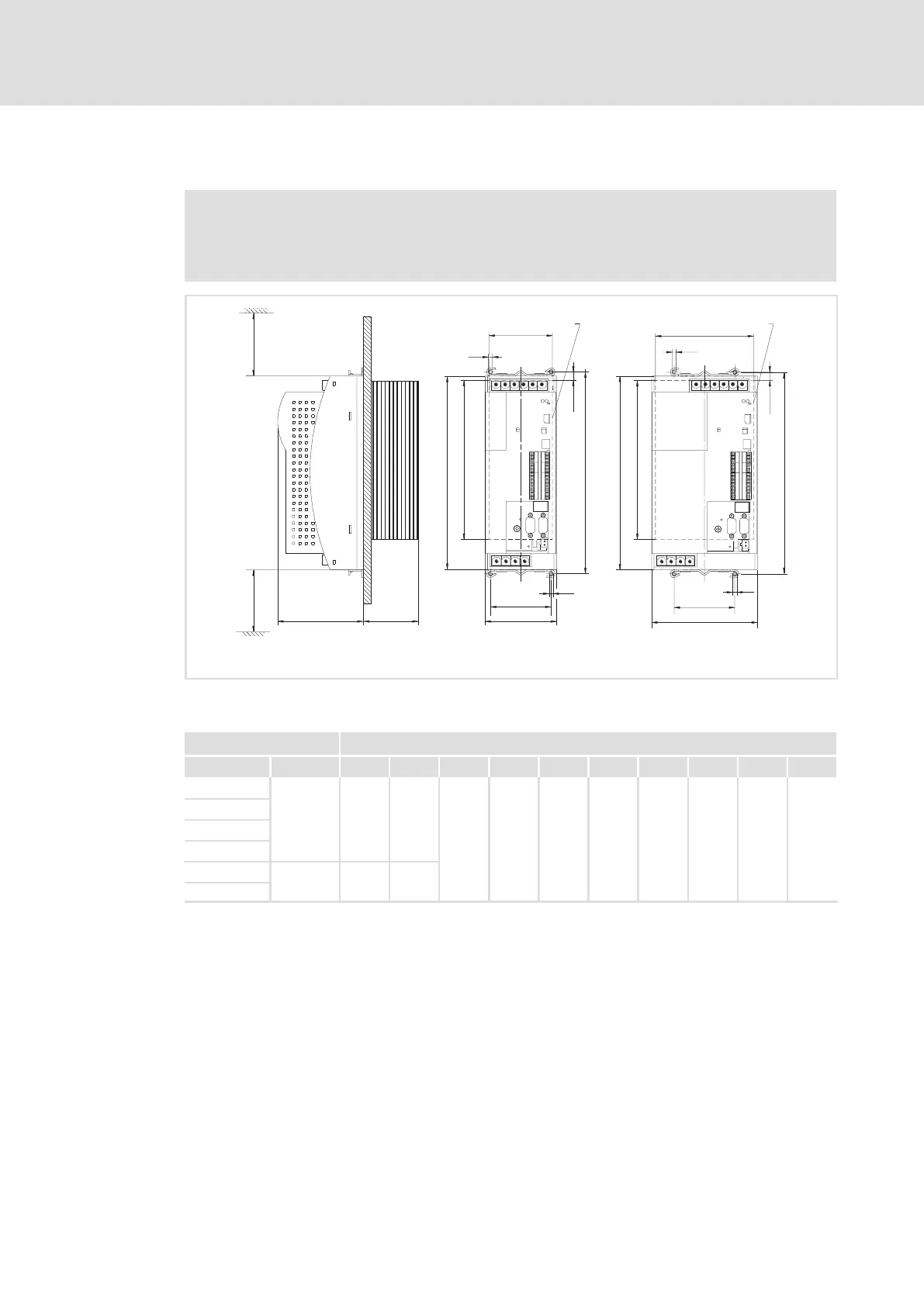

Fig. 4−2 Dimensions for "push−through design"
Z Mounting cutout (a1 x b1), 53
Axis module Dimensions [mm]
Type Size a a1 b b1 c1 d e e1 g h
ECSD004
88,5 78,5
240 197 75 250
109
145
1)
67 M5 10,5
ECSD008
ECSD016
ECSD032
ECSD048
131 121,5
ECSD064
1)
Max. 145 mm, depending on the plugged−on communication module
Application software: S = Speed & Torque P = Posi & Shaft
M = Motion A = Application
