Lenze SMVector 13554876 EDBSV01 EN v21.0 13
Installation

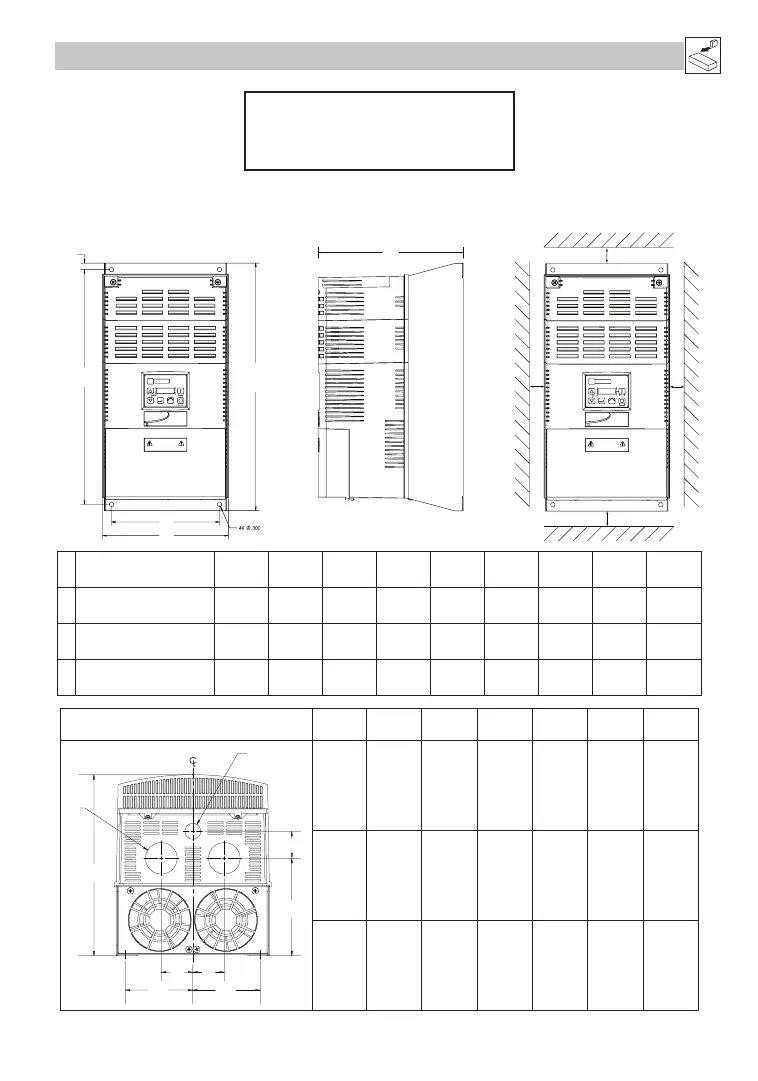

3.1.2 NEMA 1 (IP31) Models > 30HP (22kW)
c
s1
s2
s2
s1
b
a
a1
b1
b2
SMV
SMV
Type
a
in (mm)
a1
in (mm)
b
in (mm)
b1
in (mm)
b2
in (mm)
c
in (mm)
s1
in (mm)
s2
in (mm)
m
lb (kg)
K1
ESV303~~4~~B;
ESV303~~6~~B
8.72 (221) 7.50 (190) 14.19 (360) 13.30 (338) 0.45 (11.4) 10.07 (256) 0.6 (15) 2.0 (50) 24 (10.9)
K2
ESV373~~4~~B;
ESV373~~6~~B
8.72 (221) 7.50 (190) 17.19 (436) 16.30 (414) 0.45 (11.4) 10.07 (256) 0.6 (15) 2.0 (50) 31 (14.1)
K3
ESV453~~4~~B
ESV453~~6~~b
8.72 (221) 7.50 (190) 20.19 (513) 19.30 (490) 0.45 (11.4) 10.07 (256) 0.6 (15) 2.0 (50) 35 (15.9)
Conduit Hole Dimensions Type
N
in (mm)
P
in (mm)
P1
in (mm)
Q
in (mm)
S
in (mm)
S1
in (mm)
P1
P
S1
S
C
Q
N
Q
N
K1 3.75 (95) 5.42 (137) 1.50 (38.1) 1.75 (44.4) 1.75 (44.4) 0.875 (22.2)
K2 3.75 (95) 5.42 (137) 1.50 (38.1) 1.75 (44.4) 1.75 (44.4) 0.875 (22.2)
K3 3.75 (95) 5.42 (137) 1.50 (38.1) 1.75 (44.4) 1.75 (44.4) 0.875 (22.2)
For further assistance, please
visit our SMV Support Portal:
https://lenze.yonyx.com/y/portal/
