Commissioning

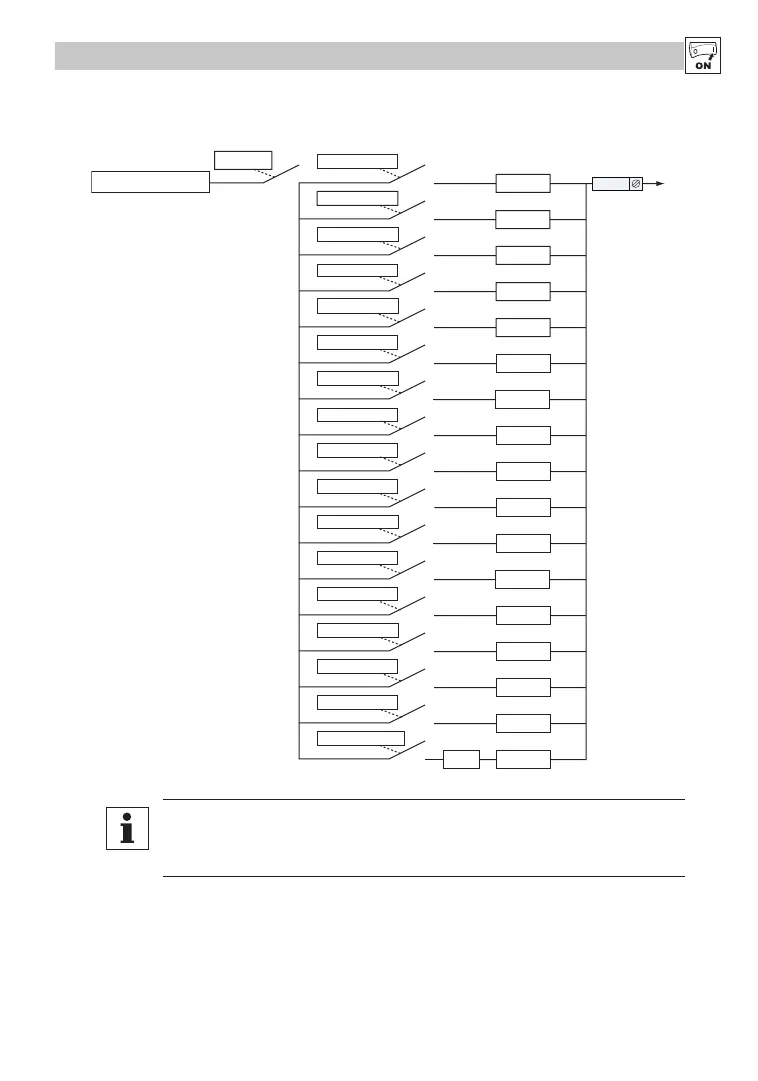

4.5.9.3 Sequencer Status
Segment 1 active
P714
P719
P724
P729
P734
P739
P744
P749
P754
P759
P764
P769
P774
P779
P784
P789
P794
TB30
Segment 16 active
Segment 15 active
Segment 14 active
Segment 13 active
Segment 12 active
Segment 11 active
Segment 10 active
Segment 9 active
Segment 8 active
Segment 7 active
Segment 6 active
Segment 5 active
Segment 4 active
Segment 3 active
Segment 2 active
End Segment active
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Output Voltage
Output Voltage
P150 = 10
Internal 0-10V reference
P792
End
Segment Delay
NOTE
On the “End Segment”, the output voltage is not present until after the end segment delay P792
has expired. On the other segments the output voltage is present on entry to the segment. The
same is true for the digital outputs.
(1) The drive can only be restarted if the error message has been reset.
