26 Lenze SMVector 13554876 EDBSV01 EN v21.0

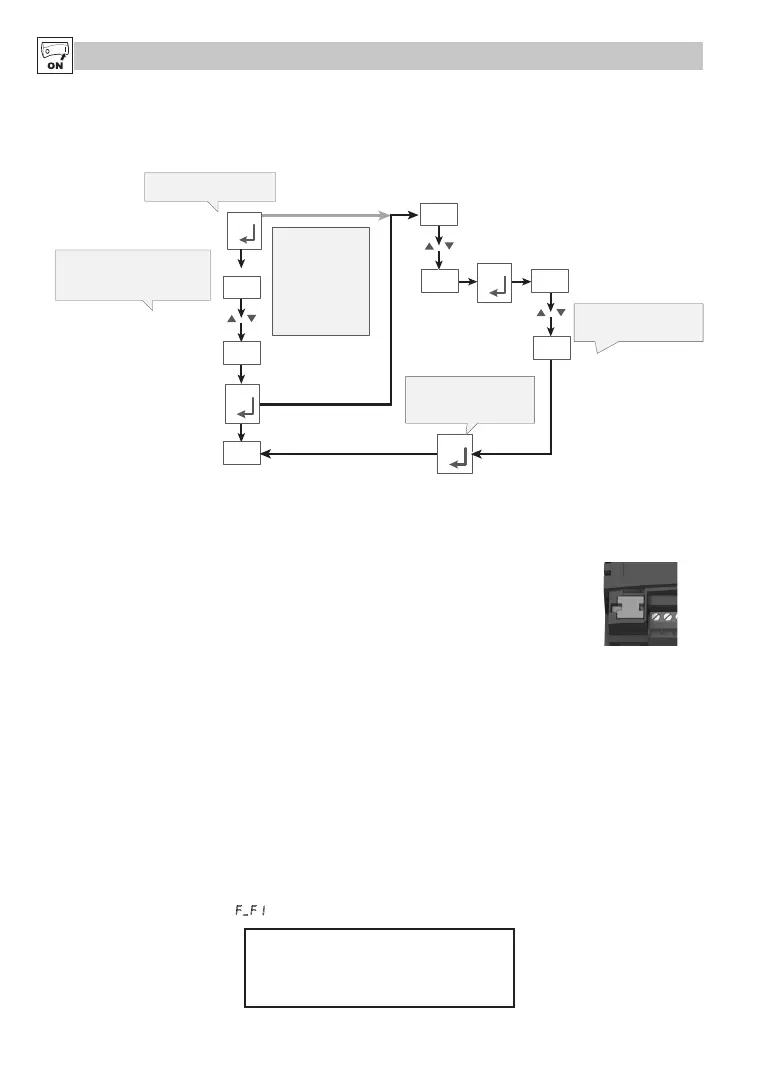

4.3 Parameter Setting
M
Display shows “Pass”, enter default
225 and push M. This means there is
either a default or custom password set.
Default is 0225.
Your parameter value will blink.
This means you can change the
value using the up/down arrows.
Mode/Enter button. To enter your
parameters press this button.
Parameters
Parameter value
V0106
Up and down arrows
on the keypad.
PASS
0225
P100
P104 20.0
12.0
STOP
Some drives do not
have a required
password to access
the parameters
(units built after
2010 have no default
password, default
parameter P194 is 0.
When mode is pressed
P100 will be displayed
M
M
M
Pressing the Mode/Enter button
after changing a parameter will
set the value and bring you back
to the main screen.
4.4 Electronic Programming Module (EPM)
The EPM contains the drives operational memory. Parameter settings are stored in the
EPM and setting changes are made to the “User settings” in the EPM.
An optional EPM Programmer (model EEPM1RA) is available that allows:
• An EPM to be copied directly to another EPM.
• An EPM to be copied to the memory of the EPM Programmer.
• Stored files can be modified in the EPM Programmer.
• Stored files can be copied to another EPM.
EPM Module
in SMV Drive
As the EPM Programmer is battery operated, parameter settings can be copied to an EPM and inserted into a drive
without power being applied to the drive. This means that the drive will be fully operational with the new settings on
the next application of power.
Additionally, when the drives parameter settings are burned into an EPM with the EPM Programmer, the settings are
saved in two distinct locations; the “User settings” and the “OEM default settings”. While the User settings can be
modified in the drive, the OEM settings cannot. Thus, the drive can be reset not only to the “factory” drive default
settings (shown in this manual), but can be set to the Original Machine settings as programmed by the OEM.
The user area contents of the EPM are what are copied into the OEM space by the EPM programmer. When parameter
modifications are made to the drive and then a copy made via the EPM Programmer, these are the settings that will
be available by the OEM selections from P199. The EPM Programmer is the only way to load the OEM area of the EPM.
While the EPM can be removed for copying or to use in another drive, it must be installed for the drive to operate (a
missing EPM will trigger an F.F1 fault)
