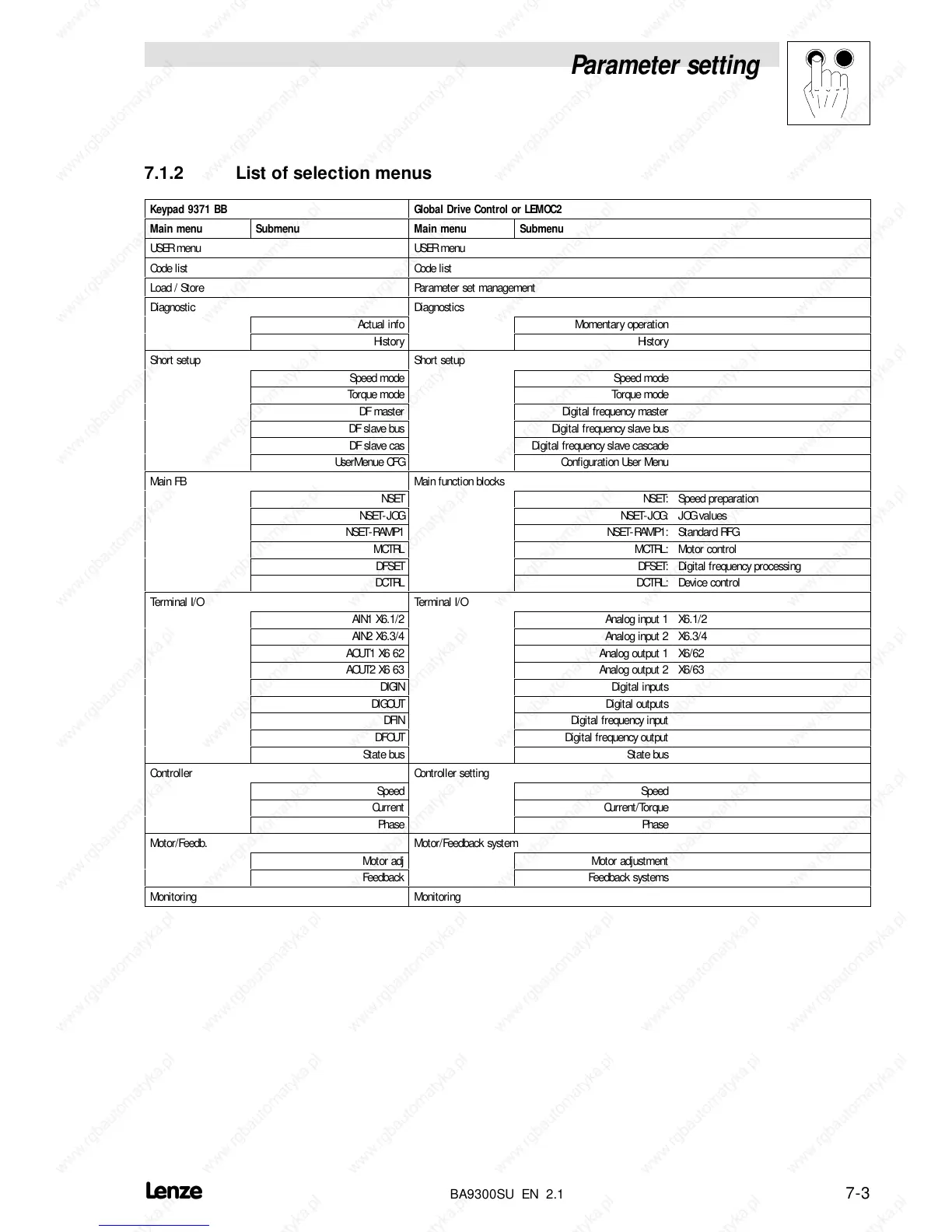

7.1.2 List of selection menus
Keypad 9371 BB Global Drive Control or LEMOC2
Main menu Submenu Main menu Submenu
USER menu USER menu
Code list Code list
Load / Store Parameter set management
Diagnostic Diagnostics
Actual info Momentary operation
History History
Short setup Short setup
Speed mode Speed mode
Torque mode Torque mode
DF master Digital frequency master
DF slave bus Digital frequency slave bus
DF slave cas Digital frequency slave cascade
UserMenue CFG Configuration User Menu
Main FB Main function blocks
NSET NSET: Speed preparation
NSET-JOG NSET-JOG: JOG values
NSET-RAMP1 NSET-RAMP1: Standard RFG
MCTRL MCTRL: Motor control
DFSET DFSET: Digital frequency processing
DCTRL DCTRL: Device control
Te rmina l I/O Te rmina l I/O
AIN1 X6.1/2 Analog input 1 X6.1/2
AIN2 X6.3/4 Analog input 2 X6.3/4
AOUT1X662 Analog output 1 X6/62
AOUT2X663 Analog output 2 X6/63
DIGIN Digital inputs
DIGOUT Digital outputs
DFIN Digital frequency input
DFOUT Digital frequency output
State bus State bus
Controller Controller setting
Speed Speed
Current Current/Torque
Phase Phase
Motor/Feedb. Motor/Feedback system
Motor adj Motor adjustment
Feedback Feedback systems
Monitoring Monitoring
