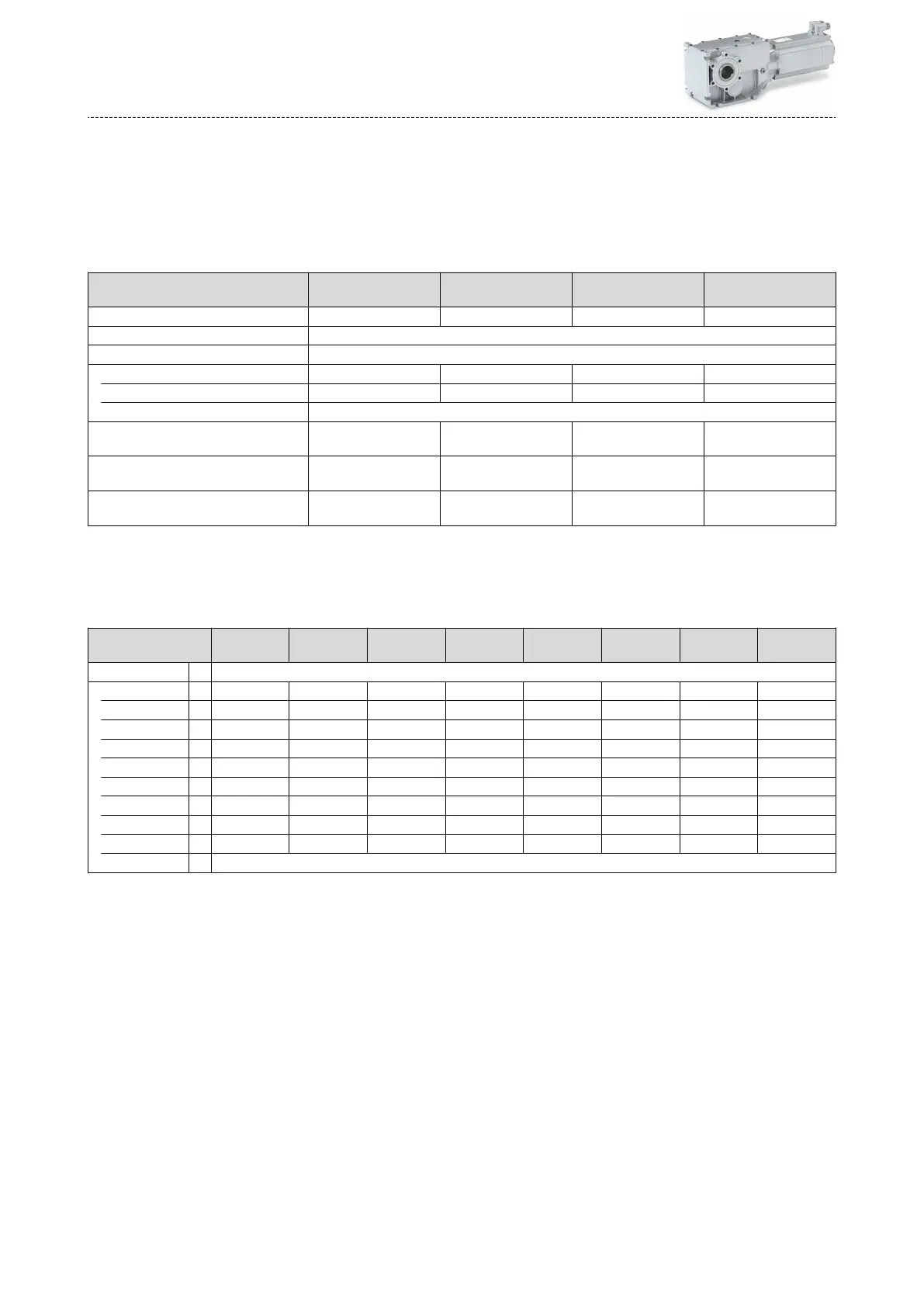

Lubricants
The following gearboxes are lubricated for life:
•
g500-B45
•
g500-B110
•
g500-B240
Recommended lubricants:
Lubricant CLP HC 220 CLP HC 320 CLP HC 46
USDA H1
CLP HC 220
USDA H1
Ambient temperature -30 … +40 °C -20 … +50 °C -30 … +10 °C -20 … +40 °C
Specicaon Synthec oil (polyalfaolens basis)
Changing interval
Operang hours 25000 25000 16000 16000
Not later than aer 4 years 4 years 3 Jahren 3 Jahren
At oil temperature 70 C°
Fuchs Renolin Unisyn
XT 220
Renolin Unisyn
XT 320
Cassida Fluid
GL 220
Klüber Klübersynth
GEM4-220 N
Klübersynth
GEM4-320 N
Klüberoil Summit
HYSYN FG-46
Klüberoil
4 UH1-220 N
SHELL Shell Omala
S4 GXV 220
Shell Omala
S4 GXV 320
Lubricant amounts for stocking
All lubricant amounts are reference values for a change of lubricant. They serve stocking
purposes, for example.
The exact values can be found on the nameplate.
Mounng posion M1 (A) M2 (D) M3 (B) M4 (C) M5 (E) M6 (F) M1-M6
(A-F)
M1, M5, M6
(AEF)
Gearboxes
g500-B45 l 0.4 0.4 0.4 0.4 0.4 0.4 0.4 -
g500-B110 l .3 0.6 0.7 .9 0.5 0.4 - 0.5
g500-B240 l .9 1.2 1.3 1.8 1.4 1.0 - 1.4
g500-B450 l .9 1.6 1.9 2.3 1.8 1.7 - 1.8
g500-B600 l 1.4 2.3 2.7 3.2 2.6 2.6 - -
g500-B820 l 1.9 2.8 3.4 4.2 3.2 2.7 - -
g500-B1500 l 3.8 5.7 6.4 8.4 5.9 3.9 - -
g500-B2700 l 6.0 9.0 10.0 12.7 8.5 9.5 - -
g500-B4300 l 9.5 11.5 16.5 21.0 14.0 16.0 - -
Pre-stage l 0.4
4Gearbox with pre-stage ^ 115
Informaon on project planning
Final conguraon
Lubricants
32
