Lenze g500-H Series User Manual

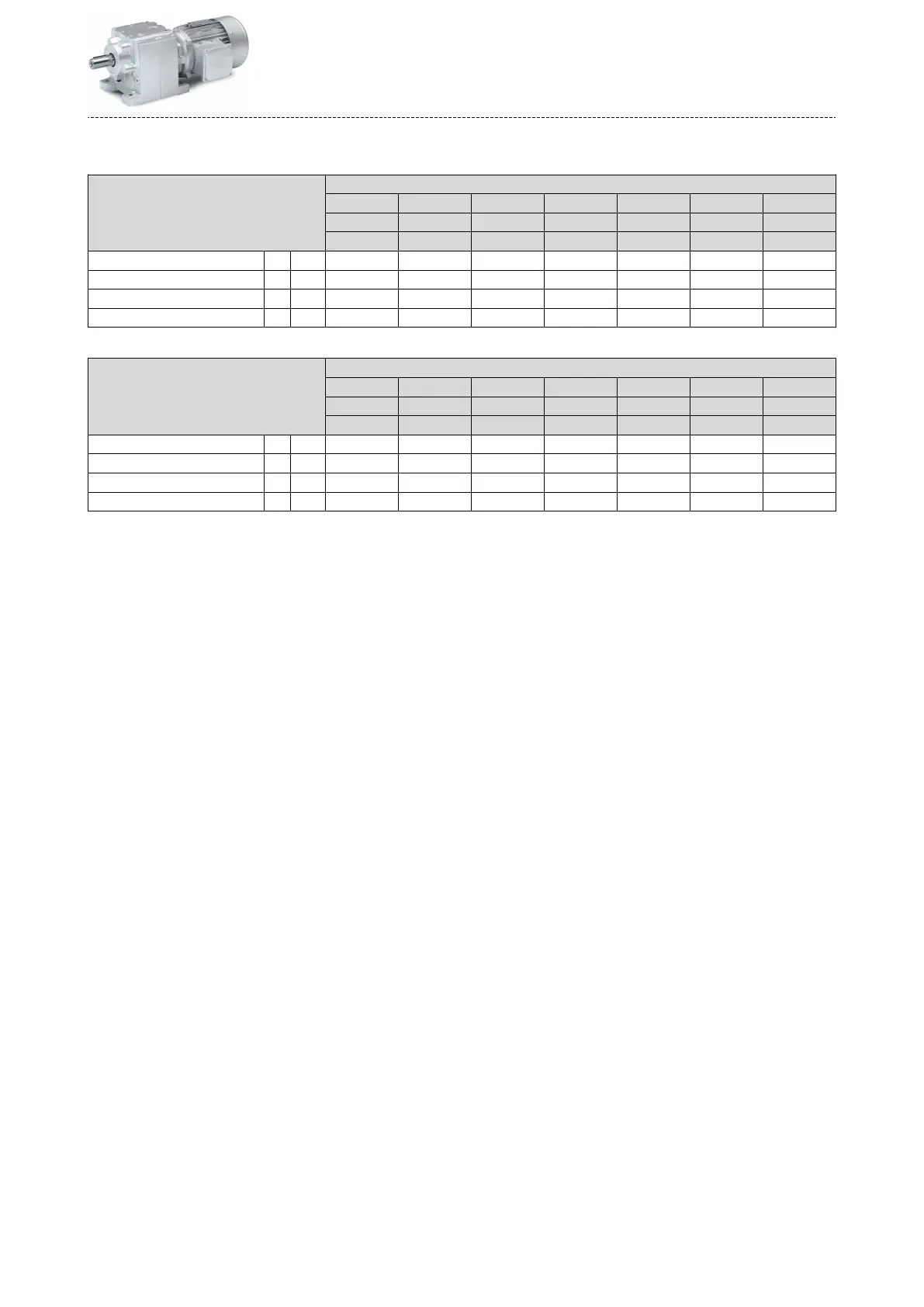

Addional lengths
Self-venlated motors
Motor MF☐MA☐☐
063-32 071-32 080-32 090-32 100-12 112-22 132-12
063-42 071-42 080-42 100-32 132-22
132-32
Without feedback/brake Δ L mm 0 0 0 0 0 0 0
Brake Δ L [mm] 40 52 73 68 76 90 80
Feedback Δ L [mm] 56 51 111 87 81 80 103
Brake + feedback Δ L [mm] 103 96 111 105 101 120 125
Forced venlated motors
Motor MF☐MA☐☐
063-32 071-32 080-32 090-32 100-12 112-22 132-12
063-42 071-42 080-42 100-32 132-22
132-32
Without feedback/brake Δ L [mm] 128 128 128 128 109 102 115
Brake Δ L [mm] 170 165 183 181 170 183 202
Feedback Δ L [mm] 128 128 128 128 109 183 202
Brake + feedback Δ L [mm] 170 165 183 181 170 183 202
Technical data
Dimensions
Addional lengths
119

Lenze g500-H Series Specifications

General

Series	g500-H
Mounting type	Foot-mounted, Flange-mounted
Number of stages	1, 2, 3
Output shaft	Solid shaft, Hollow shaft
Maximum output torque	Up to 18, 000 Nm
Input Voltage	N/A (Gearbox only)
Output Voltage	N/A (Gearbox only)
Output Frequency	N/A (Gearbox only)
Control Modes	N/A (Gearbox only)
Communication Interfaces	N/A (Gearbox only)
