Lenze g500-H Series User Manual

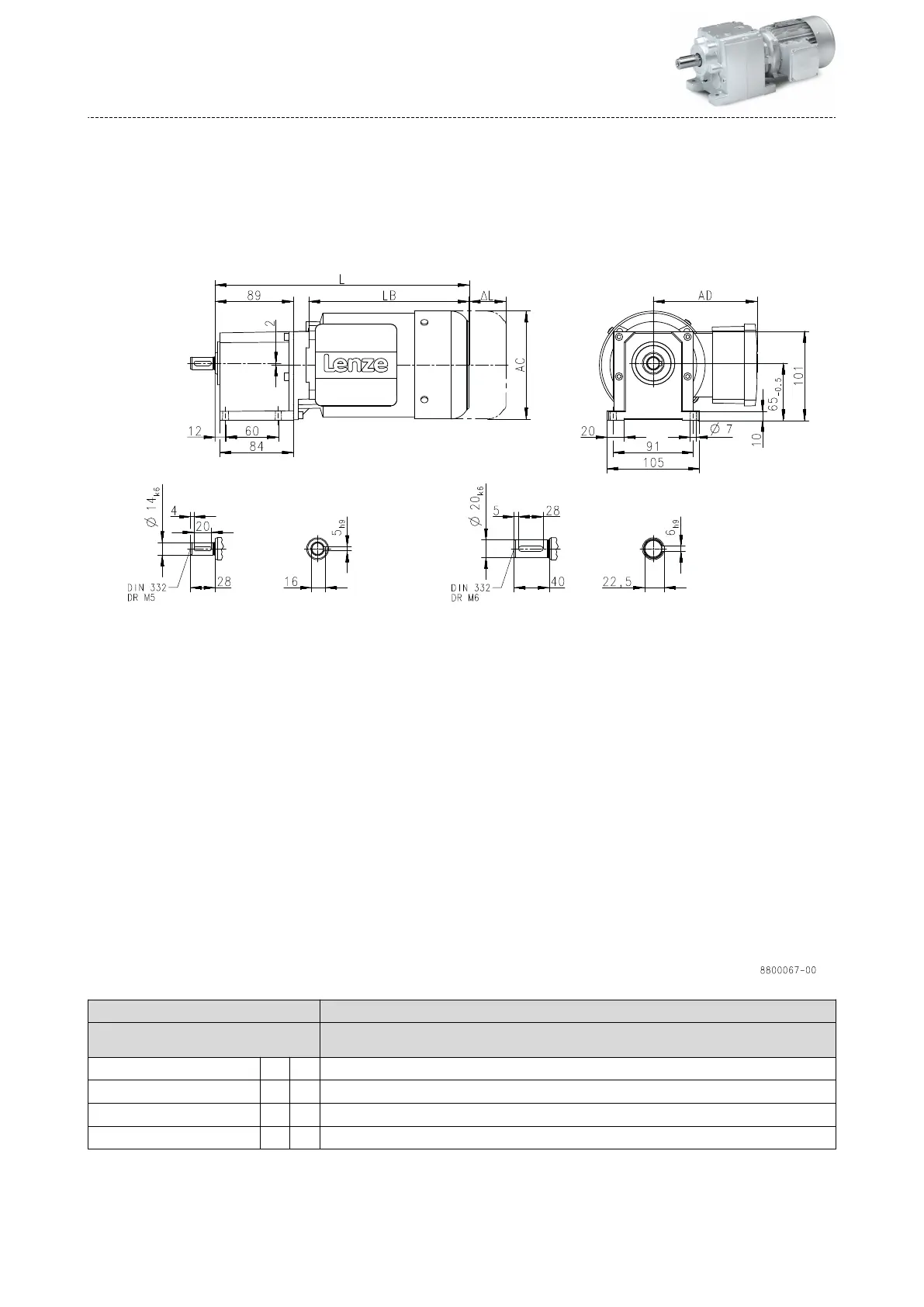

Basic dimensions
g500-H45, 2-stage
Gearbox design: Solid sha with foot (VBR)
The dimensions are also valid for solid sha without keyway Ø20 x 40 (G□□)!
Motor series MFXMA
Motor 063-32
063-42
Total length L mm 291
Motor length LB mm 199
Motor diameter AC mm 123
Motor/connecon distance AD mm 109
Δ L 4Addional lengths ^ 119
Technical data
Dimensions
Basic dimensions
82
