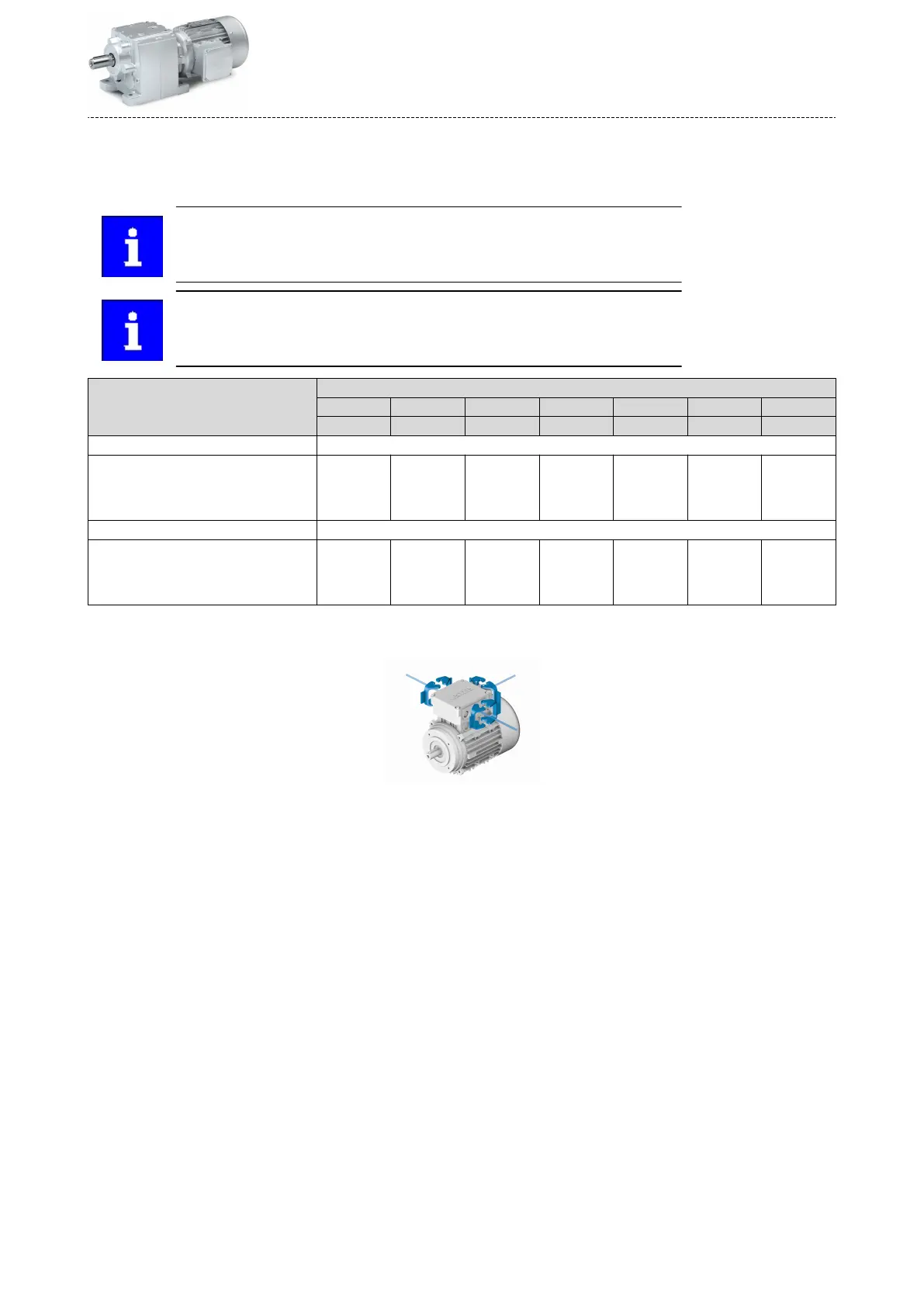

Assignment of the connectors HAN
The power, brake and temperature monitoring can be connected in the HAN connector.
The designs HAN 10E or HAN modular with two power modules (16 A or 40 A) are available.
The HAN 10E connector is only available for motors with the connecon method
Y/Δ.
An addional recer can be connected with HAN modular.
Feedback in conjuncon with the HAN plug connector is only available with the
IG128-24V-H add-on incremental encoder (with 0.5 m cable tail and M12 plug
connector).
Motor MF☐MA☐☐
063-32 071-32 080-32 090-32 100-12 112-22 132-12
063-42 071-42 080-42 100-32 132-22
HAN 10E connector
Connecon:
•
Power
•
Brake
•
Temperature monitoring TK0 or PT1000
● ● ● ● ● - -
HAN modular connector
Connecon:
•
Power
•
Brake
•
Temperature monitoring TK0 or PT1000
● ● ● ● ● - ●
Posions of the connecons
HAN connector posions
R
L
E
Product extensions
Motor connecon
Assignment of the connectors HAN
129
