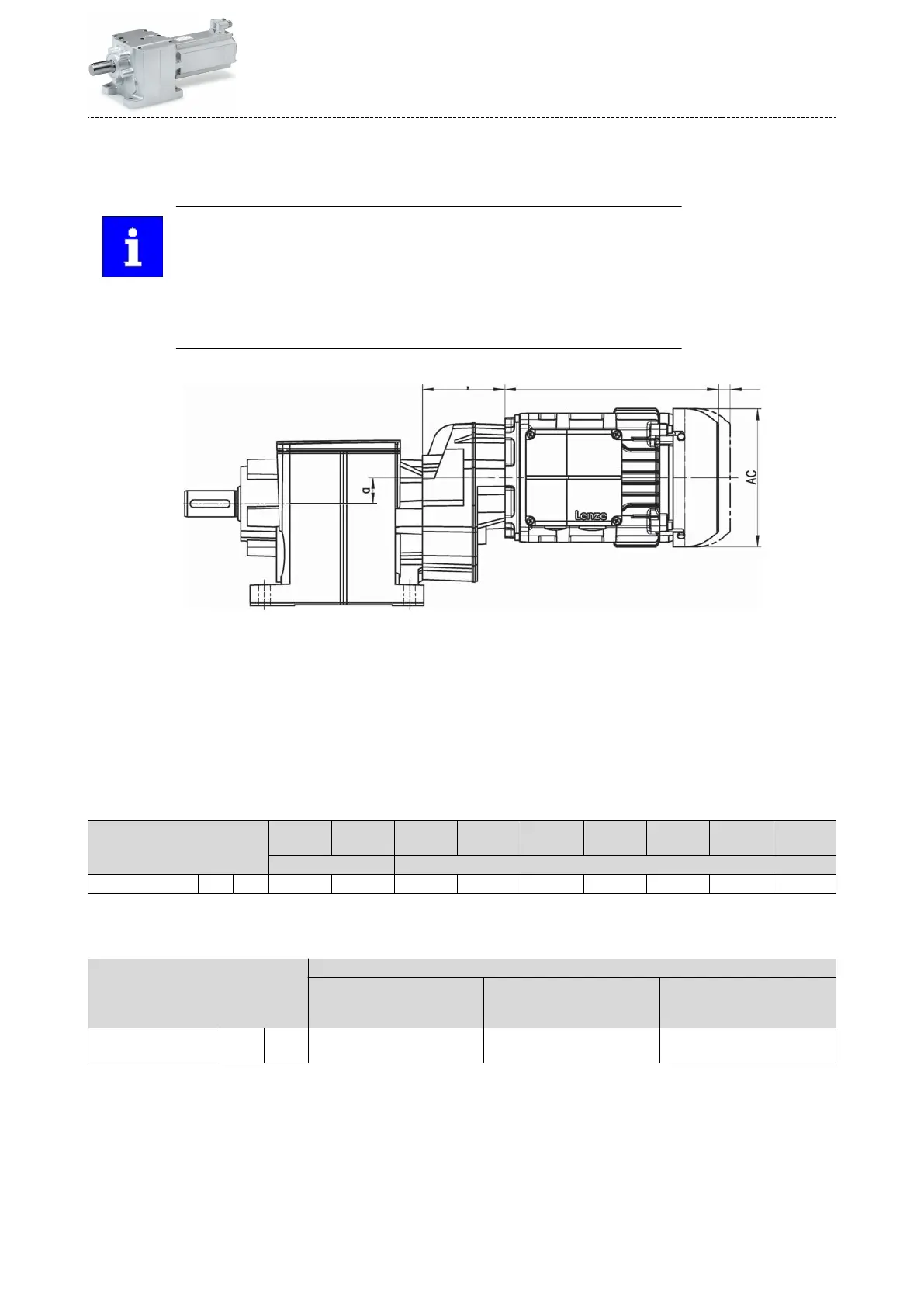

Gearbox with pre-stage
g500-H100 ... H140, 3-stage
g500-H210 ... H3000, 4-stage
The geared motor dimensions can be found in the basic dimensions, except the
total length "L" and the center distance "a".
4Basic dimensions ^ 93
The total length "L" in the basic dimensions is extended by the 93.5 mm of the
pre-stage.
Observe the altered center distance "a" between the gearbox and motor sha.
Gearboxes
g500-H100 g500-H140 g500-H210 g500-H320 g500-H450 g500-H600 g500-H850 g500-
H1500
g500-
H3000
3-stage 4-stage
Center distance a mm 40.2 30 34.8 24.3 29.6 17.6 26.5 28.2 32.5
Addional lengths
Motors
Motor m850-
S120/S3960
S120/M3960
S120/L3960
S140/S3240
S140/M3240
S140/L3240
S190/S3000
S190/M3000
S190/L2520
Spring-applied holding
brake
Δ L mm 46 53 68
Technical data
Dimensions
Gearbox with pre-stage
125
