Mechanical installation
Preparation
Mounting the fixed cover
4
41
Lenze ¯ MA 12.0014 ¯ 5.1

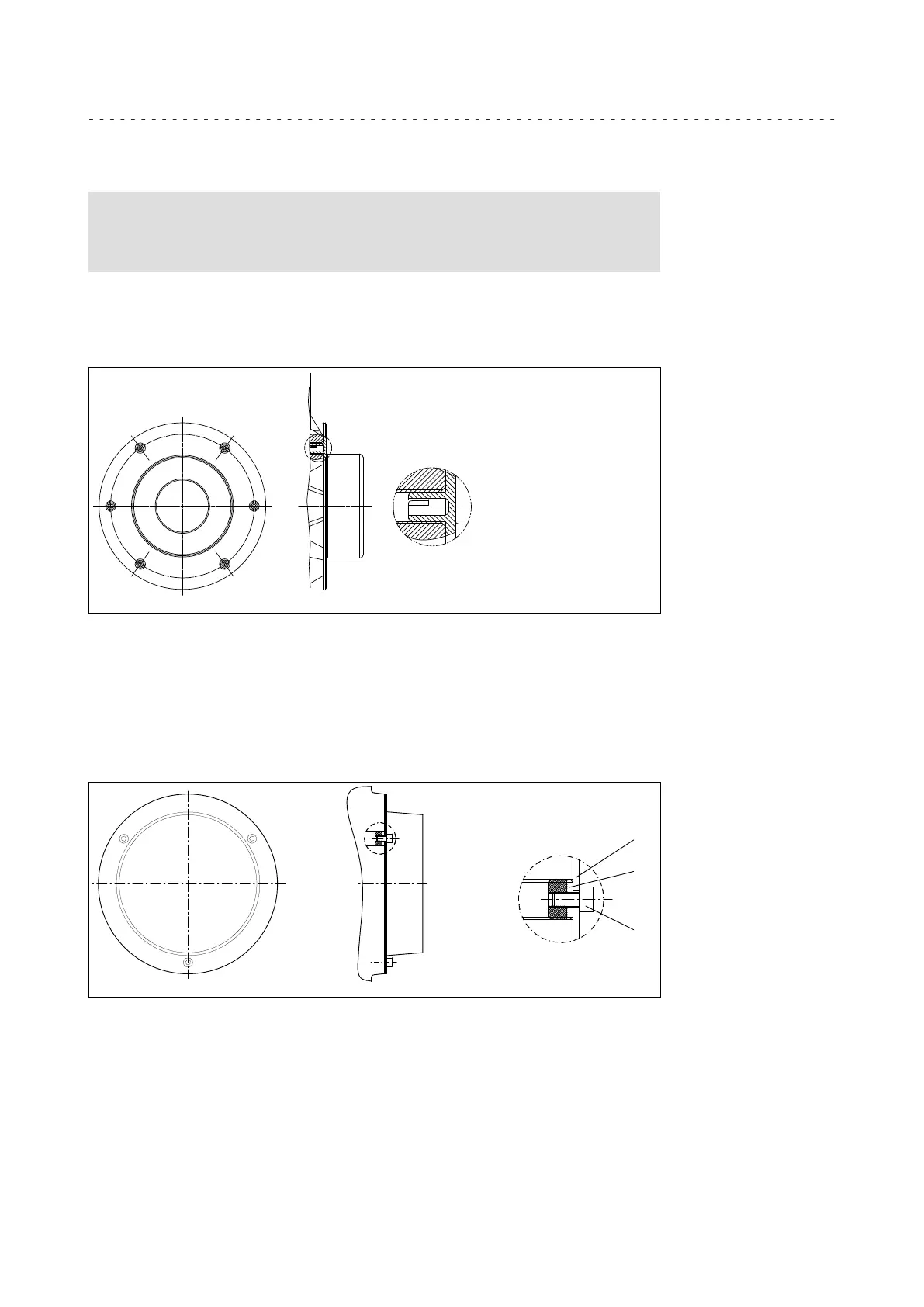

4.3.11 Mounting the fixed cover
) Note!
This cover can be ordered optionally and will then be loosely enclosed
with the shipment, or it is already mounted to the gearbox.
Gearbox size: B45/G50BA045 ... B820/G50BB182
With these sizes, the protective cap is clipped on.
X
X
Gearbox size: B1500/G50BB215 ... B20000/G50BB320
With these sizes, the cover is screwed together with the housing.
Gearbox size: B1500/G50BB215 ... B4300/G50BB243
With these sizes, additional reducing bushs are screwed into the gearbox housing
thread.
2
x
x
1
3
1 Protection cover 3 Reducing bush
2 Cheese head screw
1. Screw reducing bushes (3) into the flange so that they are flush using a
screwdriver.
2. Fasten the protective cap (1) over the reducing bushes (3) on the flange using
cheese head screws (2).
