Maintenance
Maintenance operations
Checking the oil level
7
59
Lenze ¯ MA 12.0014 ¯ 5.1
7.3.3
Checking the oil level
)
Note!
Check the oil level in cold condition!
Check
the oil level by means of the displayed dipsticks. Manufacture them according to
the mounting position.

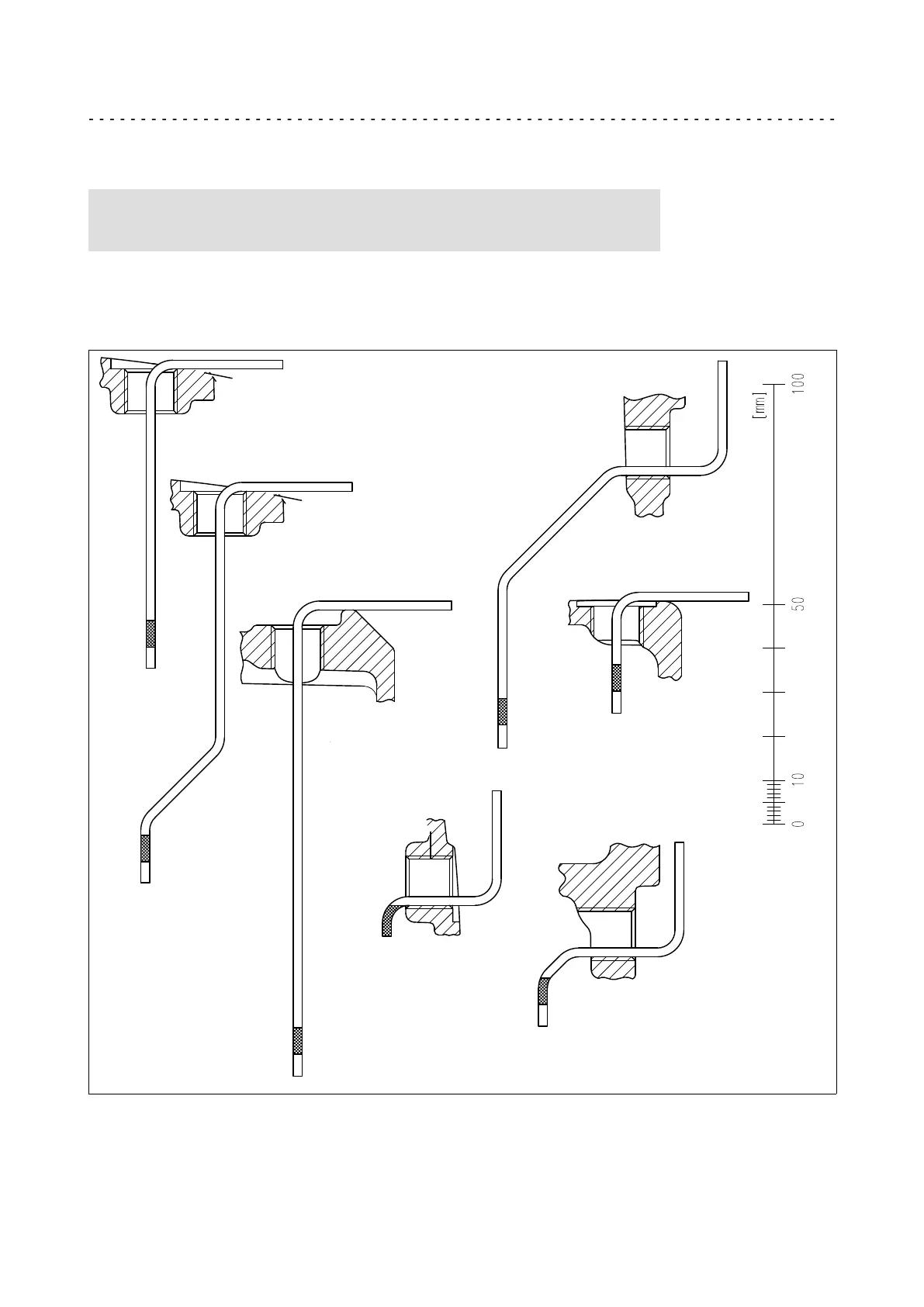

Form template: dipsticks for G50BB124
A, 3-stage
A, 2-stage
B
C
D
E
F
58
60
