Lenze IE2 g500-H User Manual

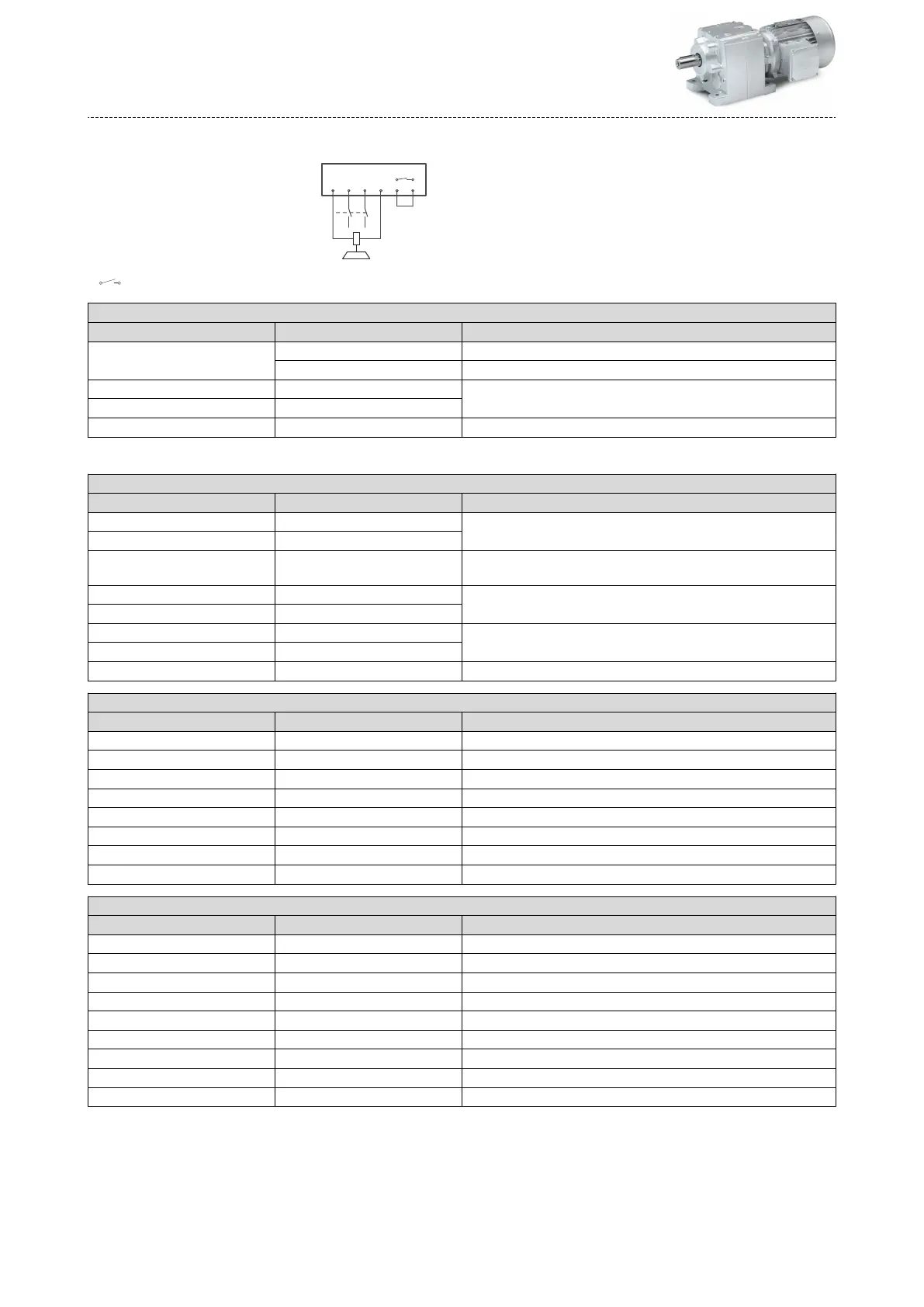

AC brake connecon
1
2
3 4
5
6
-
~ ~
+
Switching contact - DC switching
Terminal box, AC brake via recer
Contact Name Meaning
Tilde
BA1 Mains L1
BA2 Mains N
+ BD1
Holding brake (factory-wired)
- BD2
Schalter Switching contact - DC switching
Feedback connecon
Terminal box, resolver
Contact Name Meaning
B1 +Ref
Transformer windings (reference windings)
B2 -Ref
B3 +VCC ETS
Supply: Electronic nameplate (only for variant with electronic nameplate
ETS)
B4 +COS
Cosine stator windings
B5 -COS
B6 +SIN
Sine stator windings
B7 -SIN
B8 Not assigned
Terminal box, incremental encoder HTL/TTL
Contact Name Meaning
+ + UB Supply +
- GND Mass
A A/+COS Track A / + COS
A¯ A¯/Ref COS Track A inverse /-COS
B B/+SIN Track B / +SIN
B¯ B¯/Ref SIN Track B inverse/-SIN
0 0 Zero track / + RS485
0¯ 0¯ Zero track inverse /-RS485
Terminal box, SinCos absolute value encoder with Hiperface
Contact Name Meaning
B1 + UB Supply +
B2 GND Mass
B3 A Track A / + COS
B4 A¯ Track A inverse /-COS
B5 B Track B / +SIN
B6 B¯ Track B inverse/-SIN
B7 Z Zero track / + RS485
B8 Z¯ Zero track inverse /-RS485
B10 Incremental encoder shield
Product extensions
Motor connecon
Connecon via terminal box
132
