Elektrische Installation
Anschluss für externes Modem
6
EDKMF2181 DE/EN/FR/ES/IT 3.0
29
H1_E_INST-SteckerFederkraftAnschluss FKCT

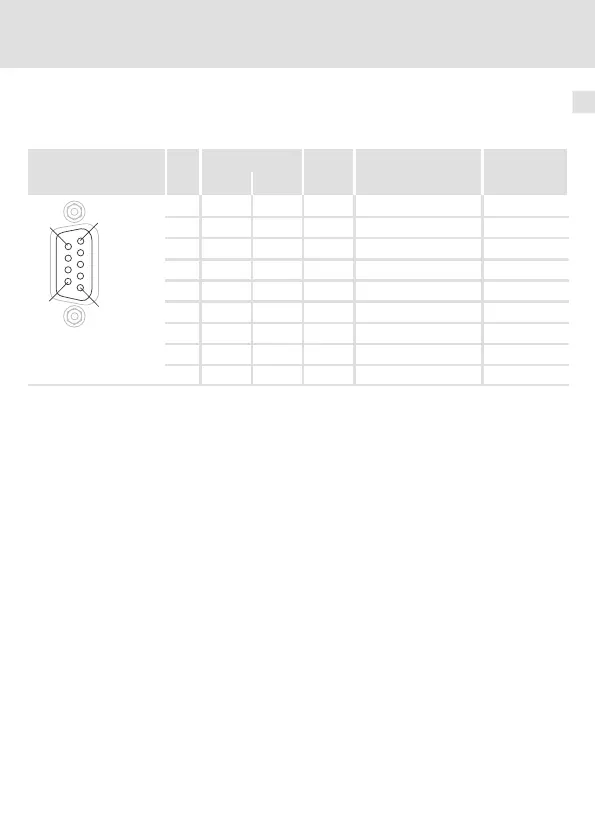

Anschluss für externes Modem
Belegung der RS232-Schnittstelle
Ansicht Bezeichnung
Pin V.24 RS232 Signal Signalname Richtung
1
6
5
9
1 109 CF DCD Data Carrier Detector Ausgang
2 104 BB RD
Received Data
Ausgang
3 103 BA TD
Transmitted Data
Eingang
4 108/2 CD DTR
Data Terminal Ready
Eingang
5 102 AB SG
Signal Ground
-
6 107 CC DSR
Data Set Ready
Ausgang
7 105 CA RTS
Request To Send
Eingang
8 106 CB CTS
Clear To Send
Ausgang
9 125 CE -
Ring Indicator
Ausgang
