Lenze L-force Communication ModemCAN EMF2181IB User Manual

Electrical installation
External modem connection
6
EDKMF2181 DE/EN/FR/ES/IT 3.0 59

H1_E_INST-SteckerFederkraftAnschluss FKCT
External modem connection

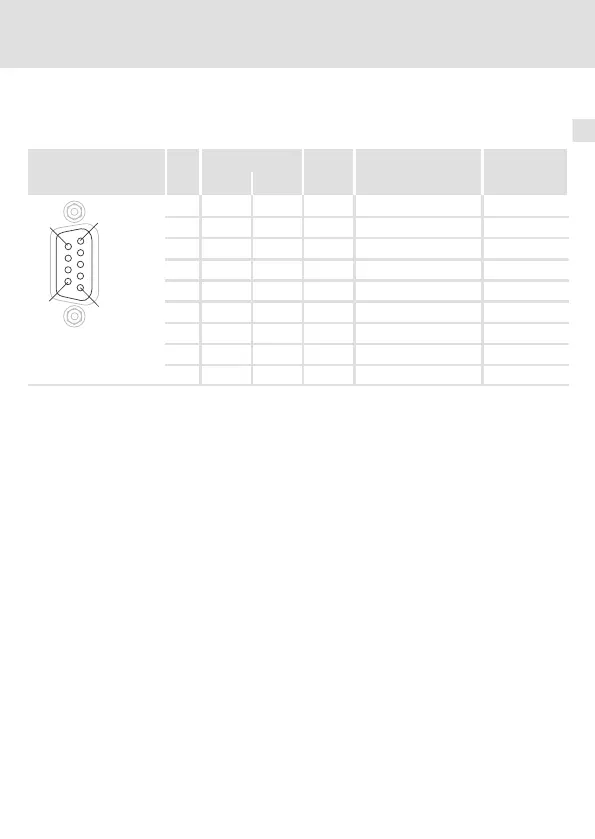

Assignment of the RS232 interface
View Designation
Pin V.24 RS232 Signal Signal name Direction
1
6
5
9
1 109 CF DCD Data Carrier Detector Output
2 104 bb RD
Data
Output
3 103 BA TD
Transmitted Data
Input
4 108/2 CD DTR
Data Terminal Ready
Input
5 102 from SG
Signal Ground
-
6 107 cc DSR
Data Set Ready
Output
7 105 CA RTS
Request To Send
Input
8 106 CB CTS
Clear To Send
Output
9 125 CE -
Ring Indicator
Output
