Lenze SMD Series User Manual

8
Installation

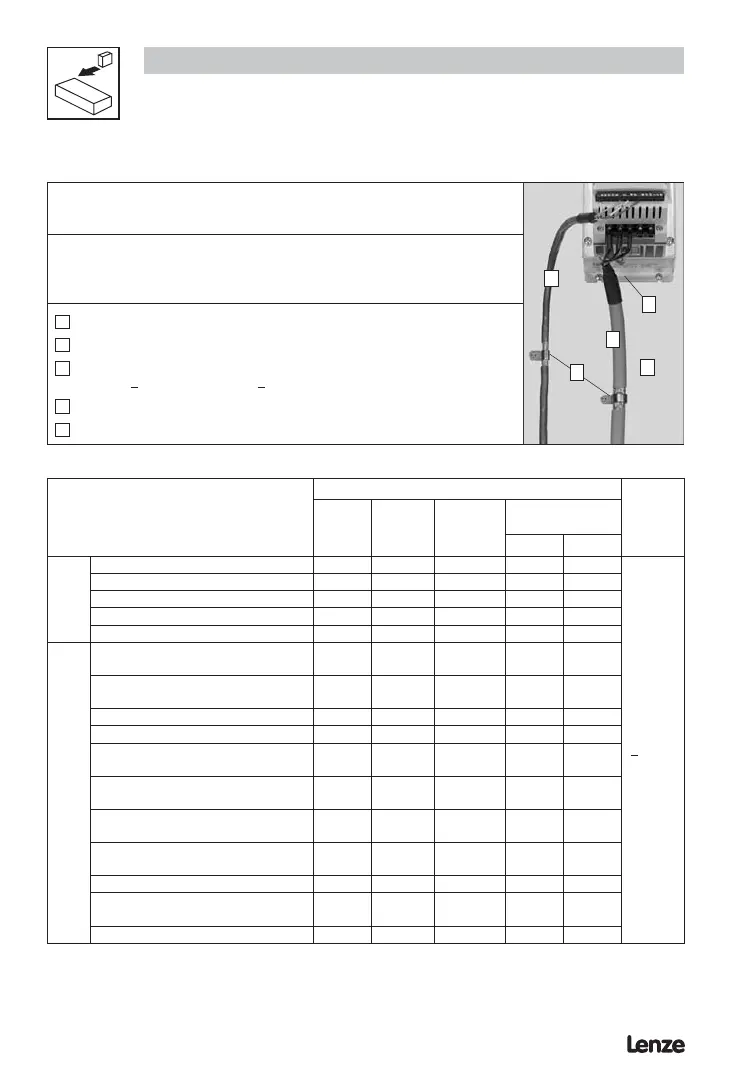

3.2 Electrical installation
3.2.1 Installation according to EMC requirements
EMC
Compliance with EN 61800-3/A11
Noise emission
Compliance with limit value class A according to EN 55011 if installed in a control
cabinet with the appropriate footprint filter and the motor cable length does not
exceed 10m
A
Screen clamps
B
Control cable
C
Low-capacitance motor cable
(core/core < 75 pF/m, core/screen < 150 pF/m)
D
Electrically conductive mounting plate
E
Filter
3.2.2 Fuses/cable cross-sections
Type
Recommendations
(1)
E.l.c.b.
(2)
Fuse Miniature
circuit
breaker
(5)
Fuse
(3)
or
Breaker
(6)
Input Power Wiring
(L1, L2/N, L3, PE)
(N. America)
[mm²] [AWG]
1/N/PE
ESMD371C2YXA M10 A C10 A 10 A 1.5 14
> 30 mA
ESMD751C2YXA M16 A C16 A 15 A 2.5 14
ESMD112C2YXA M20 A C20 A 20 A 2.5 12
ESMD152C2YXA M25 A C25 A 25 A 2.5 12
ESMD222C2YXA M30 A C30A 30 A 4 10
3/PE
ESMD371C2YXA ... ESMD751C2YXA
ESMD371C4TXA ... ESMD222C4TXA
M10 A C10 A 10 A 1.5 14
ESMD112C2YXA, ESMD152C2YXA
ESMD302C4TXA
M12 A C12 A 12 A 1.5 14
ESMD222C2YXA M16 A C16 A 15 A 2.5 12
ESMD402C4TXA M16 A C16 A 15 A 2.5 14
ESMD302C2TXA
ESMD552C4TXA
M20 A C20 A 20 A 2.5 12
ESMD402C2TXA
ESMD752C4TXA
M25 A C25 A 25 A 4 10
ESMD552C2TXA
ESMD113C4TXA
M35 A C35 A 35 A 6 8
ESMD752C2TXA
ESMD153C4TXA
M45 A C45 A 45 A 10 8
ESMD183C4TXA M60 A C60 A 60 A 16 6
ESMD113C2TXA
ESMD223C4TXA
M70 A C70 A 70 A 16 6
ESMD153C2TXA M90 A C90 A 90 A 16 4
(1) Observe the applicable local regulations.
(2) Pulse-current or universal-current sensitive earth leakage circuit breaker.
(3) UL Class CC or T fast-acting current-limiting type fuses, 200,000 AIC, required. Bussman KTK-R, JJN, JJS or equivalent.
(4) Connection without end ferrules or with attached pin end connectors.
(5) Installations with high fault current due to large supply mains may require a type D circuit breaker.
(6) Thermomagnetic type breakers preferred.
Tmd005
B
C
D
A
E
